ABB

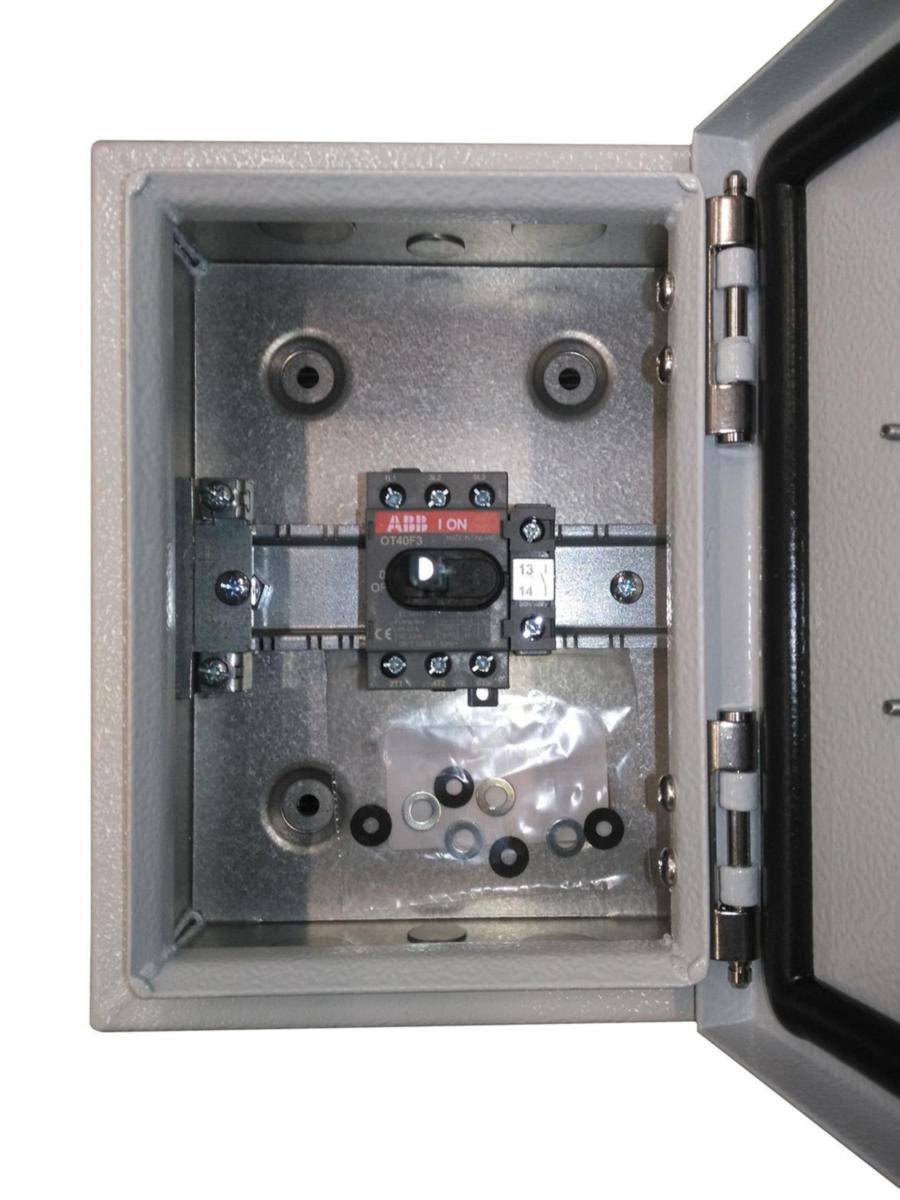

Safety switch OT 3-pole steel plate casing 16-90 A
SAFETY SWITCH PLATE 3-POL OTL16T3B
Article number: Suppl. article no:
3140550
1SCA022571R9150
to see price and stock
With FL 13 cable entry top and bottom.
Additional auxiliary contacts can be installed in the safety switch instead of supplied in standard version.
Additional auxiliary contacts can be installed in the safety switch instead of supplied in standard version.
- Article number: 3140550
- Suppl. article no: 1SCA022571R9150
- Ean no: 6417019184579
- Material class QO1300
Technical data
- Type: OTL 16T3B
- Design: Selector handle
- Rated permanent current at AC-23, 400 V: 16 A
- Rated permanent current Iu: 40 A
- Number of poles: 3
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 0
- Version as main switch: Yes
- Version as maintenance-/service switch: Yes
- Version as safety switch: Yes
- Max. rated operation voltage Ue AC: 750 V
- Rated operation power at AC-23, 400 V: 7.5 kW
- Rated permanent current at AC-21, 400 V: 32 A
- Version as emergency stop installation: No
- Degree of protection (IP), front side: IP65
- Number of switches: 1
- Rated operating voltage: 750 V
- Number of auxiliary contacts as change-over contact: 0
- Colour control element: Black
- Width: 200 mm
- Height: 150 mm
- Depth: 100 mm
- Device construction: Complete device in housing
- Type of electrical connection of main circuit: Cable clamp
- Motor drive integrated: No
- Interlockable: Yes
- Suitable for front mounting 4-hole: No
- Suitable for front mounting centre: No
- Suitable for floor mounting: No
- Suitable for distribution board installation: Yes
- Suitable for intermediate mounting: No
- Motor drive optional: No
- Voltage release optional: No
- Type of control element: Long rotary handle
- Version as reversing switch: No
- Rated short-time withstand current lcw: 0.5 kA
- Switching power at 400 V: 7.5 kW
- REACH Date: 2023-01-18
- REACH Information obligation: No
