Switch disconnector OT25G1
OT25G1-3BS SWITCH DISCONNECTOR
Article number: Suppl. article no:
3172219
1SCA163417R1001
to see price and stock

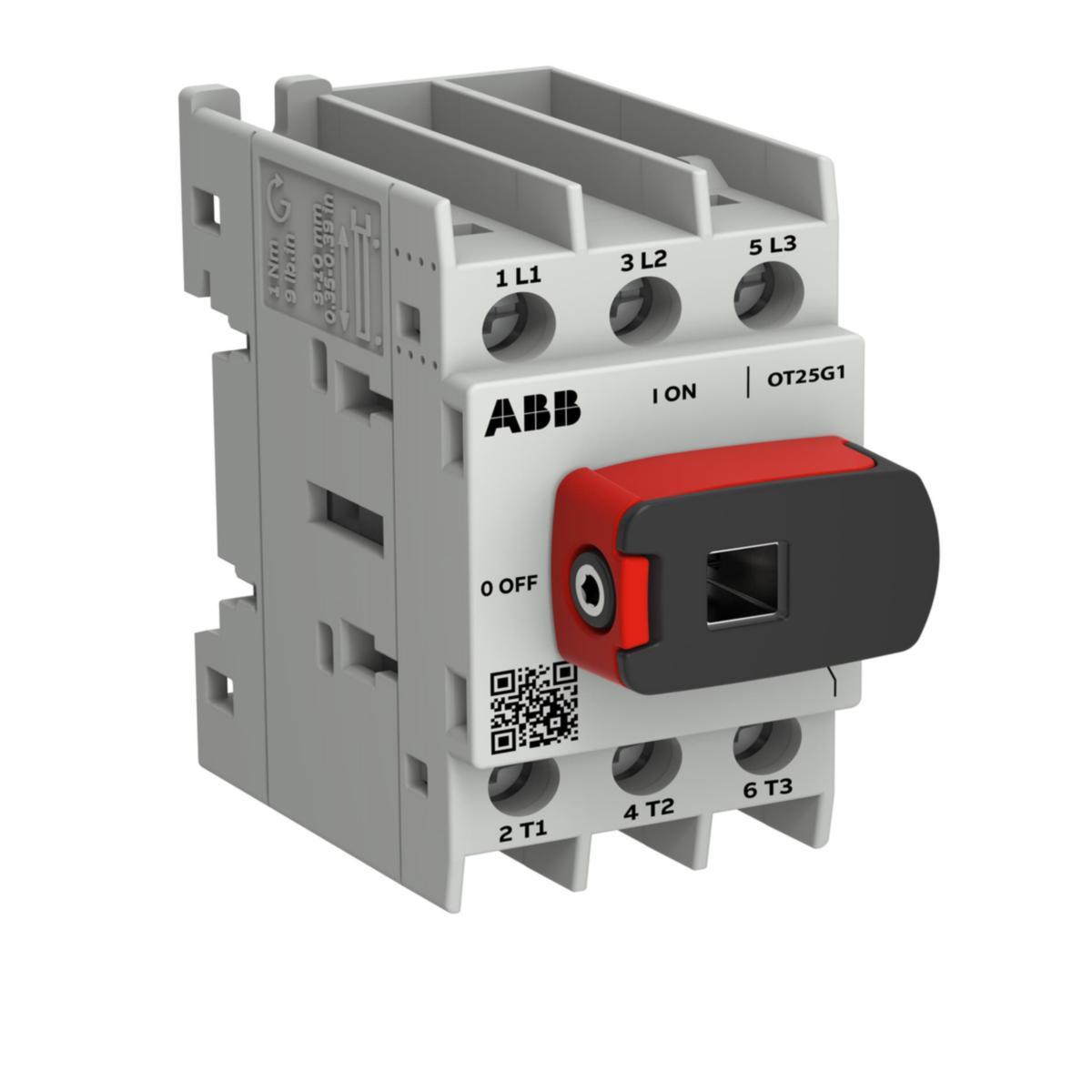

Switch disconnector OT25G1
- Article number: 3172219
- Suppl. article no: 1SCA163417R1001
- Ean no: 6417019931043
- Material class QO1310
Technical data
- Packagin Size: 1 PCS/10 PCS
- Type: OT25G1-3BS
- Rated permanent current Iu: 25 A
- Number of poles: 3
- Rated operating voltage: 800 V
- Max. rated operation voltage Ue AC: 800 V
- Version as main switch: Yes
- Version as maintenance-/service switch: Yes
- Version as safety switch: No
- Number of switches: 1
- Version as emergency stop installation: No
- Colour control element: Black
- Rated operation power at AC-23, 400 V: 11 kW
- Rated permanent current at AC-21, 400 V: 25 A
- Rated permanent current at AC-23, 400 V: 25 A
- Number of auxiliary contacts as normally open contact: 0
- Number of auxiliary contacts as change-over contact: 0
- Number of auxiliary contacts as normally closed contact: 0
- Device construction: Complete device in housing
- Type of electrical connection of main circuit: Screw connection
- Motor drive integrated: No
- Interlockable: No
- Suitable for front mounting 4-hole: No
- Suitable for front mounting centre: No
- Suitable for distribution board installation: Yes
- Motor drive optional: No
- Degree of protection (IP), front side: IP20
- Rated short-time withstand current lcw: 0.8 kA
- Voltage release optional: No
- Type of control element: Other
- Version as reversing switch: No
- Degree of protection (NEMA): Other
- Width: 35 mm
- Height: 68 mm
- Depth: 62 mm
- Switching power at 400 V: 11 kW
- Suitable for floor mounting: No
- REACH Date: 2026-02-26
- REACH Information obligation: No
