Kraus & Naimer

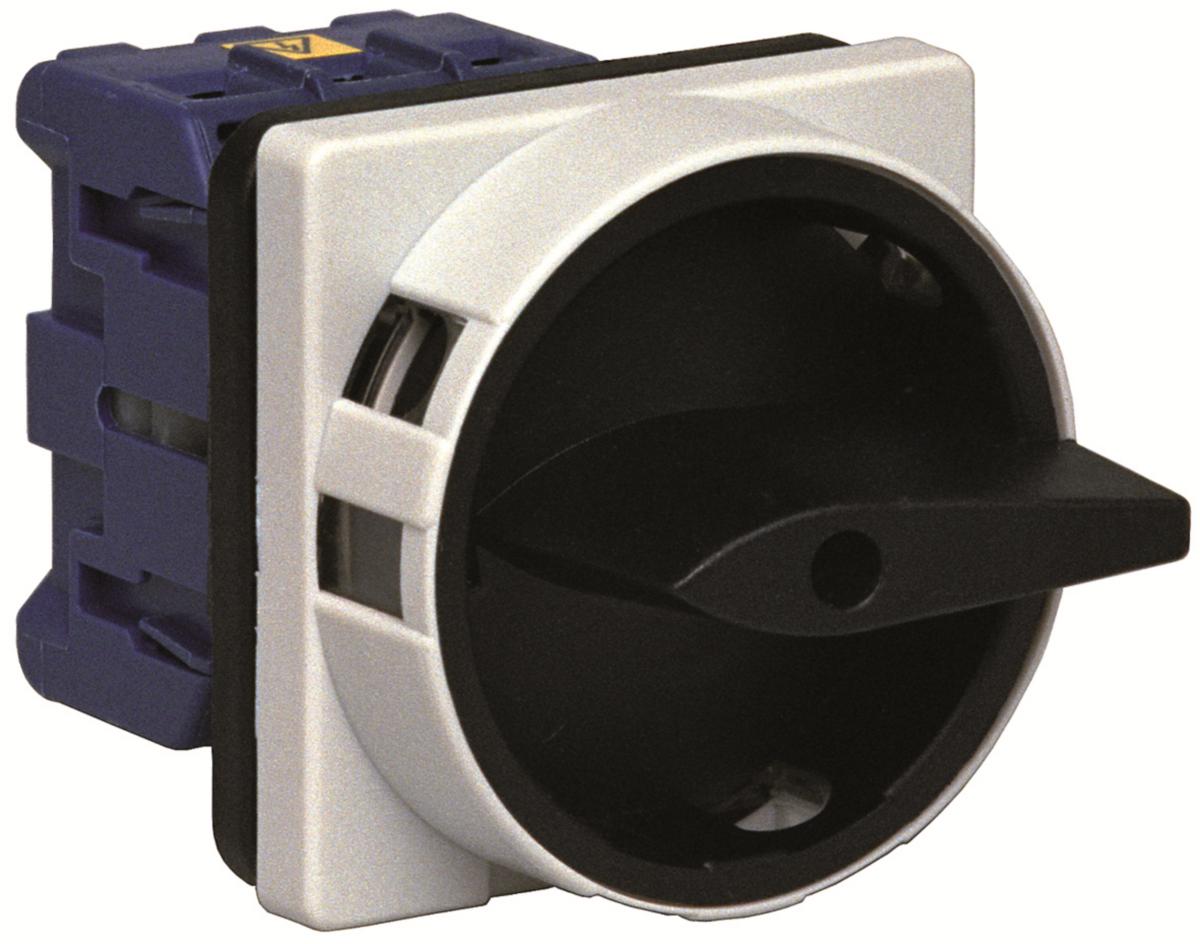

Load disconnector for panel mounting 3-pole IP 66
MAIN SWITCH KG64B T103/01E
Article number: Suppl. article no:
3162705
70010579
to see price and stock
Knob lockable, black/elektro grey.
KG80-KG315 has a guard for incoming cable.
Front size: KG20B-KG100 64x64 mm, KG125-KG315 88x88 mm.
With tube clamps.
KG80-KG315 has a guard for incoming cable.
Front size: KG20B-KG100 64x64 mm, KG125-KG315 88x88 mm.
With tube clamps.
- Article number: 3162705
- Suppl. article no: 70010579
- Ean no: 9004257000043
- Material class QO221B
Technical data
- Type: KG64BT103/01E
- Design: Panel mounting
- Rated permanent current Iu: 63 A
- Number of poles: 3
- Max. rated operation voltage Ue AC: 690 V
- Version as main switch: Yes
- Version as maintenance-/service switch: Yes
- Version as safety switch: Yes
- Version as emergency stop installation: No
- Rated operation power at AC-23, 400 V: 22 kW
- Number of auxiliary contacts as normally open contact: 0
- Number of auxiliary contacts as change-over contact: 0
- Number of auxiliary contacts as normally closed contact: 0
- Device construction: Built-in device fixed built-in technique
- Type of electrical connection of main circuit: Cable clamp
- Motor drive integrated: No
- Interlockable: Yes
- Suitable for front mounting 4-hole: Yes
- Suitable for front mounting centre: Yes
- Degree of protection (IP), front side: IP66
- Type of control element: Wing knob
- Conditioned rated short-circuit current Iq: 15 kA
