Schneider Electric

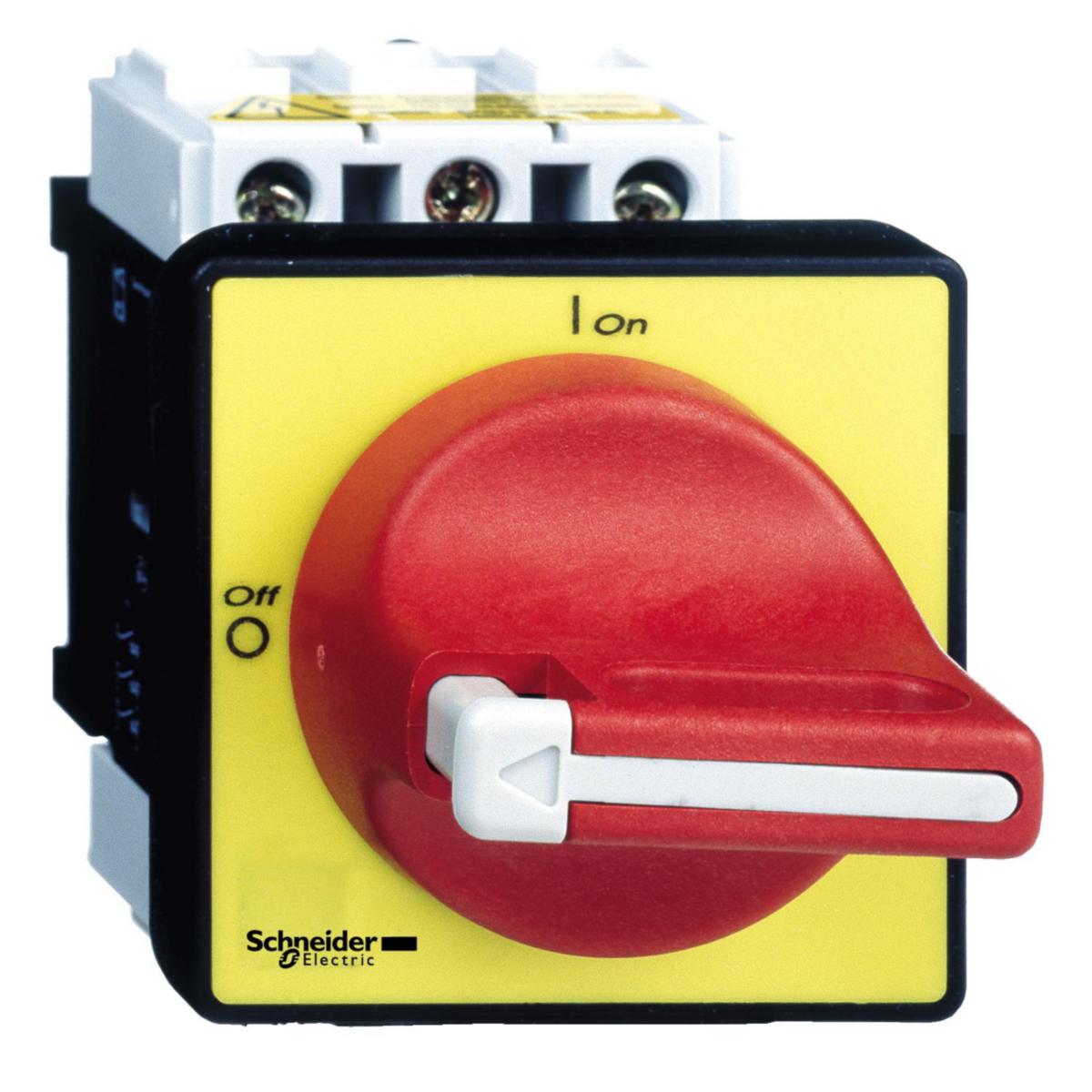

Main switch Tesys Vario
MAIN EMERGENCY SWITCH 40A VCD2
Article number: Suppl. article no:
3157801
VCD2
to see price and stock
For panel mounting.
- Article number: 3157801
- Suppl. article no: VCD2
- Ean no: 3389110724899
- Material class QO2910
Technical data
- Type: VCD2
- Design: Single hole mounting Ø22.5
- Rated permanent current Iu: 40 A
- Number of poles: 3
- Rated operating voltage: 690 V
- Max. rated operation voltage Ue AC: 690 V
- Version as main switch: Yes
- Version as maintenance-/service switch: No
- Version as safety switch: No
- Number of switches: 1
- Version as emergency stop installation: Yes
- Rated operation power at AC-3, 400 V: 11 kW
- Colour control element: Red
- Rated operation power at AC-23, 400 V: 15 kW
- Rated permanent current at AC-21, 400 V: 40 A
- Rated permanent current at AC-23, 400 V: 29 A
- Number of auxiliary contacts as normally open contact: 0
- Number of auxiliary contacts as change-over contact: 0
- Number of auxiliary contacts as normally closed contact: 0
- Device construction: Built-in device fixed built-in technique
- Type of electrical connection of main circuit: Screw connection
- Motor drive integrated: No
- Interlockable: Yes
- Suitable for front mounting 4-hole: No
- Suitable for front mounting centre: Yes
- Suitable for floor mounting: No
- Suitable for distribution board installation: No
- Suitable for intermediate mounting: No
- Motor drive optional: No
- Degree of protection (IP), front side: IP65
- Rated short-time withstand current lcw: 0.48 kA
- Voltage release optional: No
- Type of control element: Short rotary handle
- Version as reversing switch: No
- Conditioned rated short-circuit current Iq: 10 kA
- Width: 60 mm
- Height: 74 mm
- Depth: 121 mm
- Switching power at 400 V: 0 kW
- With pre-assembled cabling: No
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
