Siemens
Main switch 3LD2

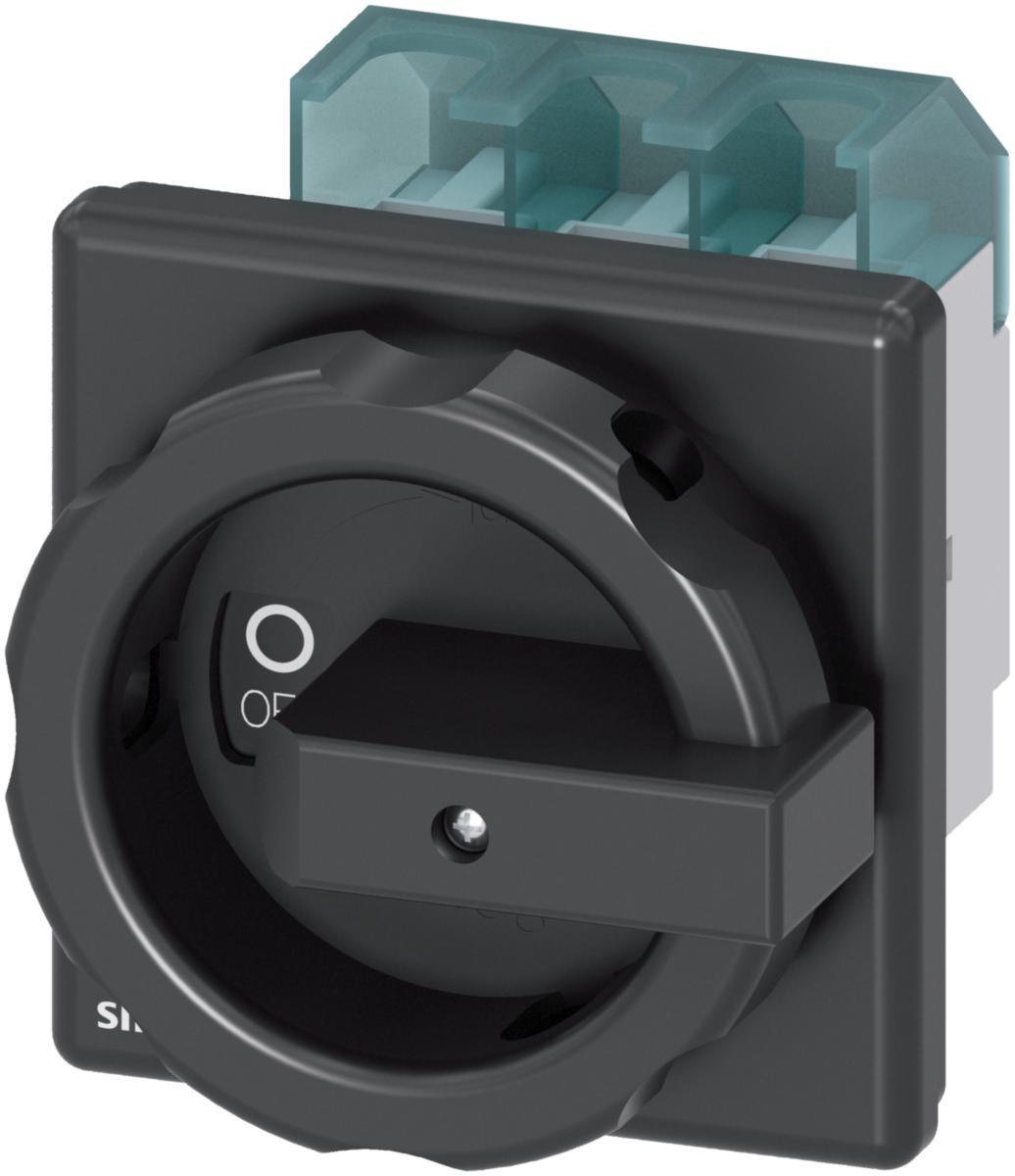

MAIN SWITCH 3LD2 3P 63A G/S FRONT 3LD2504-0TK51
Article number: Suppl. article no:
3147002
3LD2504-0TK51
to see price and stock
3 and 4-pole, front and bottom mounted
- Article number: 3147002
- Suppl. article no: 3LD2504-0TK51
- Ean no: 4011209403321
- Material class QO191B
Technical data
- Type: 3LD2504-0TK51
- Rated permanent current Iu: 63 A
- Number of poles: 3
- Max. rated operation voltage Ue AC: 690 V
- Version as main switch: Yes
- Version as maintenance-/service switch: Yes
- Version as safety switch: Yes
- Number of switches: 1
- Version as emergency stop installation: No
- Rated operation power at AC-3, 400 V: 18.5 kW
- Colour control element: Black
- Rated operation power at AC-23, 400 V: 0.022 kW
- Rated permanent current at AC-21, 400 V: 63 A
- Rated permanent current at AC-23, 400 V: 43 A
- Number of auxiliary contacts as normally open contact: 0
- Number of auxiliary contacts as change-over contact: 0
- Number of auxiliary contacts as normally closed contact: 0
- Device construction: Built-in device fixed built-in technique
- Type of electrical connection of main circuit: Frame clamp
- Motor drive integrated: No
- Interlockable: Yes
- Suitable for front mounting 4-hole: Yes
- Suitable for front mounting centre: No
- Suitable for floor mounting: No
- Suitable for distribution board installation: No
- Suitable for intermediate mounting: No
- Motor drive optional: No
- Degree of protection (IP), front side: IP65
- Rated short-time withstand current lcw: 1.26 kA
- Voltage release optional: No
- Type of control element: Short rotary handle
- Version as reversing switch: No
- Degree of protection (NEMA): Other
- REACH Date: 2022-03-14
- REACH Information obligation: No
