Norwesco

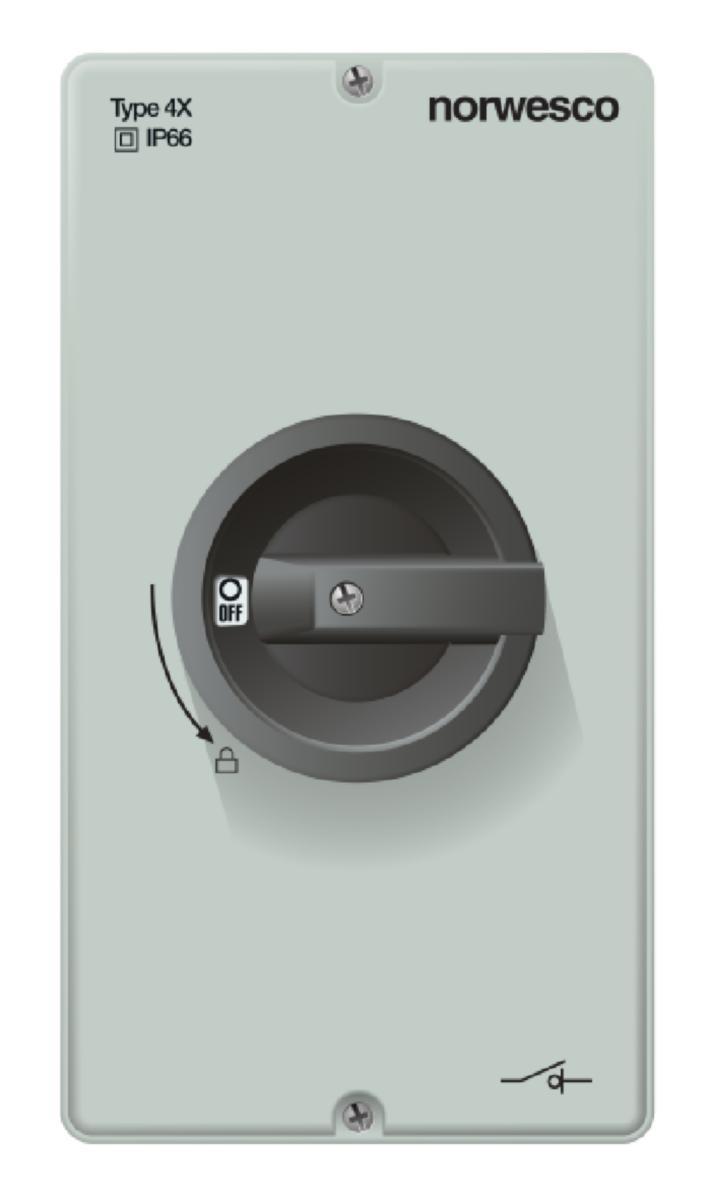

Load disconnector DC
DC-SWITCH DISCONNECTOR 602250
Article number: Suppl. article no:
3134666
602250
to see price and stock
DC load disconnector for solar cell installations. The switch is intended to be installed before the inverter. Knob with clear position indication that is lockable in the off position. Cable penetration takes place through one of the four knockouts located on the enclosure above the respective underside, max. Screw connection M25.
- Article number: 3134666
- Suppl. article no: 602250
- Ean no: 7394438022509
- Material class QO180B
Technical data
- Packagin Size: 1 ST/12 ST/360 ST
- Number of poles: 4
- Rated current: 16 A
- Rated voltage DC: 1500 V
- Version as maintenance-/service switch: Yes
- Version as safety switch: Yes
- Colour control element: Black
- Number of auxiliary contacts as normally open contact: 0
- Number of auxiliary contacts as change-over contact: 0
- Number of auxiliary contacts as normally closed contact: 0
- Device construction: Complete device in housing
- Type of electrical connection of main circuit: Screw connection
- Interlockable: Yes
- Degree of protection (IP), front side: IP66
- Type of control element: Turn button
- Width: 98 mm
- Height: 180 mm
- Depth: 107 mm
- Housing colour: Grey
- REACH Date: 2026-02-06
- REACH Information obligation: No
