Cobolt

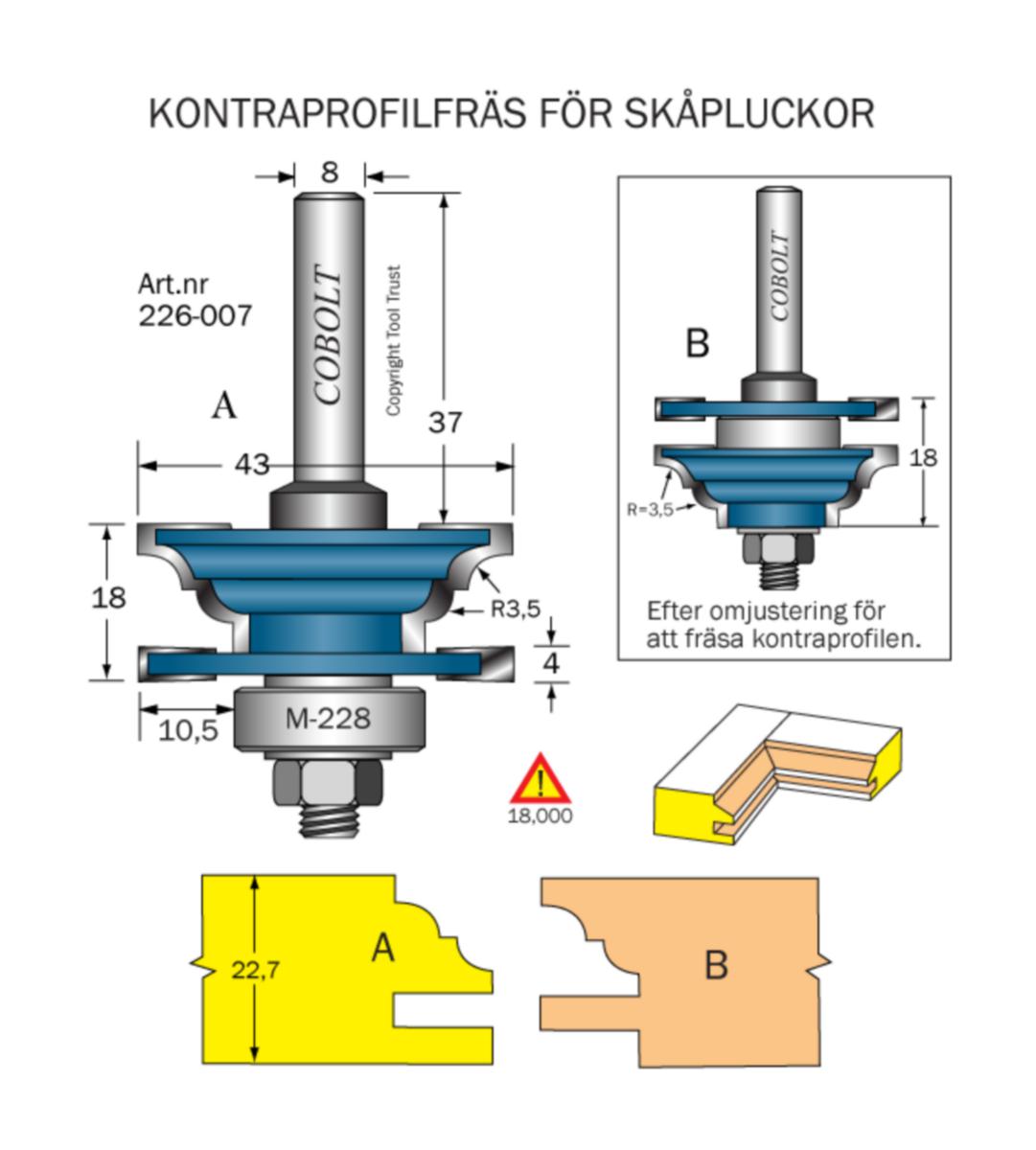

Counter profile cutter Cobolt HM
STILE & RAIL BIT HM COBOLT D43 R3.5 TENON4 L22.7 S8 BB:M228
Article number: Suppl. article no:
68162927
226-007
to see price and stock
For the manufacturing of cabinet doors with floating panel inserts. Assembled in two different ways depending on which milling operation is to be performed. By using only the profile cutter, the range of applications is extended to include pure edge profiling.
- Article number: 68162927
- Suppl. article no: 226-007
- Ean no: 7393556003339
- Material class TL356B
Technical data
- Diameter cutter: 43 mm
- Radius: 3.5
- Working length: 22.7 mm
- Shaft diameter: 8 mm
