Wavin

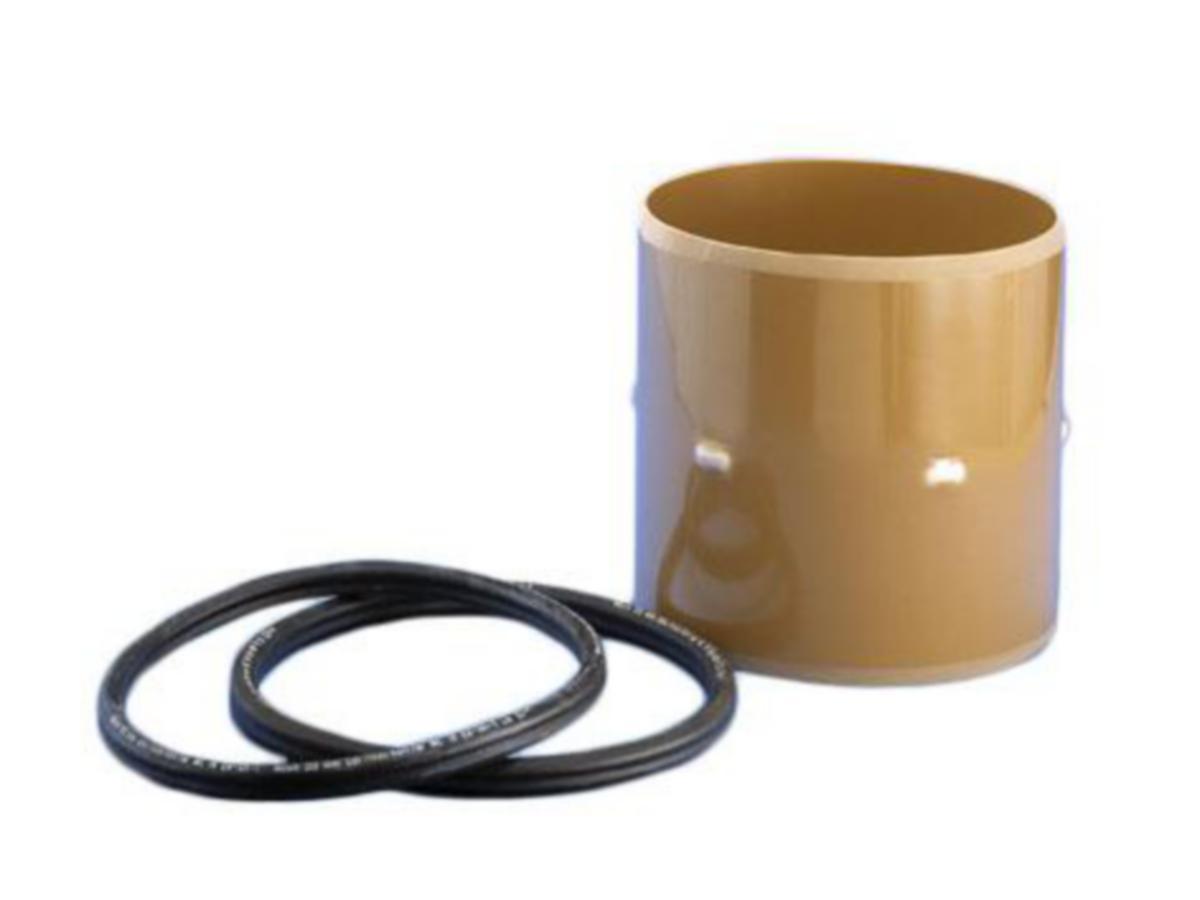

Coupling sleeve 315 mm, corrugated riser pipe Wavin
315 COUPL. SLEEVE F CORR. PIPE WITH 2 SEALING RINGS
Article number: Suppl. article no:
2358099
2015151
to see price and stock
Internal mounting incl. two sealing rings
- Article number: 2358099
- Suppl. article no: 2015151
- Ean no: 5708525030186
- Material class PMI370
Technical data
- Packagin Size: 1 PCS/16 PCS
- Outer pipe diameter connection 1: 315 mm
- Outer pipe diameter connection 2: 117 mm
- Material connection 1: Polyvinyl chloride (PVC)
- Material connection 2: Polyvinyl chloride (PVC)
- Connection 1: Slide sleeve
- Connection 2: Slide sleeve
- Nominal diameter connection 1: DN 315
- Nominal diameter connection 2: DN 315
- High tensile strength: No
- Eccentric: No
- FM quality mark: No
- Shape: Straight
- Reducing: No
- Material quality connection 1: PVC-U
- Material quality connection 2: PVC-U
- With sealing rings/gaskets: No
- Capped: No
- With thermal insulation: No
- Medium temperature (continuous): 0-60 °C
- Model: 1-part
- System specific: Yes
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- LPCB quality mark: No
- Length: 373 mm
- With drain valve: No
- Working length connection 1: 158 mm
- Working length connection 2: 158 mm
- Length of connection 1: 158 mm
- Length of connection 2: 158 mm
- Ring stiffness class: Other
- Wall thickness, connection 1: 17 mm
- Wall thickness, connection 2: 17 mm
- REACH Date: 2023-05-22
- Design: With a stop in the middle
- REACH Information obligation: No
