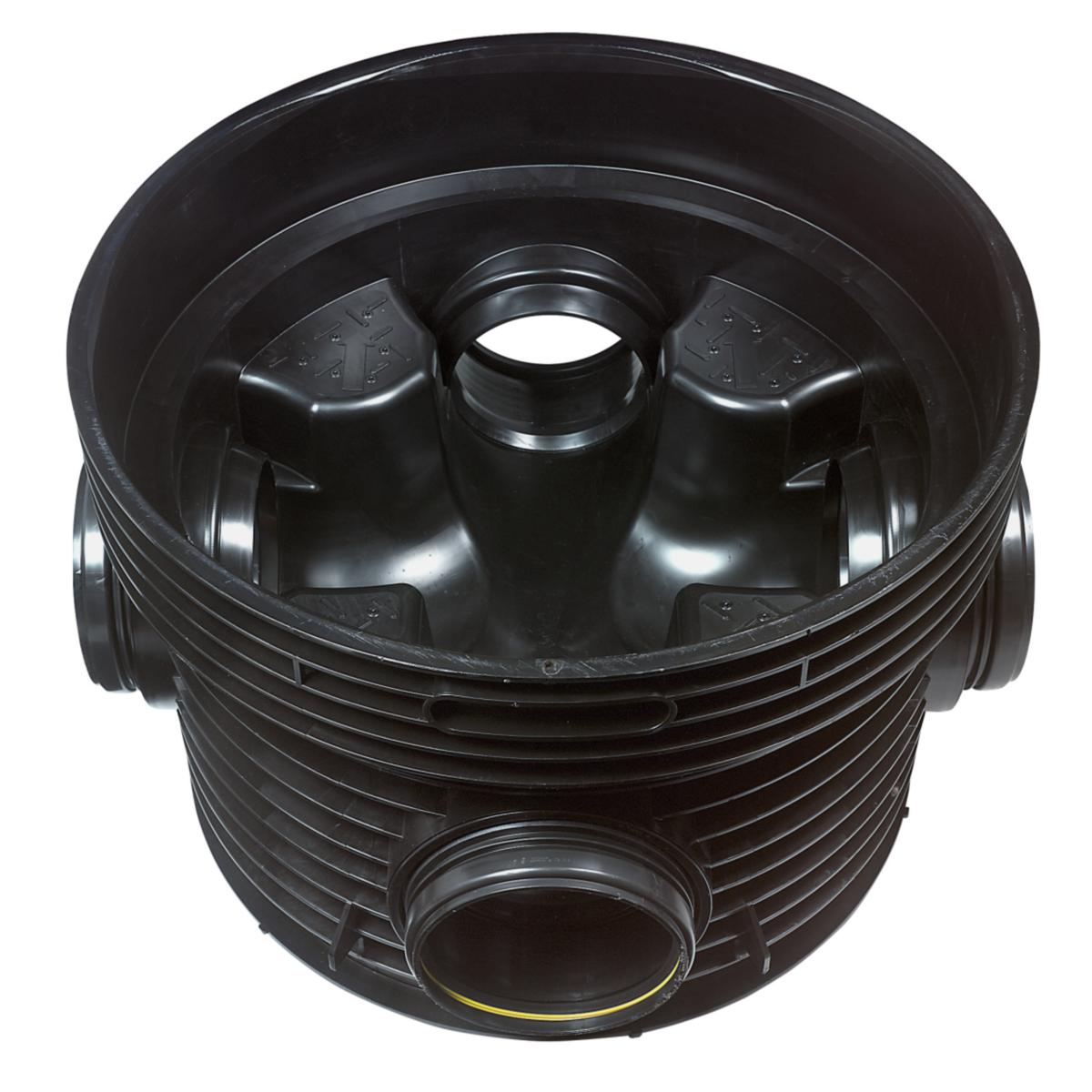

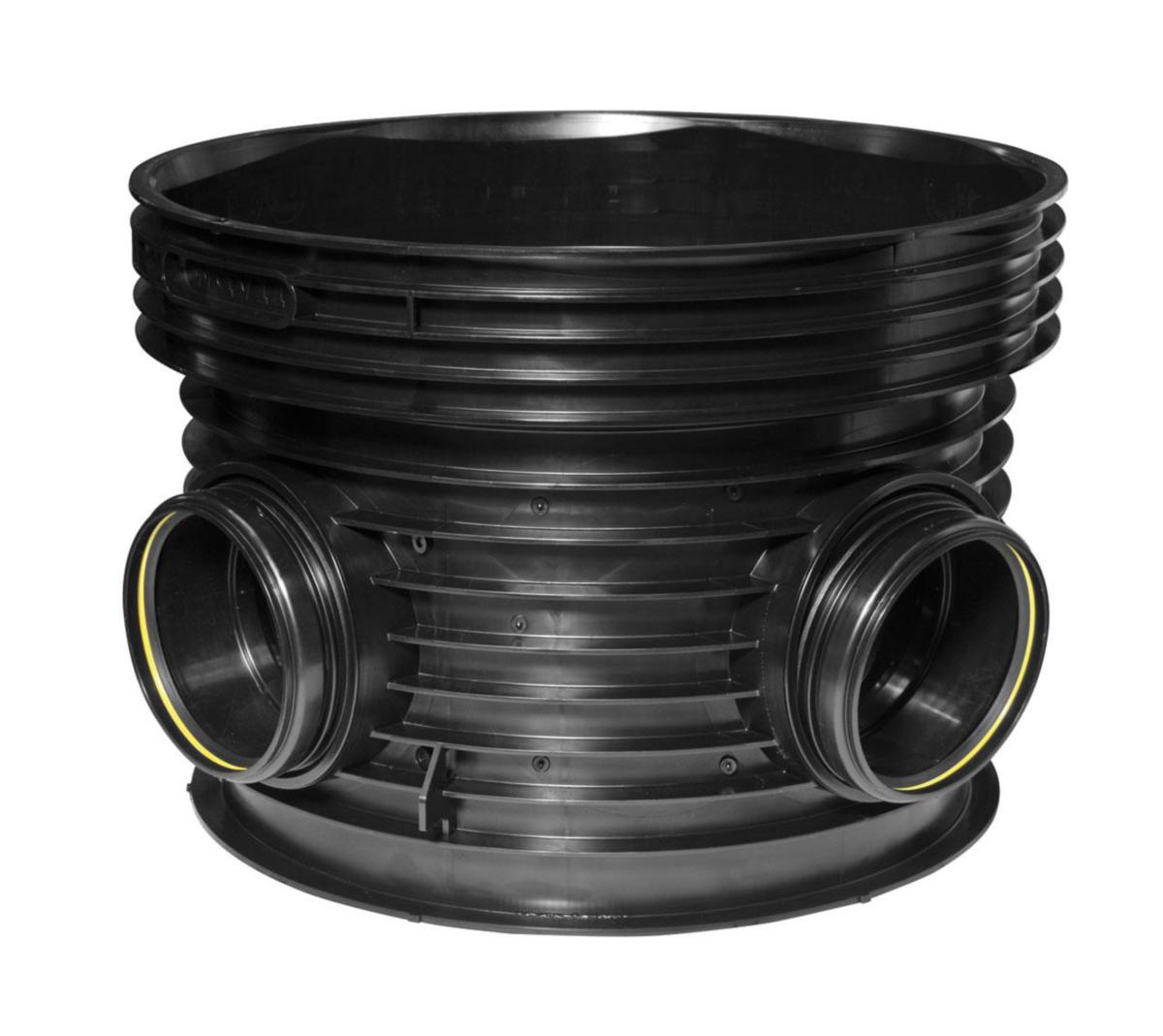

Decent well, Wavin Tegra 1000, Type2 90° 3 inlet
1000X200 TEGRA TP2 90° FOR SMOOTH PIPES
Article number: Suppl. article no:
2360071
3062926
to see price and stock
Injection-moulded inspection chamber of PP with connections for smooth land drainage pipes or structural wall pipes. Designed for 1103/1000 mm riser pipe and taper as well as xxx for construction in prepared ground. Flexible joints allowing a rotation of +/- 7.5° with rubber ring.
- Article number: 2360071
- Suppl. article no: 3062926
- Ean no: 5708525458874
- Material class PMI160
Technical data
- Colour: Black
- Height ground level - inner bottom side pipe: 5000 mm
- Nominal diameter shaft: 1000 mm
- Number of connections: 4
- Material: Polypropylene (PP)
- Flat bottom: Yes
- Inner diameter: 1109 mm
- Connection: Sleeve
- With flow profile: Yes
- Outer diameter: 1188 mm
- Inlets capped: Yes
- With solid shaft: No
- Nominal diameter inlet: DN 200
- Nominal diameter outlet: DN 200
- Connection inlets: Sleeve
- Connection outlet: Sleeve
- Direction of outlet: Horizontal
- REACH Date: 2023-05-22
- Design: Smooth ground pipe
- REACH Information obligation: No
