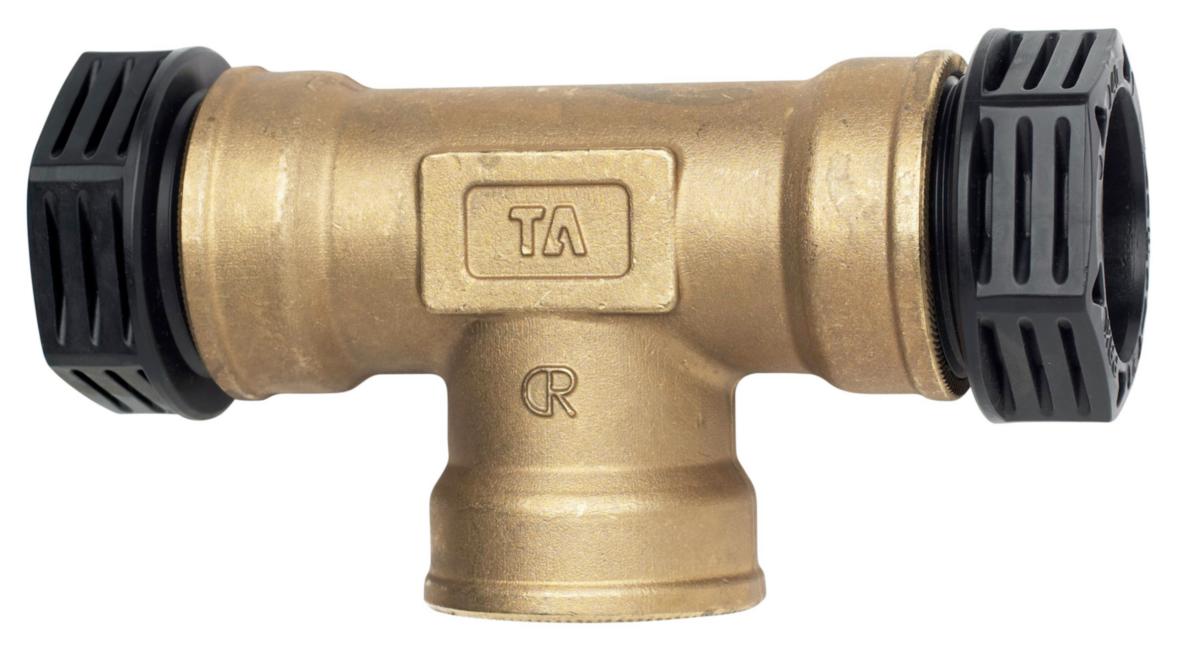

PRK 415, T-coupling 90°, int thread
25XR25X25 TA PRK T-COUPLING INT THREAD, 53415-125
Article number: Suppl. article no:
2436434
53415125
to see price and stock
For polyethylene pipes PEL, PEH and PEM, PN 6.3 and PN 10, in accordance with SS 3362. For PVC pipes with special pressure screw and cone. Where dimensions 1 and 3 are the same, only 1 is stated.
- Article number: 2436434
- Suppl. article no: 53415125
- Ean no: 7318792899805
- Material class PMN140
Technical data
- Packagin Size: 1 ST/15 ST/180 ST/720 ST
- Dimension: 25xR25
- Outer pipe diameter connection 1: 25 mm
- Nominal diameter connection 2: 1 inch (25)
- Outer pipe diameter connection 3: 25 mm
- Max. operating pressure at 20 °C: 16 bar
- Angle: 90 °
- Reducing: No
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Length: 119 mm
- Model: T-piece
- Capped: No
- System specific: Yes
- GWP-tot (A1-A3): 0,7381 kgCO2e/ST
- Design: Pressure screw, internal threaded branch
