Pipelife

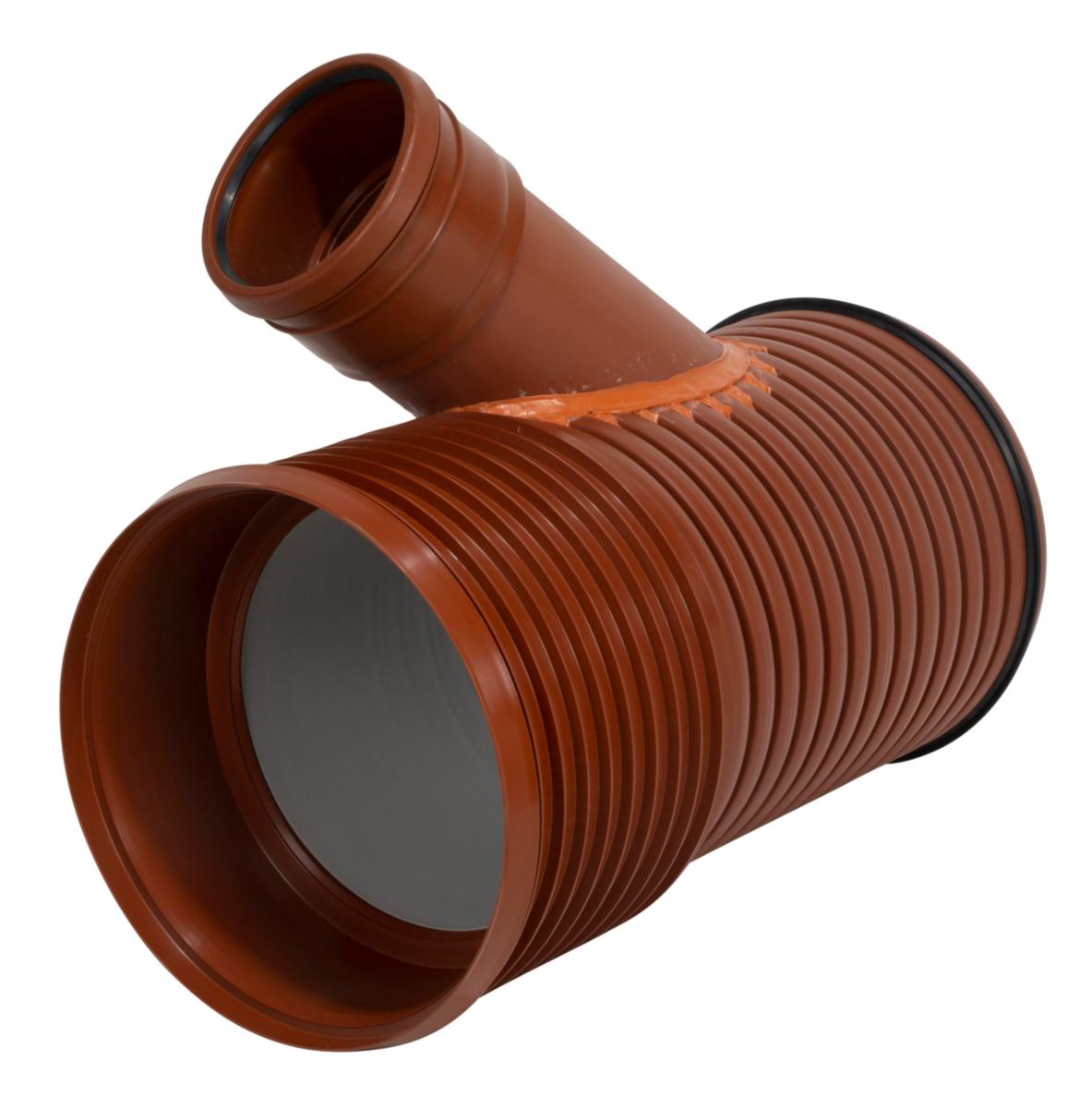

Pragma branch 45°
400x200x45° BRANCH PRAGMA EN13476 PBB.5216
Article number: Suppl. article no:
2340193
70025592
to see price and stock
Pipe parts for Pragma lightweight pipes in double-wall construction. Manufactured according to Nordic quality requirements INSTA-CERT, Nordic Poly Mark. Supplied with sealing ring in EN681-1 quality.
- Article number: 2340193
- Suppl. article no: 70025592
- Ean no: 9010459586629
- Material class PMG110
Technical data
- Packagin Size: 1 PCS/3 PCS
- Outer pipe diameter connection 1: 400 mm
- Outer pipe diameter connection 2: 200 mm
- Outer pipe diameter connection 3: 400 mm
- Nominal diameter connection 1: DN 400
- Nominal diameter connection 2: DN 200
- Nominal diameter connection 3: DN 400
- Angle: 45 °
- Material connection 1: Polypropylene (PP)
- Material connection 2: Polypropylene (PP)
- Material connection 3: Polypropylene (PP)
- Model: T-piece
- Connection 1: Slide end
- Connection 2: Slide sleeve
- Connection 3: Slide sleeve
- Reducing: Yes
- Ring stiffness class: SN8
- System specific: Yes
- With sealing rings/gaskets: Yes
- With buffer stud: Yes
- Swept entry type (with inner radius): No
- Norm: EN13476
- REACH Date: 2026-02-04
- GWP-tot (A1-A3): 33,612 kgCO2e/ST
- Ring stiffness: SN8
- Material: PP
- Dimension other: 400x200 mm
- Colour: Red-brown
- Design: 2 sleeves and pointed
- REACH Information obligation: No
