WaStop®
Wastop membrane check valve for pp-/pvc pipes
200 WASTOP MEMBR. CHECK VALVE FOR PP-/PVC PIPES
Article number: Suppl. article no:
4281307
ws200pvc-55
to see price and stock

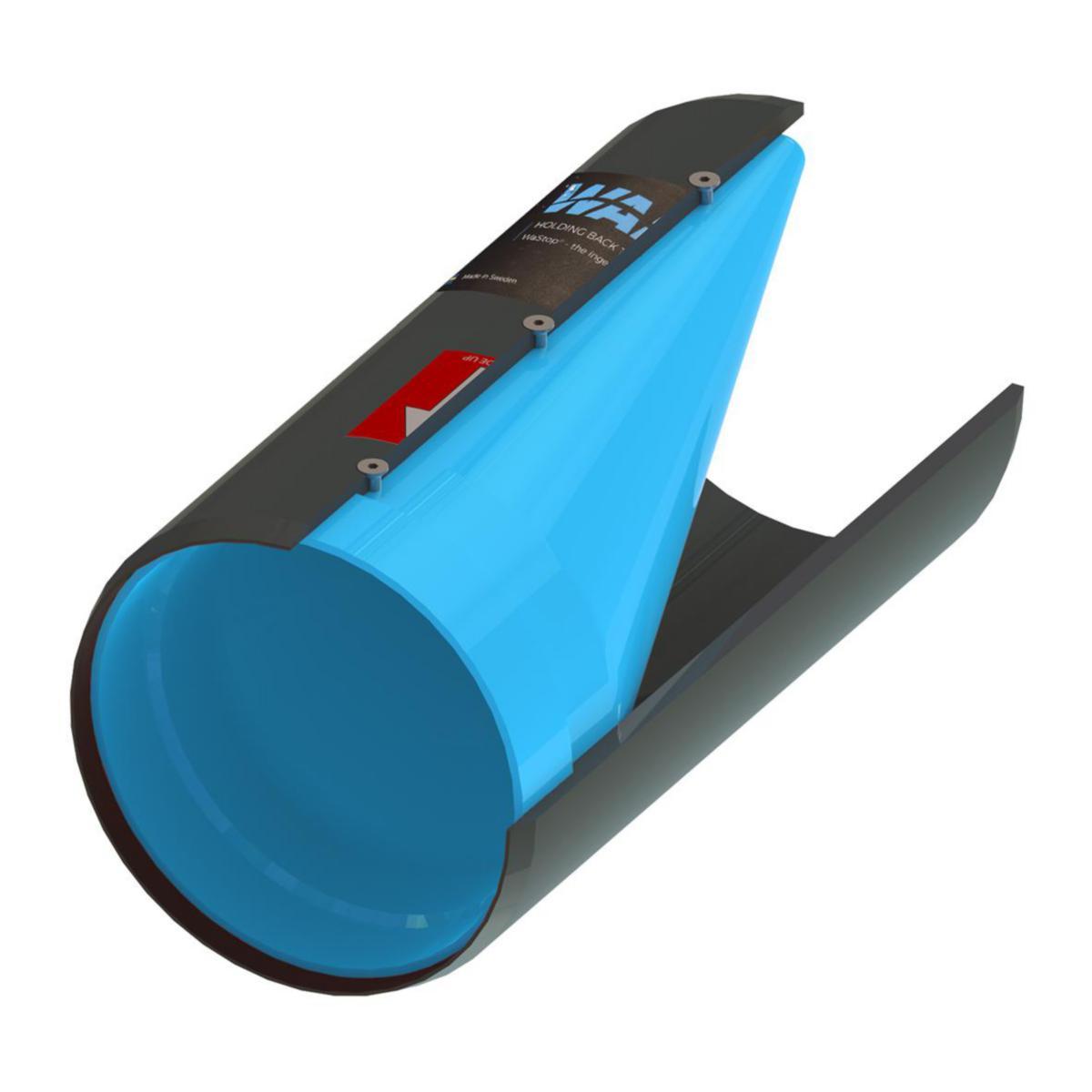

WaStop® is a revolutionary patented and certified check valve that installs in minutes in a pipe or drain. It can be installed horizontally or vertically in an intake or outlet. WaStop® is installed to prevent backflow. The flow in the main flow direction creates pressure against the membrane, which causes the membrane to open exactly as much as needed to allow the flow to pass unhindered. In case of backflow, the membrane fills with water or gas, acting as a plug in the pipe. WaStop® blocks all backflow in the pipe or drain. The WaStop® check valve can be configured to handle up to 12 metres back pressure.
- Article number: 4281307
- Suppl. article no: ws200pvc-55
- Material class PMF300
Technical data
- Outer pipe diameter all connections: 200 mm
- Housing material: Polyvinyl chloride (PVC)
- Nominal diameter: DN 200
- Sealing: Other
- Surface protection: Untreated
- Low noise: Yes
- With balance weight: No
- With lock spring: No
- Connections: Other
- Material quality: PVC-U
- Article compression class: Other
- FM quality mark: No
- LPCB quality mark: No
- UL quality mark: No
- ULC quality mark: No
- Model: Straight
- Valve shape: Membrane flap
- Max. operating pressure at 20 °C: 0.5 bar
- Flange compression class: Other
- Opening pressure valve cone: 13 mbar
- KIWA certified: Yes
- Kvs value: 4029.67
- Suitable for central heating water: No
- Type approval according to BBR/EKS: No
- VdS quality mark: No
- Zeta value: 2.75
- Certified according to SVGW for gas: No
- Certified according to SVGW for water: No
- DVGW quality mark for gas: No
- DVGW quality mark for water: No
- Suitable for potable water: No
- Standard: Other
- Backflow safeguard according to EN 1717: None
- Protection class according to IEC 61140: None
- SVGW certified: No
- REACH Date: 2024-10-07
- Material: PVC/Silicone
- Design: To be mounted recessed on the line
- REACH Information obligation: No
