Water-/radon sealing, a-collection

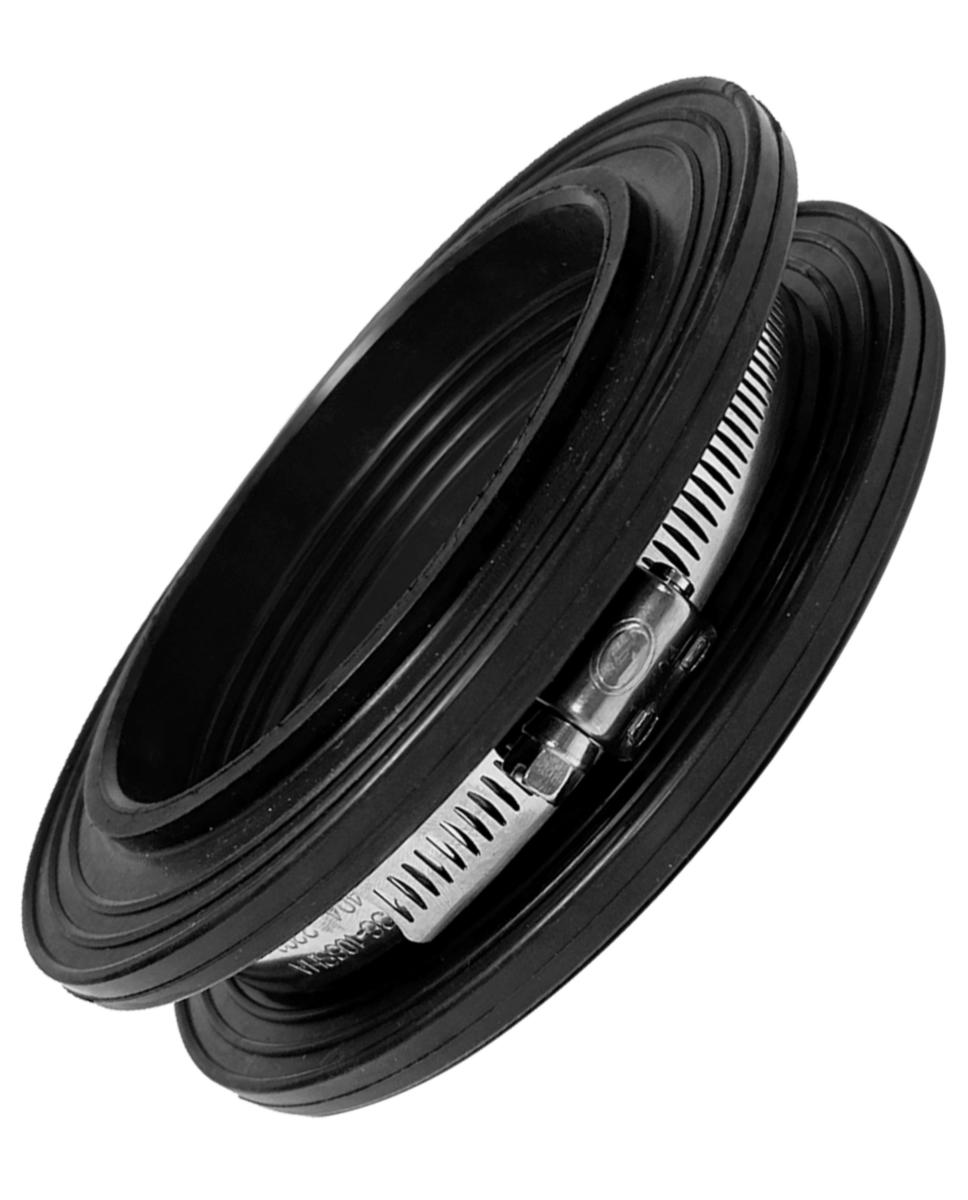

DN160 RADON-/WATER FLANGE SPAN: 151-165MM, A-COLLECTION
Article number: Suppl. article no:
4456056
IBRLT160
to see price and stock
Radon and waterproof sealing in EPDM with mounting band in stainless steel. Used to seal around pipes cast into concrete. The sealing is mounted on the pipe, thereby preventing water and gas from creeping along the pipe. Withstands 8 bar water pressure. Build dimensions: pipe diameter + 52 mm.
Tightening torque
25-275 mm - 6 Nm
315-415 mm - 13 Nm
Tightening torque
25-275 mm - 6 Nm
315-415 mm - 13 Nm
- Article number: 4456056
- Suppl. article no: IBRLT160
- Ean no: 7333123839572
- Replaces art.nbr: 4054895
- Material class PMI210
Technical data
- DN: 160
- Suitable for feedthrough diameter: 151-165 mm
- Span: 151-165 mm
- Gastight: Yes
- Airtight: Yes
- Watertight: Yes
- Material: Ethylene-propylene diene monomer rubber (EPDM)
- Max. medium temperature (continuous): 80 °C
- Width: 210 mm
- Length: 210 mm
- Height: 42 mm
