VRS Pro

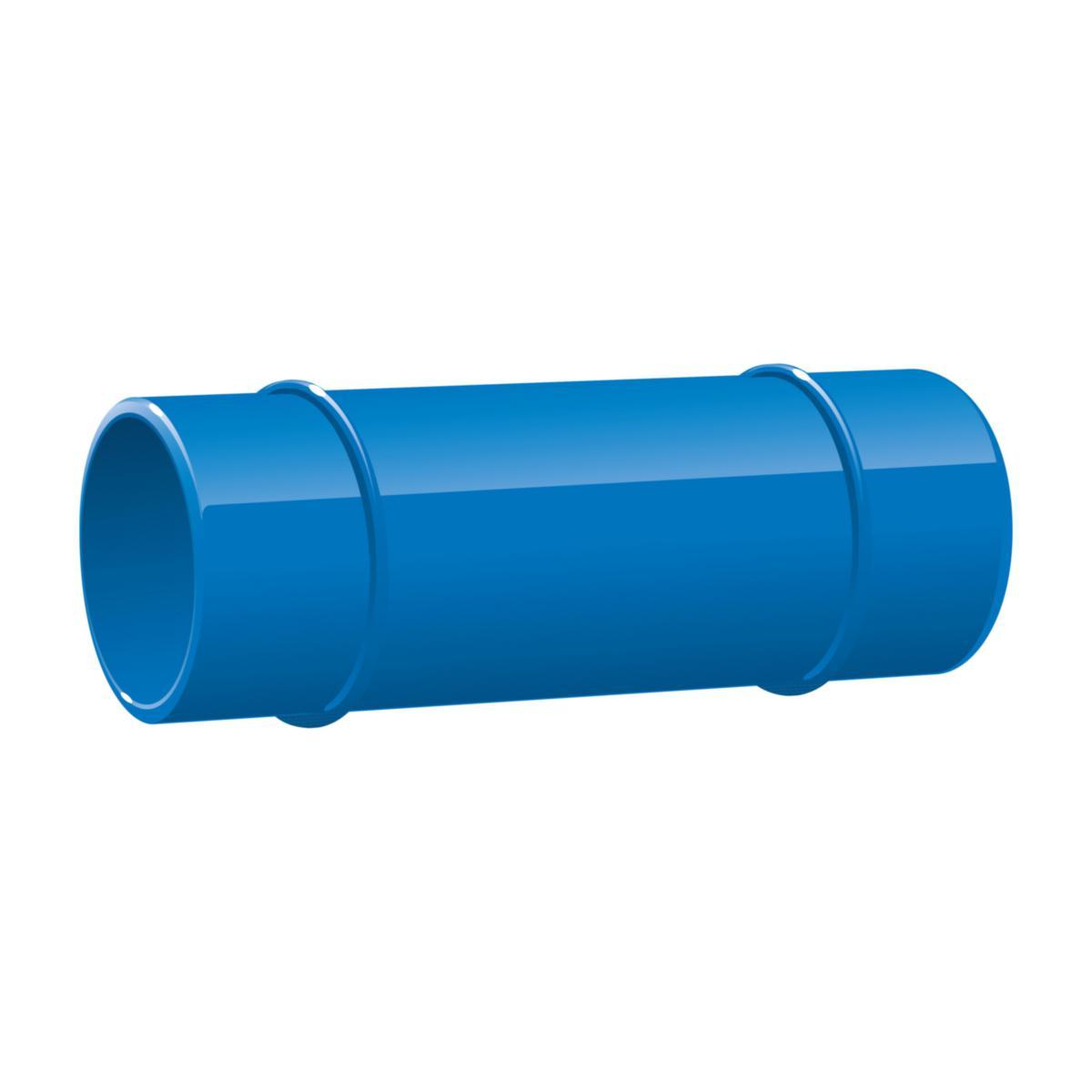

Welded spigot pipe, VRS Pro
100 VRS ADAPTER PIPE WELD BEAD L=400MM PBB.1211
Article number: Suppl. article no:
1047217
1047217
to see price and stock
VRS Pro flange end for water. Internal concrete-insulated, external zinc and epoxy-treated. Class K9 according to EN 545. 200 g/m2 zinc coating.
- Article number: 1047217
- Suppl. article no: 1047217
- Material class PMA310
Technical data
- Packagin Size: 1 ST/2 ST
- Nominal diameter connection 1: DN 100
- Nominal diameter connection 2: DN 100
- Bend angle: 180 °
- Connection 1: Slide end
- Material quality connection 1: Other
- Material quality connection 2: Other
- Material connection 1: Cast iron
- Material connection 2: Cast iron
- Connection 2: Slide end
- Length: 400 mm
- Norm: EN545
- Surface treatment connection 1: Other
- Surface treatment connection 2: Other
- Surface protection connection 1: Coated
- Surface protection connection 2: Coated
- Model: 1-part
- Shape: Straight
- Reducing: No
- Capped: Yes
- Ring stiffness class: Other
- Eccentric: No
- FM quality mark: Yes
- LPCB quality mark: No
- With drain valve: No
- With buffer stud: No
- With de-aerator: No
- With sealing rings/gaskets: Yes
- System specific: Yes
- UL quality mark: No
- High tensile strength: Yes
- ULC quality mark: No
- REACH Date: 2025-12-03
- REACH Information obligation: No
