Vexve

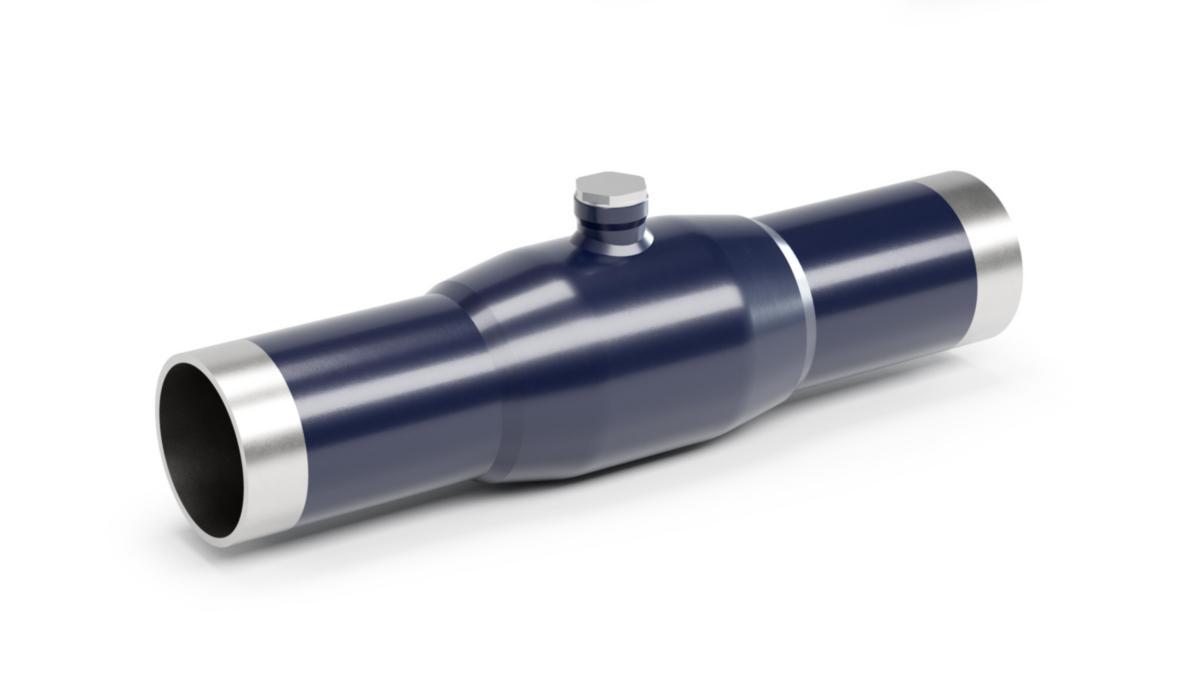

Fully welded disposable valve, made by Vexve, Series 120, in carbon steel with welding ends, reduced flow design
DN100 BALL VALVE PN40 STEEL WELD/WELD
Article number: Suppl. article no:
4512192
120100
to see price and stock
Disposable valves are installed to prepare the pipeline network for future connections. When a new pipeline network is connected, the valve is opened once and becomes part of the new insulated pipeline network.
- Article number: 4512192
- Suppl. article no: 120100
- Replaces art.nbr: 4512174
- Material class PIG130
Technical data
- Connection 1: Welded end
- Connection 2: Welded end
- Medium temperature (continuous): -20 - +200 °C
- Nominal diameter connection 1: DN 100
- Nominal diameter connection 2: DN 100
- Outer pipe diameter connection 1: 114.3 mm
- Outer pipe diameter connection 2: 114.3 mm
- Construction length: 325 mm
- Article compression class: PN 25
- Material ball: Stainless steel
- Material spindle: Stainless steel
- Housing material: Steel
- Material ball seal: Polytetrafluoroethylene (PTFE)
