Danfoss

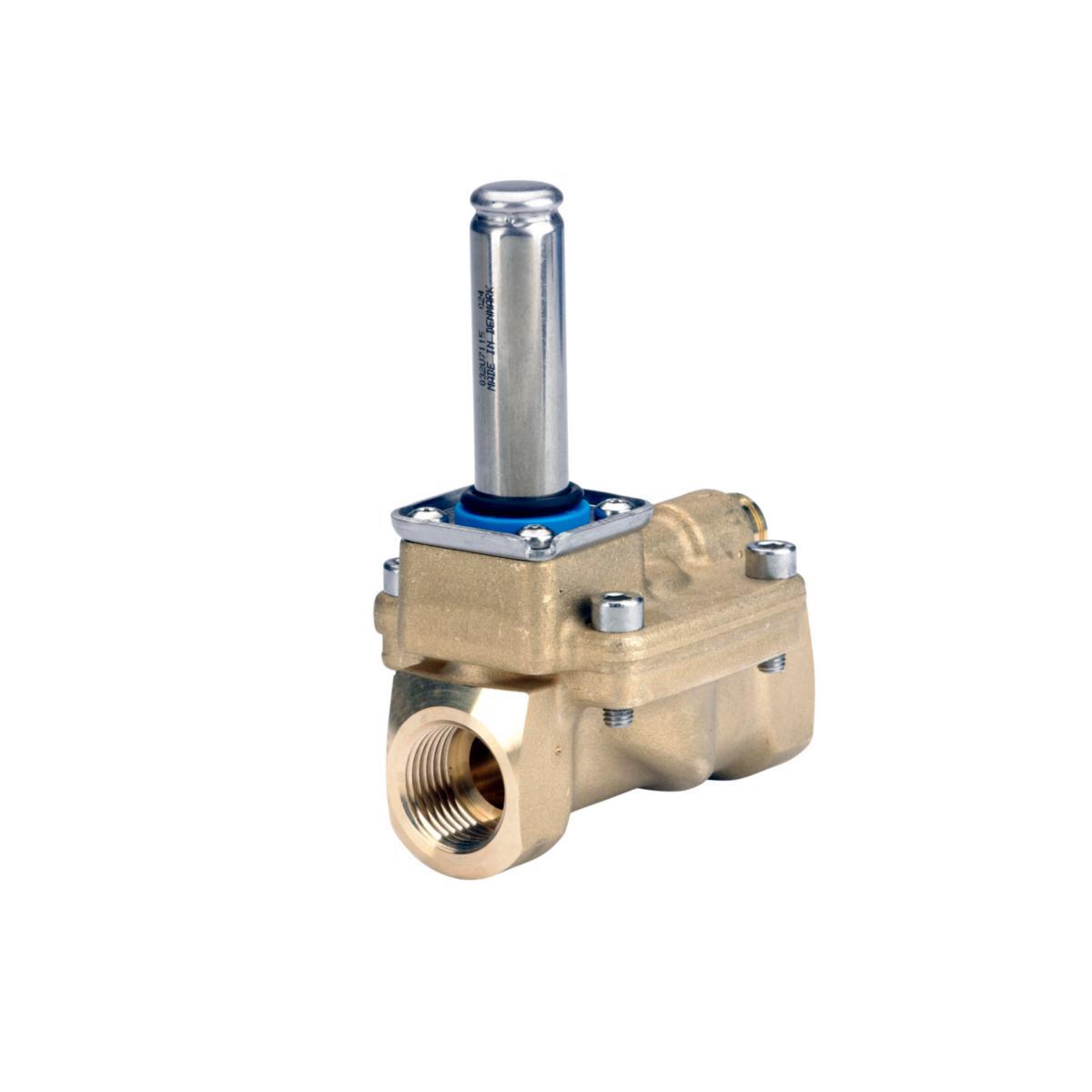

Solenoid Valve EV220BW, NC, Danfoss
SOLENOID VALVE EV220BW 15BE NC DN15 EPDM 0 - 90°C KV=4
Article number: Suppl. article no:
4894245
132U1500
to see price and stock
Danfoss solenoid valve EV220BW 15B, DN 15, electrically closed NC, EPDM diaphragm. Valve body in eco-brass. Drinking water approved DWGW 4MS KTW and W270, RiSE certified. Media temp 0 - 90 ° C. Pressure min 30 kPa, max 1000 kPa.
Industrial Valve.
Industrial Valve.
- Article number: 4894245
- Suppl. article no: 132U1500
- Ean no: 5715162206065
- Replaces art.nbr: 4528159 4894286 4894287
- Material class PIM120
Technical data
- Packagin Size: 1 ST/24 ST
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Kvs value: 4
- Nominal diameter: 1/2 inch (15)
- Housing material: Brass
- Max. differential pressure water/liquids: 10 bar
- Medium temperature (continuous): -30-90 °C
- Length of connection 1: 80 mm
- Height: 114 mm
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Material quality: Other
- Max. ambient temperature: 80 °C
- Min. pressure difference: 0.3 bar
- Deactivated when open: No
- Model: Straight
- Surface protection: Untreated
- Max. pressure difference for AC model: 10 bar
- Max. pressure difference for DC model: 10 bar
- Emergency manual operation: None
- Max. viscosity: 50 cSt
- With sieve: No
- REACH Date: 2024-07-01
- Differential pressure: 30-1000 kPa
- REACH Information obligation: No
