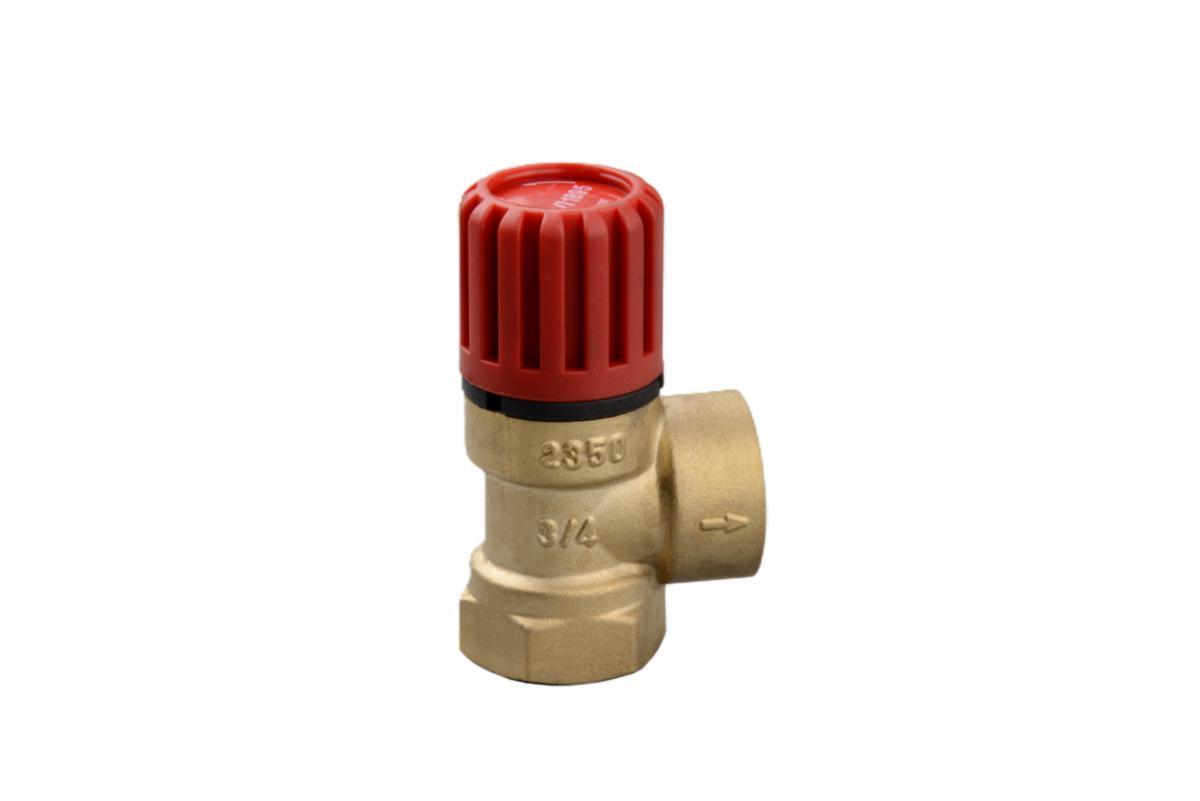

Safety valve AVI 1895-S for heating and cooling G20xG20
Safety valve G3/4xG3/4" 2,5bar/-10°C-+120°C
Article number: Suppl. article no:
5075099
5075099
to see price and stock
G3/4" internal thread on inlet and exhaust.
Max glycol mixture 50%
Lead-free brass with Max 0.10% lead content.
Max glycol mixture 50%
Lead-free brass with Max 0.10% lead content.
- Article number: 5075099
- Suppl. article no: 5075099
- Ean no: 7333123842183
- Material class PIC010
Technical data
- Packagin Size: 1 PCS/20 PCS/80 PCS/2400 PCS
- Nominal diameter connection 1: 3/4 inch (20)
- Nominal diameter connection 2: 3/4 inch (20)
- Overflow pressure: 2.5 bar
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Outer pipe diameter connection 1: 20 mm
- Article compression class: PN 10
- Material quality: CuZn40Pb2 (CW617N)
- Sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Surface protection: Untreated
- Max. operating pressure at 20 °C: 2.5 bar
- Model: Right-angled
- Suitable for cooling: Yes
- Suitable for hot tap water: No
- Suitable for heating: Yes
- Housing material: Brass
- Medium temperature (continuous): -10-+120 °C
- GWP-tot (A1-A3): 1,3149 kgCO2e/ST
