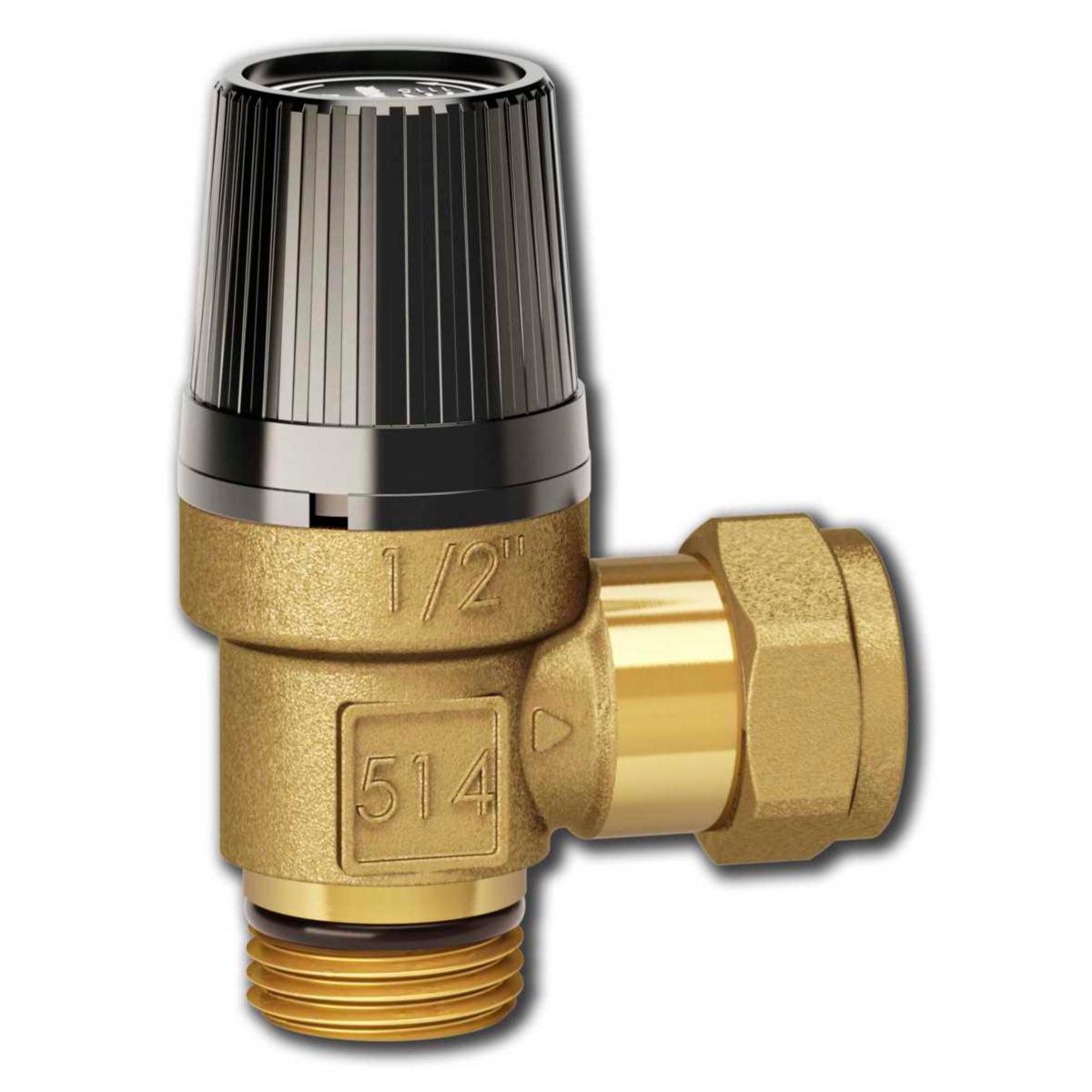

Safety valve LKA 514, LK
SAFETY VALVE LK514 G15X15MM 0.6 MPA MALE
Article number: Suppl. article no:
5005352
5005352
to see price and stock
Safety valve with built-in draining function for connection to a tap water system. The valve housing is of hot-pressed, dezincification-resistant brass.
- Article number: 5005352
- Suppl. article no: 5005352
- Ean no: 7331590010555
- Material class PIC100
Technical data
- Packagin Size: 1 ST/50 ST
- Nominal diameter connection 1: 1/2 inch (15)
- Nominal diameter connection 2: Other
- Overflow pressure: 0-6 bar
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Compression ring
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 15 mm
- Bellows seal: Yes
- Angle of the device: 90 °
- Suitable for continuous operation: Yes
- Material quality: Dezincification resistant brass (DZR)
- Sealing: Metal
- Surface protection: Untreated
- Max. operating pressure at 20 °C: 6 bar
- Model: Right-angled
- Medium temperature (continuous): 0-120 °C
- REACH Date: 2025-06-25
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
