LK

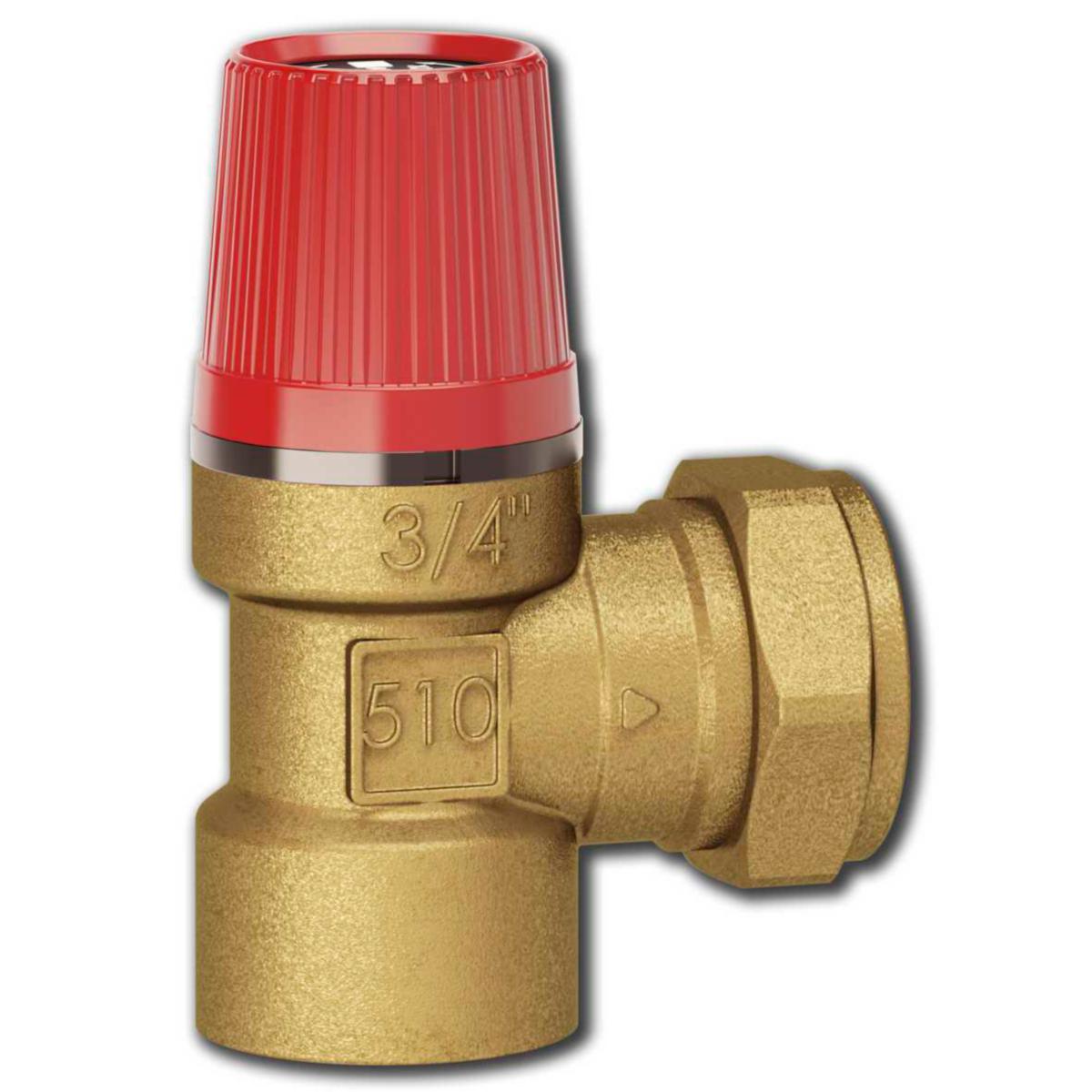

Säkerhetsventil LKA 510, LK
LK 510 SAFETY VALVE 0.25BAR G20/22 SÄK.VENT. 0.25 MPA
Article number: Suppl. article no:
5005306
5005306
to see price and stock
- Article number: 5005306
- Suppl. article no: 5005306
- Ean no: 7331590032649
- Material class PIC100
Technical data
- Nominal diameter connection 1: 3/4 inch (20)
- Overflow pressure: 0-2.5 bar
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Compression ring
- Outer pipe diameter connection 1: 20 mm
- Outer pipe diameter connection 2: 22 mm
- Bellows seal: Yes
- Angle of the device: 90 °
- Suitable for continuous operation: Yes
- Material quality: Dezincification resistant brass (DZR)
- Sealing: Metal
- Surface protection: Untreated
- Max. operating pressure at 20 °C: 2.5 bar
- Model: Right-angled
- Housing material: Brass
- Medium temperature (continuous): 0-110 °C
- REACH contains candidate substances: Bly
- REACH Date: 2021-11-15
- REACH Information obligation: Yes
