Vexve

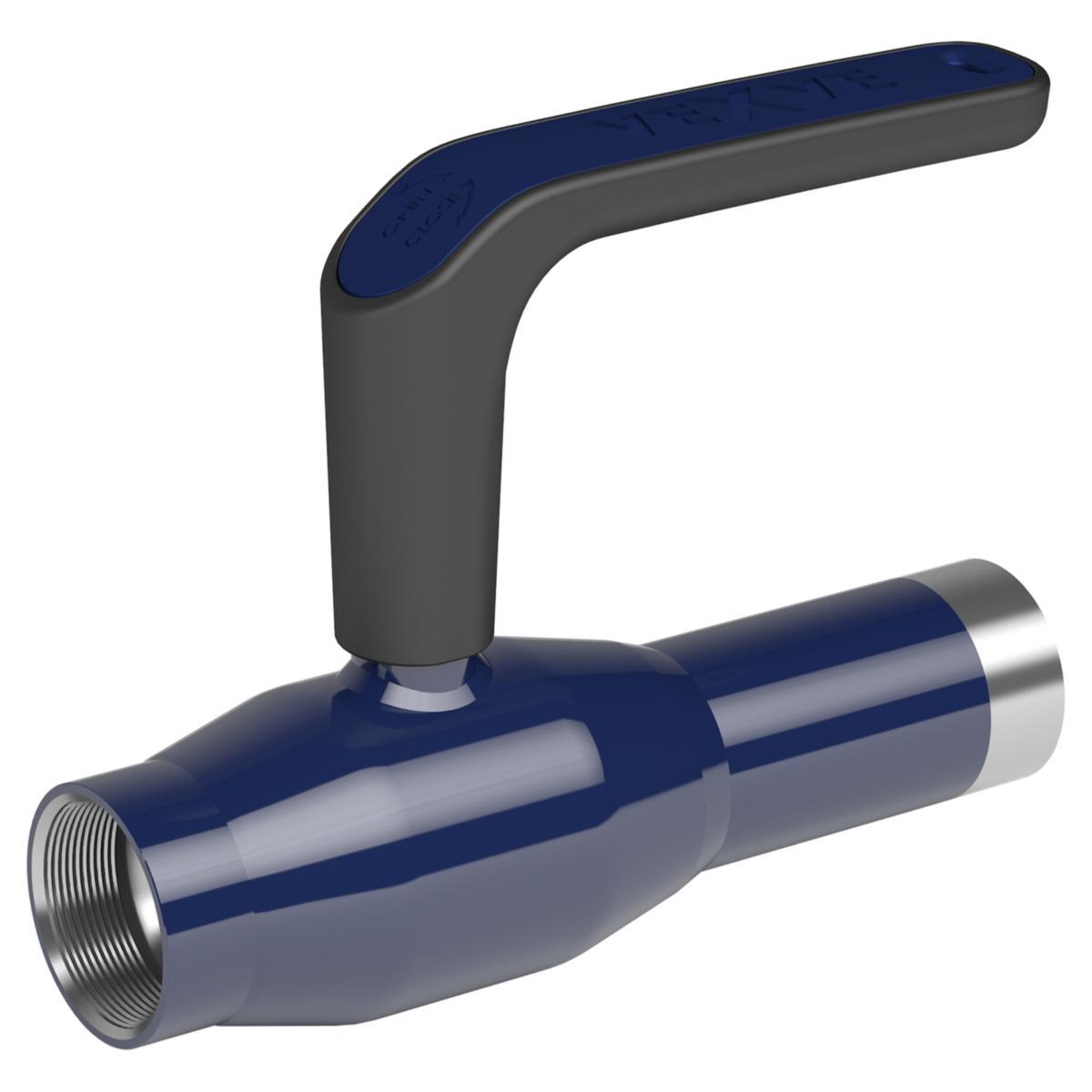

Fully welded ball valve, Vexve Series 101X, carbon steel, with weld end/internal thread, reduced flow design
STEEL BALL VALVE DN40 PN40 INNER THREAD/ WELDE
Article number: Suppl. article no:
5495157
101040X
to see price and stock
Vexve X ball valves are designed for optimal shut-off of both district heating networks and property heating and cooling systems.
- Article number: 5495157
- Suppl. article no: 101040X
- Ean no: 6415837556813
- Material class PIG130
Technical data
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Welded end
- Medium temperature (continuous): -20-200 °C
- Nominal diameter connection 1: 1 1/2 inch (40)
- Outer pipe diameter connection 2: 48.3 mm
- Article compression class: PN 40
- Housing material: Steel
- Max. pressure difference at 20 °C: 40 bar
- Operation: Lever handle
- REACH Date: 2022-03-29
- REACH Information obligation: No
