Vexve

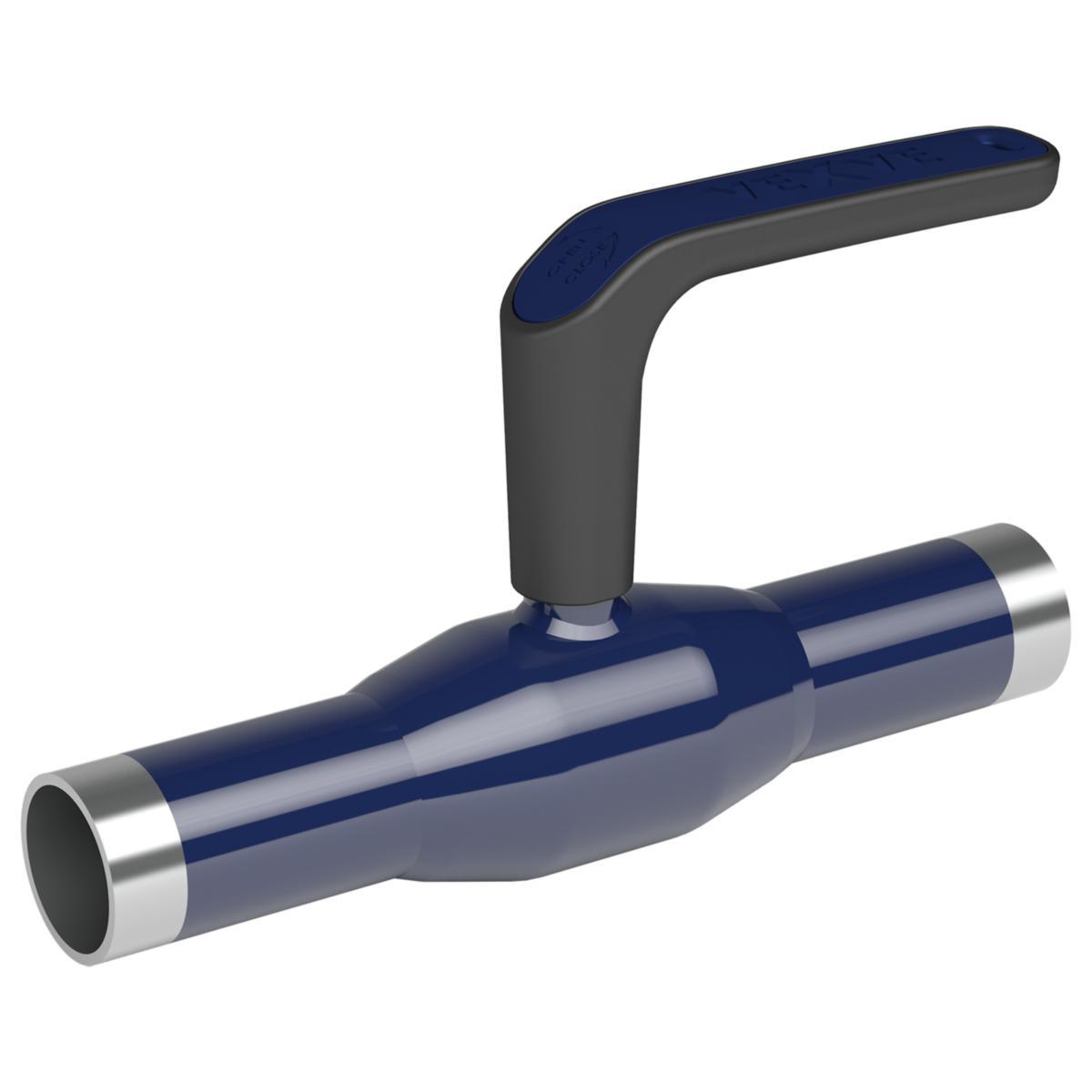

Fully welded ball valve, Vexve Series 100XS, S-model in carbon steel with welding ends, reduced flow design
DN50 BALL VALVE, STEEL WELDING/WELDING, STRONG
Article number: Suppl. article no:
5495307
100050X/S
to see price and stock
Vexve X ball valves are designed for optimal shut-off of both district heating networks and property heating and cooling systems.
- Article number: 5495307
- Suppl. article no: 100050X/S
- Ean no: 6430079560213
- Replaces art.nbr: 4511642
- Material class PIG130
Technical data
- Connection 1: Welded end
- Connection 2: Welded end
- Medium temperature (continuous): -20-200 °C
- Nominal diameter connection 1: DN 50
- Nominal diameter connection 2: DN 50
- Outer pipe diameter connection 1: 60.3 mm
- Outer pipe diameter connection 2: 60.3 mm
- Article compression class: PN 40
- Housing material: Steel
- Operation: Lever handle
- REACH Date: 2022-05-08
- REACH Information obligation: No
