Vexve

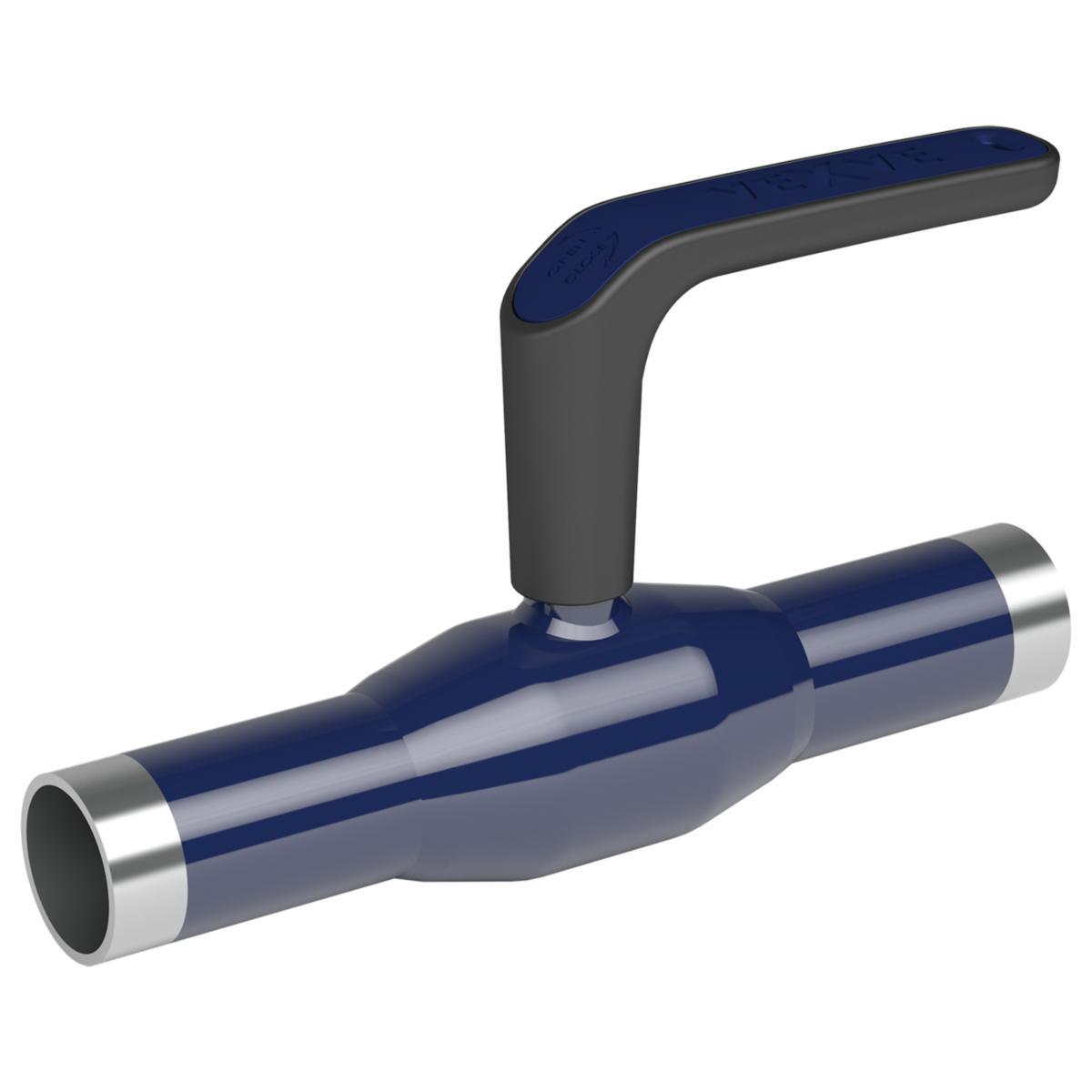

Fully welded ball valve, Vexve Series 100X, carbon steel with weld ends, reduced flow design
STEEL BALL VALVE DN32 PN40 WELDED ENDS
Article number: Suppl. article no:
5495149
100032X
to see price and stock
Vexve X ball valves are designed for optimal shut-off of both district heating networks and property heating and cooling systems.
- Article number: 5495149
- Suppl. article no: 100032X
- Replaces art.nbr: 4511630
- Material class PIG130
Technical data
- Connection 1: Welded end
- Connection 2: Welded end
- Medium temperature (continuous): -30 - +200 °C
- Nominal diameter connection 1: DN 32
- Nominal diameter connection 2: DN 32
- Outer pipe diameter connection 1: 42.4 mm
- Outer pipe diameter connection 2: 42.4 mm
- Article compression class: PN 40
- Material ball: Stainless steel
- Housing material: Steel
- Operation: Lever handle
- Material primary spindle seal: Polytetrafluoroethylene (PTFE)
- Material secondary spindle seal: Fluorelastomer rubber (FPM/FKM)
- REACH Date: 2021-12-06
- REACH Information obligation: No
