Vexve

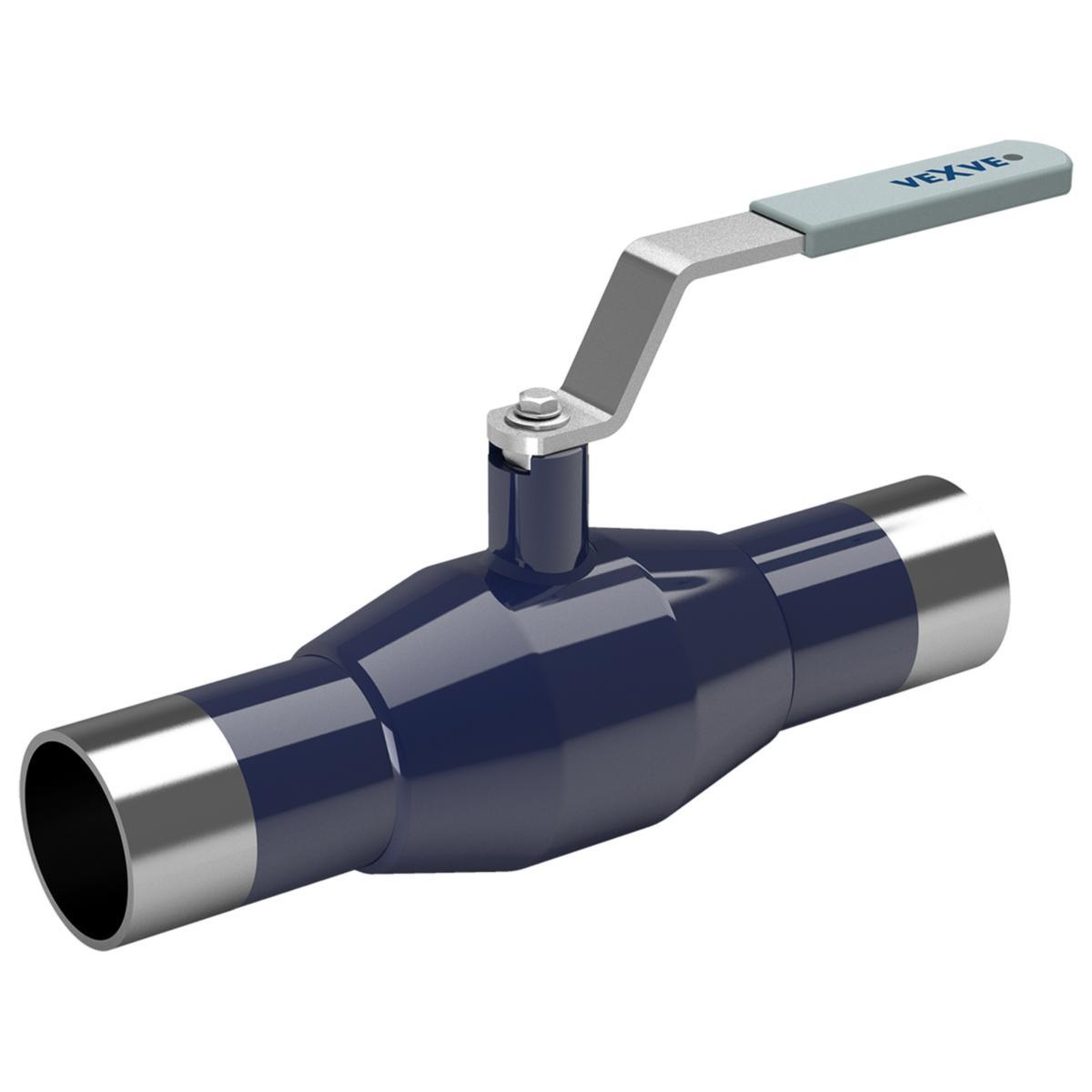

Fully welded ball valve, Vexve Series 100S, S-model in carbon steel with welding ends, reduced flow design
BALL VALVE RB STRONG DN100 WELD/WELD PN25
Article number: Suppl. article no:
4500486
100100/S
to see price and stock
Vexve ball valves are designed for optimal shut-off of both district heating networks and property systems for heating and cooling.
- Article number: 4500486
- Suppl. article no: 100100/S
- Ean no: 6415837551597
- Material class PIG130
Technical data
- Connection 1: Welded end
- Connection 2: Welded end
- Medium temperature (continuous): -20-200 °C
- Nominal diameter connection 1: DN 100
- Nominal diameter connection 2: DN 100
- Outer pipe diameter connection 1: 114.3 mm
- Outer pipe diameter connection 2: 114.3 mm
- Article compression class: PN 25
- Housing material: Steel
- Operation: Lever handle
