AhlsellProductsHeating and SanitationValves and measuring devicesValvesBall valvesSteel ball valvesBall valves weld ends/solder
Vexve

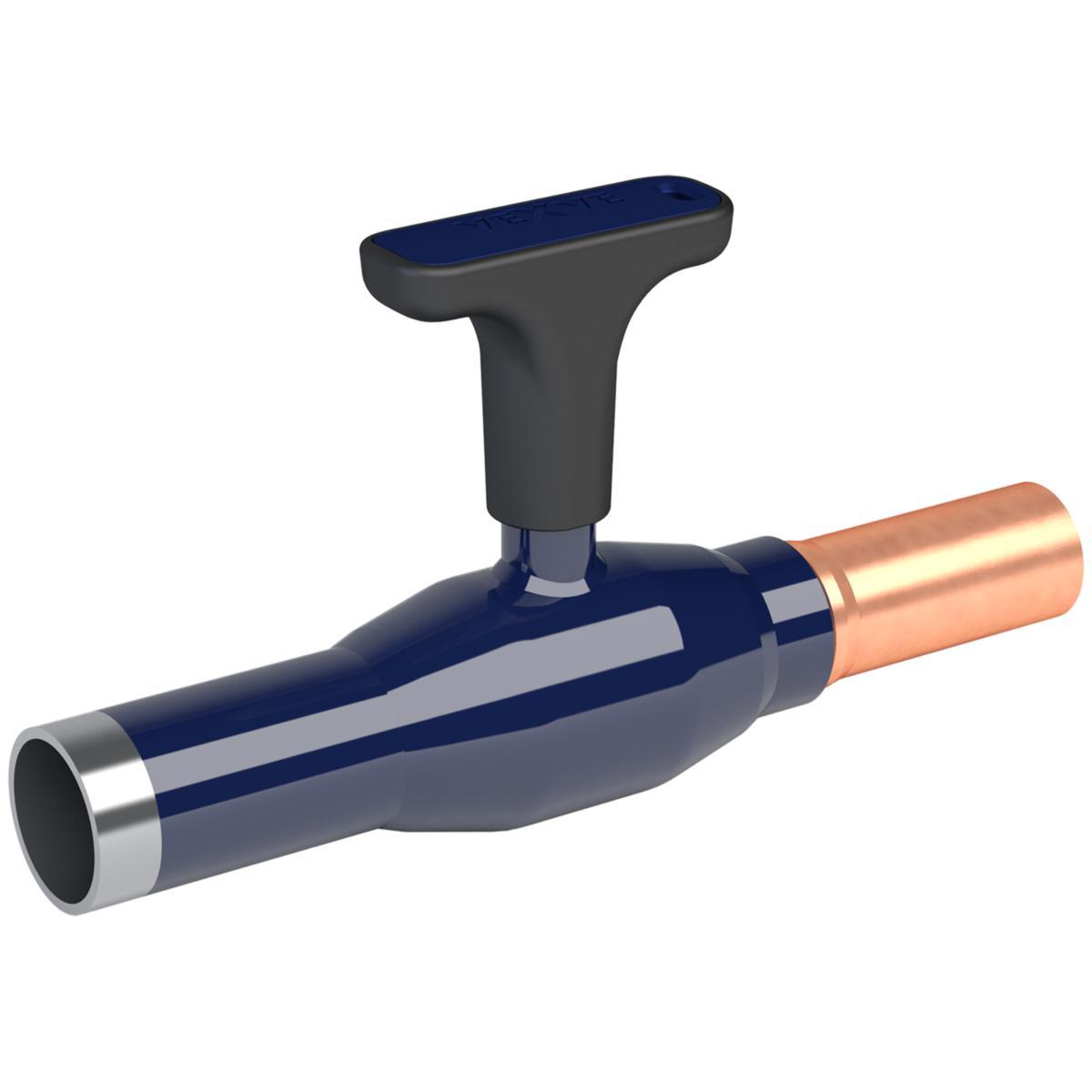

Fully welded ball valve, Vexve Series 301X, carbon steel, with weld end/solder connection, reduced flow design
DN32 BALL VALVE STEELL, P235GH WELDING/COPPER
Article number: Suppl. article no:
5495432
301032X
to see price and stock
Vexve ball valves are designed for optimal shut-off of both district heating networks and property systems for heating and cooling.
- Article number: 5495432
- Suppl. article no: 301032X
- Ean no: 6430079560558
- Replaces art.nbr: 4512152
- Material class PIG130
Technical data
- Connection 1: Welded end
- Connection 2: Soldered end
- Medium temperature (continuous): -20-200 °C
- Nominal diameter connection 1: DN 32
- Nominal diameter connection 2: DN 32
- Outer pipe diameter connection 1: 42.4 mm
- Outer pipe diameter connection 2: 35 mm
- Housing material: Steel
- Flange compression class: PN 16
- Operation: Lever handle
- REACH Date: 2022-05-08
- REACH Information obligation: No
