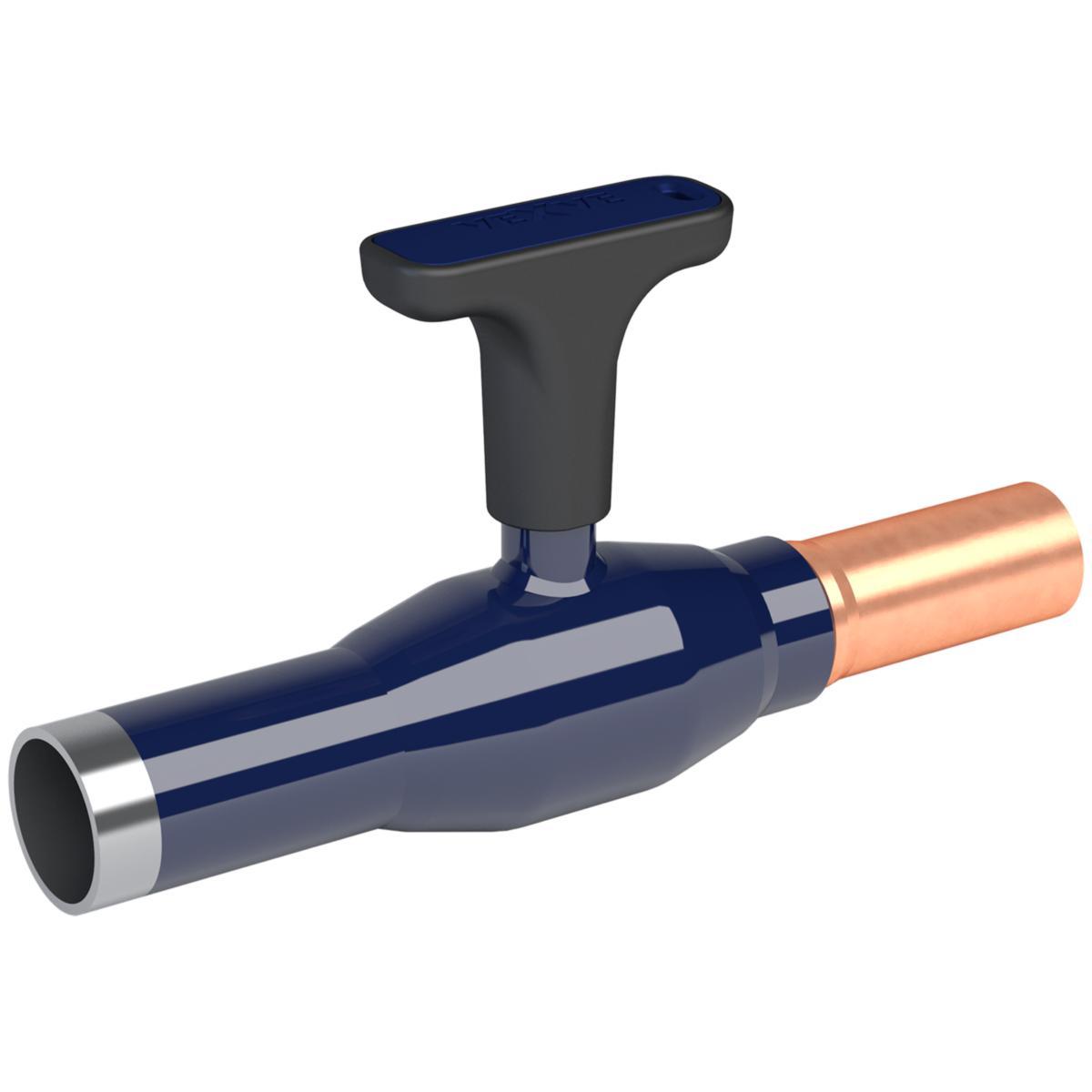

Fully welded ball valve, Vexve Series 301X, carbon steel, with weld end/solder connection, reduced flow design
DN25 BALL VALVE STEELL, P235GH WELDING/COPPER
Article number: Suppl. article no:
5495431
301025X/22
to see price and stock
Vexve ball valves are designed for optimal shut-off of both district heating networks and property systems for heating and cooling.
- Article number: 5495431
- Suppl. article no: 301025X/22
- Ean no: 6430079560541
- Material class PIG130
Technical data
- Packagin Size: 1 PCS/25 PCS
- Connection 1: Welded end
- Connection 2: Soldered sleeve
- Medium temperature (continuous): -20-200 °C
- Nominal diameter connection 1: DN 25
- Nominal diameter connection 2: DN 25
- Outer pipe diameter connection 1: 33.7 mm
- Outer pipe diameter connection 2: 22 mm
- Housing material: Steel
- Flange compression class: PN 16
- Operation: Lever handle
- REACH Date: 2022-05-08
- REACH Information obligation: No
