Vexve
Transition from steel (welding end P235GH) to copper (brazing EN1057:2006) Vexve series 735, Vexve

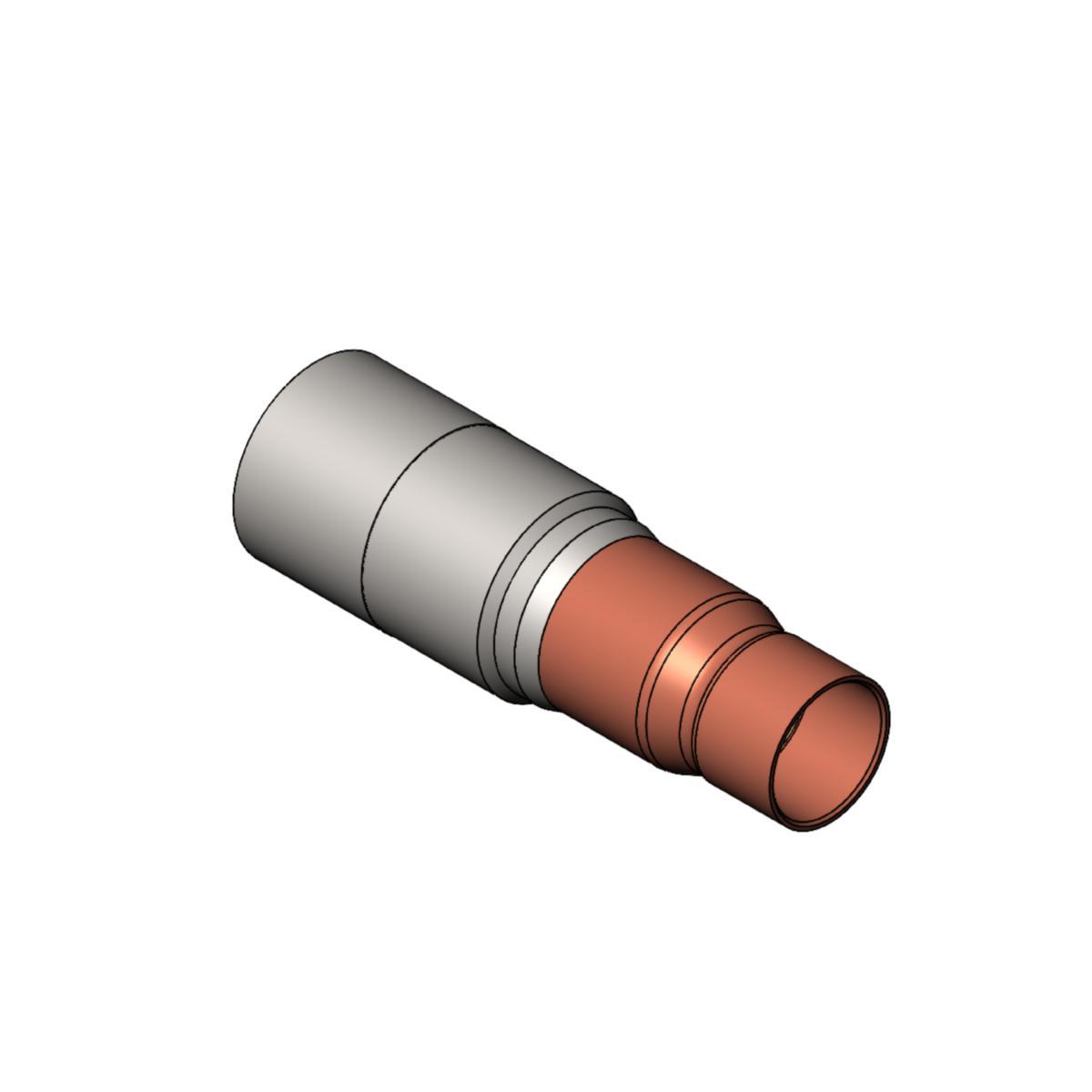

TRANSITION PART STEEL/COPPER 33,7MM X 22MM EXPANDED
Article number: Suppl. article no:
1374412
73519720X
to see price and stock
Steel/copper transition piece for district heating culvert.
- Article number: 1374412
- Suppl. article no: 73519720X
- Material class PIG130
Technical data
- Connection 1: Soldered sleeve
- Connection 2: Welding connection
- Outer pipe diameter connection 1: 22 mm
- Outer pipe diameter connection 2: 33.7 mm
- Nominal diameter connection 1: DN 25
- Nominal diameter connection 2: DN 25
- Shape: Straight
- Material connection 1: Copper
- Material connection 2: Steel
- REACH Date: 2024-08-21
- REACH Information obligation: No
