Vexve

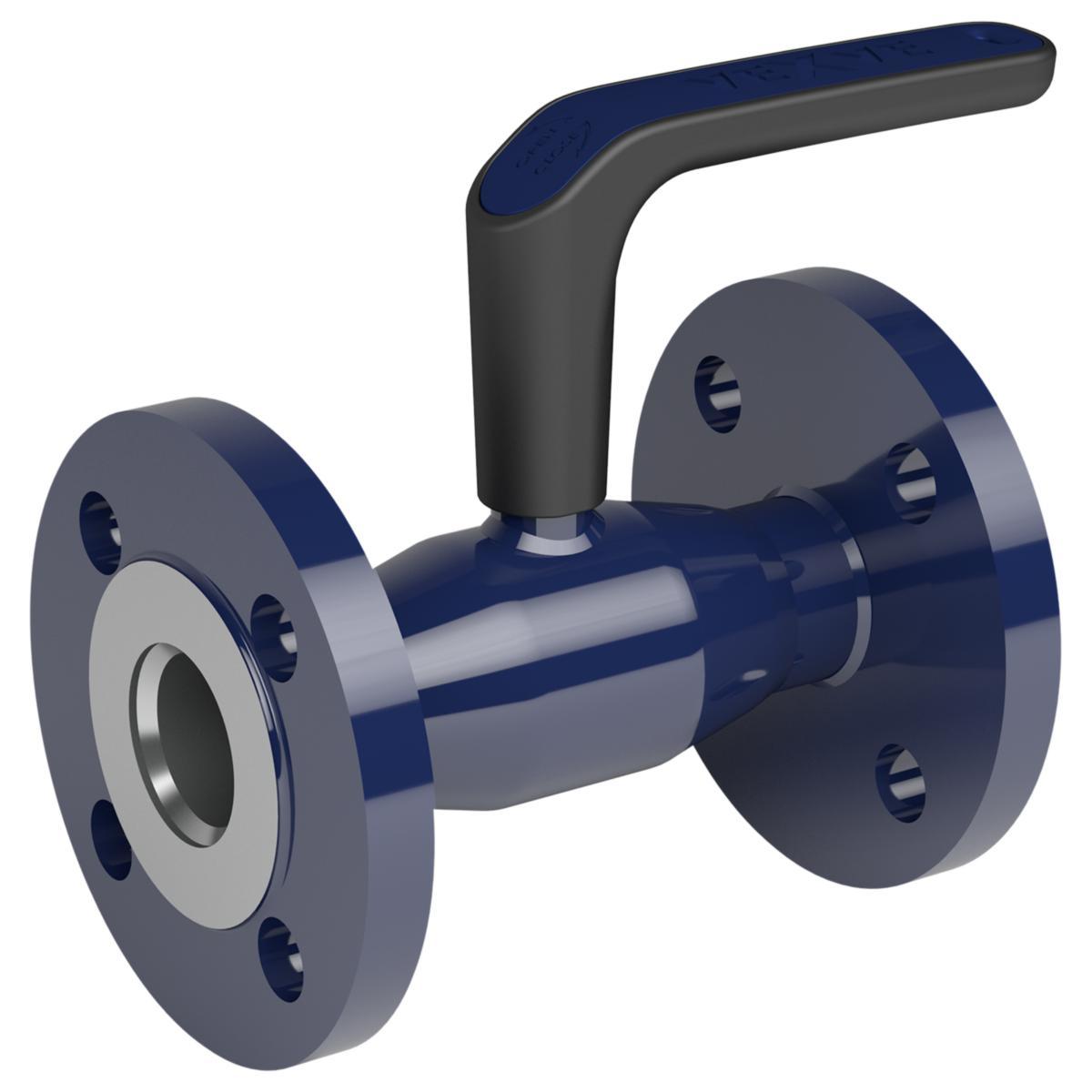

Fully welded ball valve, Vexve Series 103X, carbon steel with flanges, reduced flow design
STEEL BALL VALVE DN50 PN40 FLANGED
Article number: Suppl. article no:
5495174
103050X
to see price and stock
Vexve ball valves are designed for optimal shut-off of both district heating networks and property systems for heating and cooling.
- Article number: 5495174
- Suppl. article no: 103050X
- Ean no: 6415837556882
- Material class PIG130
Technical data
- Packagin Size: 1 PCS/4 PCS
- Connection 1: Flange
- Connection 2: Flange
- Medium temperature (continuous): -30-200 °C
- Nominal diameter connection 1: DN 50
- Nominal diameter connection 2: DN 50
- Outer pipe diameter connection 1: 165 mm
- Outer pipe diameter connection 2: 165 mm
- Article compression class: PN 40
- Grease-free: No
- Full bore: No
- Housing construction: 1-part
- Material ball: Stainless steel
- Material spindle: Stainless steel
- With drain valve: No
- Model: Straight
- Housing material: Steel
- Material quality: Other
- Material ball seal: Other
- Flange compression class: PN 40
- Handle height: 102 mm
- With thermometer: No
- With non-return valve: No
- With filter: No
- With insulation shell: No
- Surface protection housing: Primer
- Surface protection ball: Chromium-plated
- Handgrip length: 130 mm
- Operation: Lever handle
- Material primary spindle seal: Fluorelastomer rubber (FPM/FKM)
- With drain possibility (connection): No
- Medically clean: No
- REACH Date: 2022-03-29
- REACH Information obligation: No
