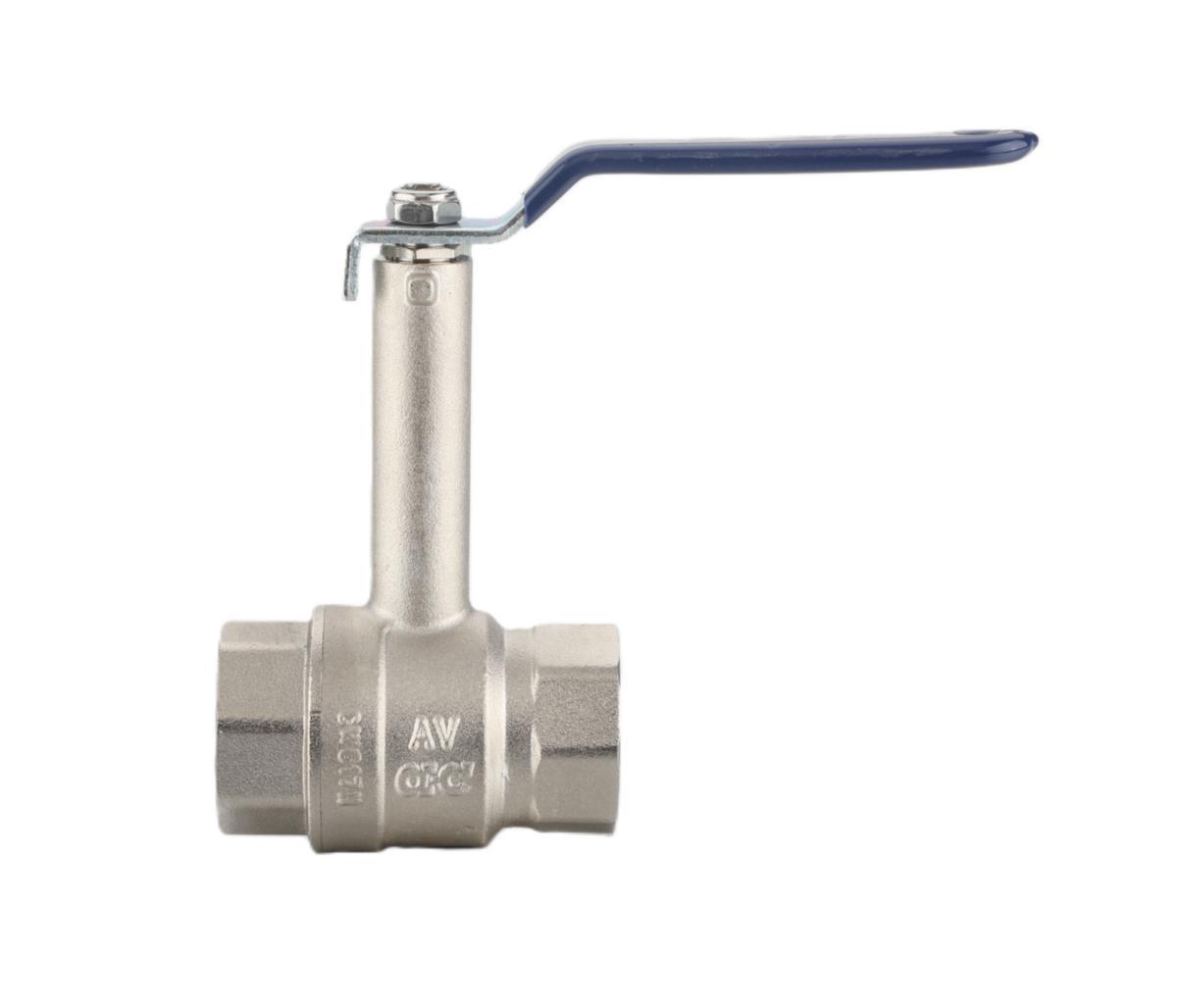

Ball Valve Avi 1333, a-collection
BALL VALVE AVI 1333 BRASS DN15 FEMALE THREAD HIGH NECK PN25
Article number: Suppl. article no:
4505813V
05.01.2219.284
to see price and stock
For heating/cooling systems, diesel, glycol, neutral fluids, and other materials that will not attack in the valve input material. In low-lead brass CW617N, and full throughflow.
- Article number: 4505813V
- Suppl. article no: 05.01.2219.284
- Ean no: 07340080730781
- Replaces art.nbr: 4505782 4505831V
- Material class PIB030
- This is an alternative to item 4501070
Technical data
- Packagin Size: 1 ST/6 ST/48 ST/1152 ST
- Nominal diameter connection 1: 1/2 inch (15)
- Nominal diameter connection 2: 1/2 inch (15)
- Medium temperature (continuous): -20-170 °C
- Article compression class: PN 25
- Length: 53 mm
- REACH contains candidate substances: Bly
- REACH Date: 2025-06-27
- Seals: Valve seat PTFE, Spindle seal HNBR
- REACH Information obligation: Yes
