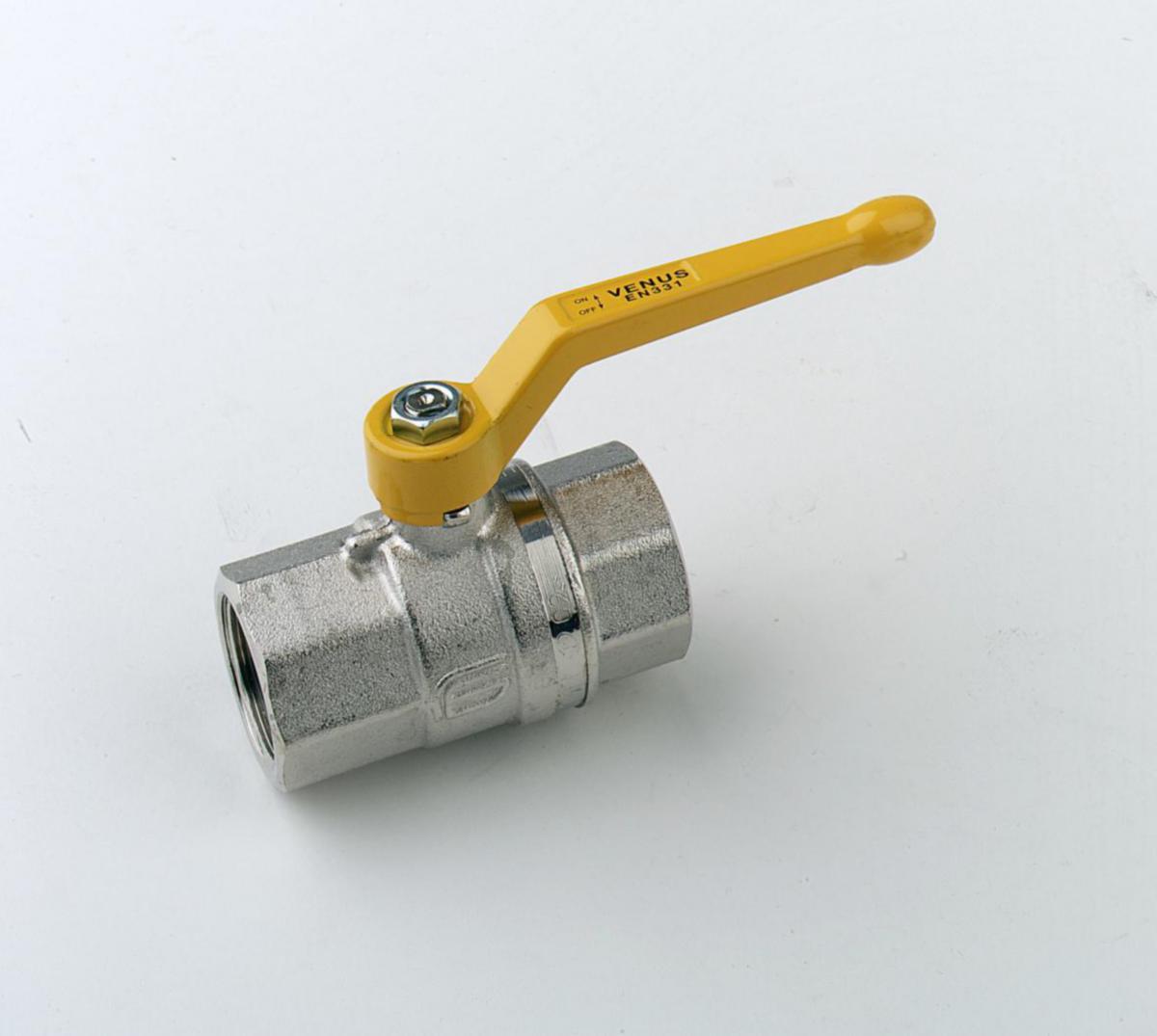

Ball Valve AVI 1390 G, a-collection
DN10 BALL VALVE AVI 1390G FOR GAS FAMILIES 1°. 2°. 3°
Article number: Suppl. article no:
4505715
1001G203
to see price and stock
Of brass, for butane and natural gas families 1˚2˚3˚ in accordance with EN437. With yellow lever.
- Article number: 4505715
- Suppl. article no: 1001G203
- Material class PIB020
Technical data
- Packagin Size: 1 ST/72 ST
- Nominal diameter connection 1: 3/8 inch (10)
- Nominal diameter connection 2: 3/8 inch (10)
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Medium temperature (continuous): 0-100 °C
- Length: 50 mm
- Design: Internal thread
- Housing material: Brass
- With non-return valve: No
- With filter: No
- With insulation shell: No
- With thermometer: No
- Surface protection housing: Nickel-plated
- Surface protection ball: None
- DVGW quality mark for gas: Yes
- DVGW quality mark for water: Yes
- Grease-free: Yes
- Full bore: No
- Housing construction: 1-part
- Operation: Lever handle
- Material ball: Stainless steel
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material spindle: Stainless steel
- Material primary spindle seal: Polytetrafluoroethylene (PTFE)
- Material quality: Dezincification resistant brass (DZR)
- With drain possibility (connection): No
- With drain valve: No
- With coupling connection 1: No
- With coupling connection 2: No
- Medically clean: No
- Model: Straight
- Article pressure rating: PN 6
- Flange pressure rating: PN 6
- Angle of the valve: 0 °
- REACH Date: 2025-06-27
- REACH contains candidate substances: Bly
- Type: AVi 1390-G
- REACH Information obligation: Yes
