Vatette

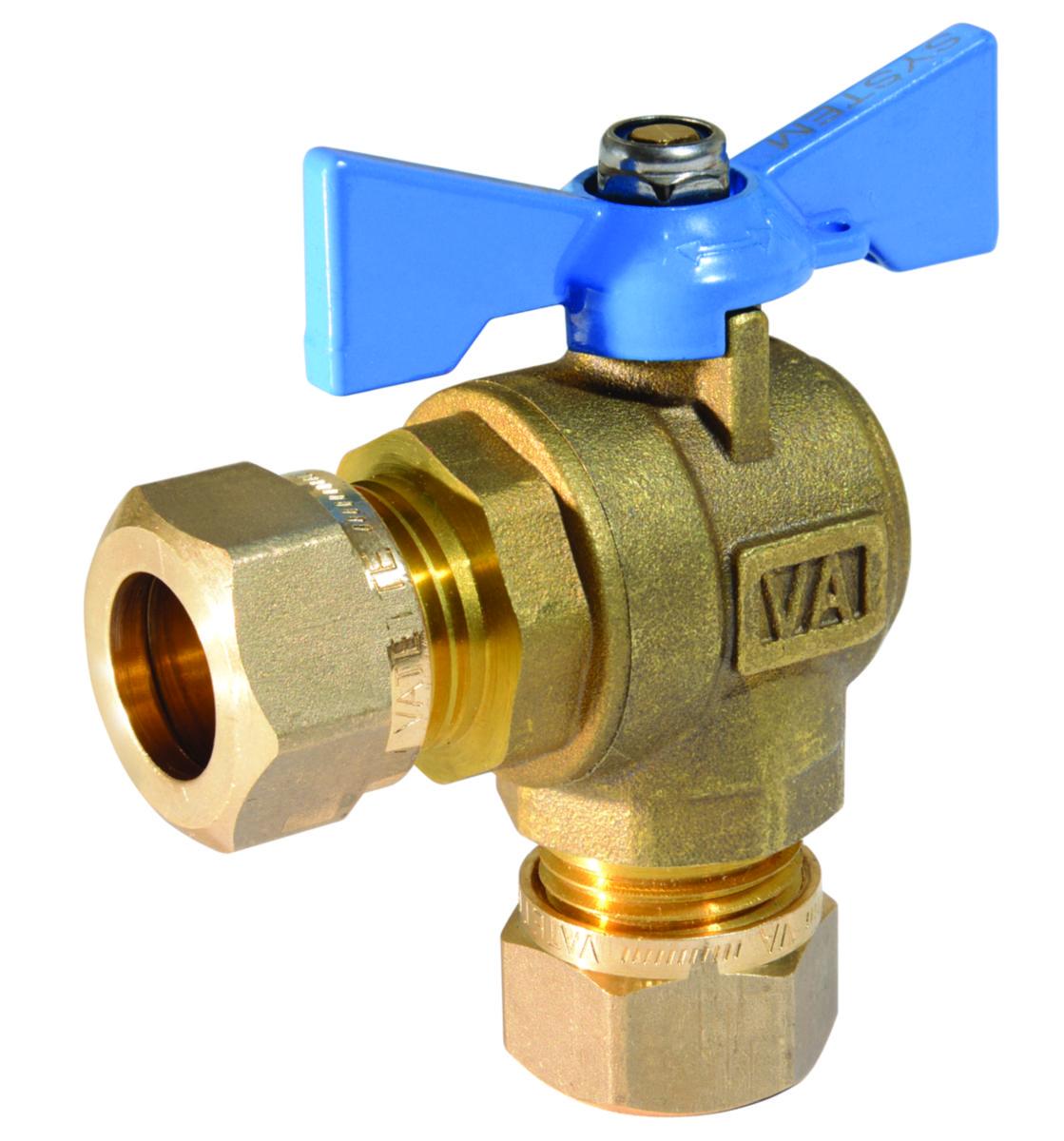

Ball valve angle 22mm clutch coupling-Vatette
VATETTE FULLPOR VAL KNE DN15 BLUE HANDLE
Article number: Suppl. article no:
8547106
FG084050042
to see price and stock
- Article number: 8547106
- Suppl. article no: FG084050042
- Ean no: 7393792104944
- Material class PIB110
Technical data
- Connection 1: Compression ring
- Connection 2: Compression ring
- Nominal diameter connection 1: DN 15
- Nominal diameter connection 2: DN 15
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 15 mm
- Article compression class: PN 16
- Operation: Turn button
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material quality: Dezincification resistant brass (DZR)
- Housing material: Brass
- Full bore: Yes
- Material ball: Stainless steel
- Material spindle: Brass
- Material primary spindle seal: NBR (nitrile rubber)
- Material secondary spindle seal: NBR (nitrile rubber)
- Max. pressure difference at 20 °C: 16 bar
- Model: Right-angled
- REACH Date: 2024-10-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
