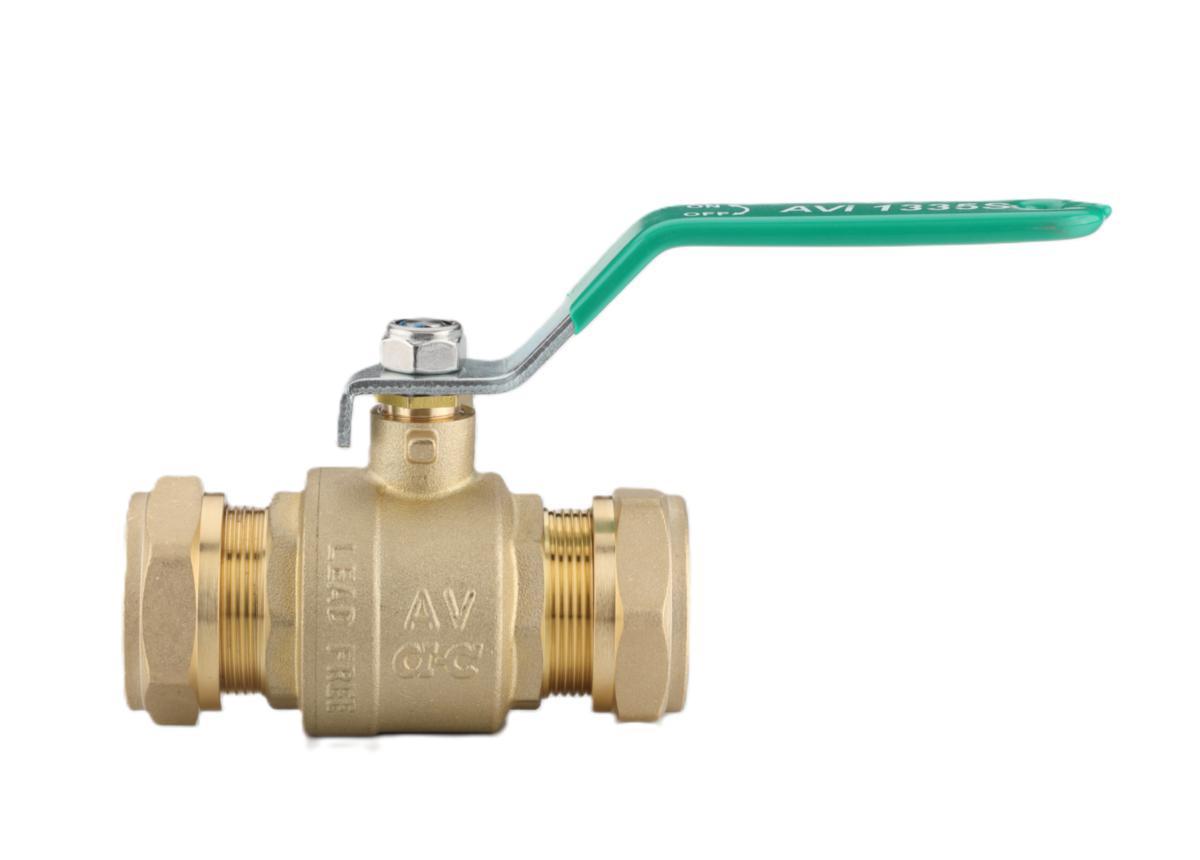

Ball Valve AVI 1335-S Lead-Free, a-collection
35 BALLVALVE AVI 1335S NO LEAD BRASS COMPRESSION PN16
Article number:
5495068
to see price and stock
For tap water heating / cooling system, diesel, glycol, neutral liquids, other media that do not attack the valve material. In lead-free brass, and full passage.
- Article number: 5495068
- Ean no: 7333123865595
- Replaces art.nbr: 4508278 4508352V
- Material class PIB050
- This is an alternative to item 4510235
Technical data
- Packagin Size: 1 ST/2 ST/24 ST/432 ST
- Connection 1: Compression ring
- Connection 2: Compression ring
- Nominal diameter connection 1: DN 32
- Outer pipe diameter connection 1: 35 mm
- Outer pipe diameter connection 2: 35 mm
- Length: 87 mm
- Article compression class: PN 16
- Operation: Lever handle
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material quality: Dezincification resistant brass (DZR)
- Housing material: Brass
- Medium temperature (continuous): -20-170 °C
- Full bore: Yes
- Grease-free: No
- Material ball: Stainless steel
- Material spindle: Stainless steel
- Material primary spindle seal: Polytetrafluoroethylene (PTFE)
- With drain valve: No
- With drain possibility (connection): No
- With coupling connection 1: Yes
- With coupling connection 2: Yes
- Medically clean: No
- Model: Straight
- Housing construction: 2-part
- With non-return valve: No
- With filter: No
- With insulation shell: No
- With thermometer: No
- Surface protection housing: None
- Surface protection ball: None
- DVGW quality mark for gas: No
- Flange compression class: PN 16
- Angle of the valve: 0 °
- DVGW quality mark for water: Yes
- REACH Date: 2025-07-03
- GWP-tot (A1-A3): 5,3727 kgCO2e/ST
- REACH Information obligation: No
