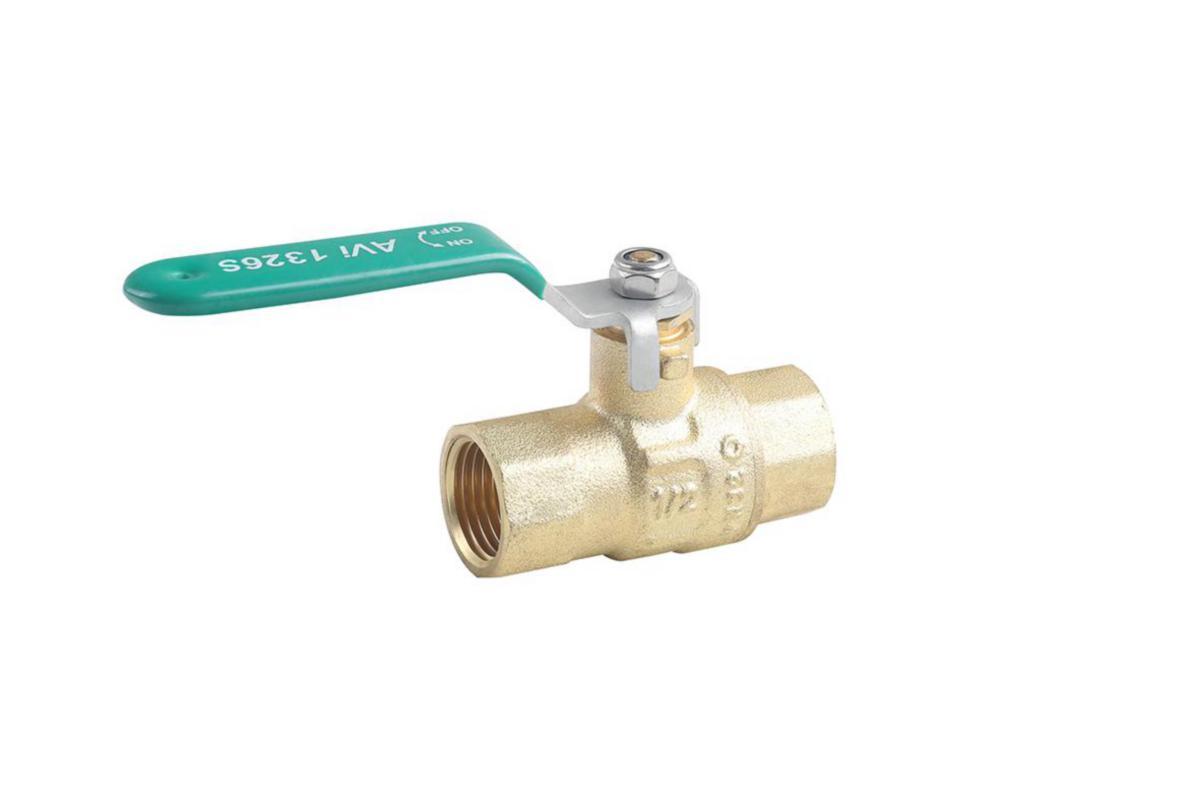

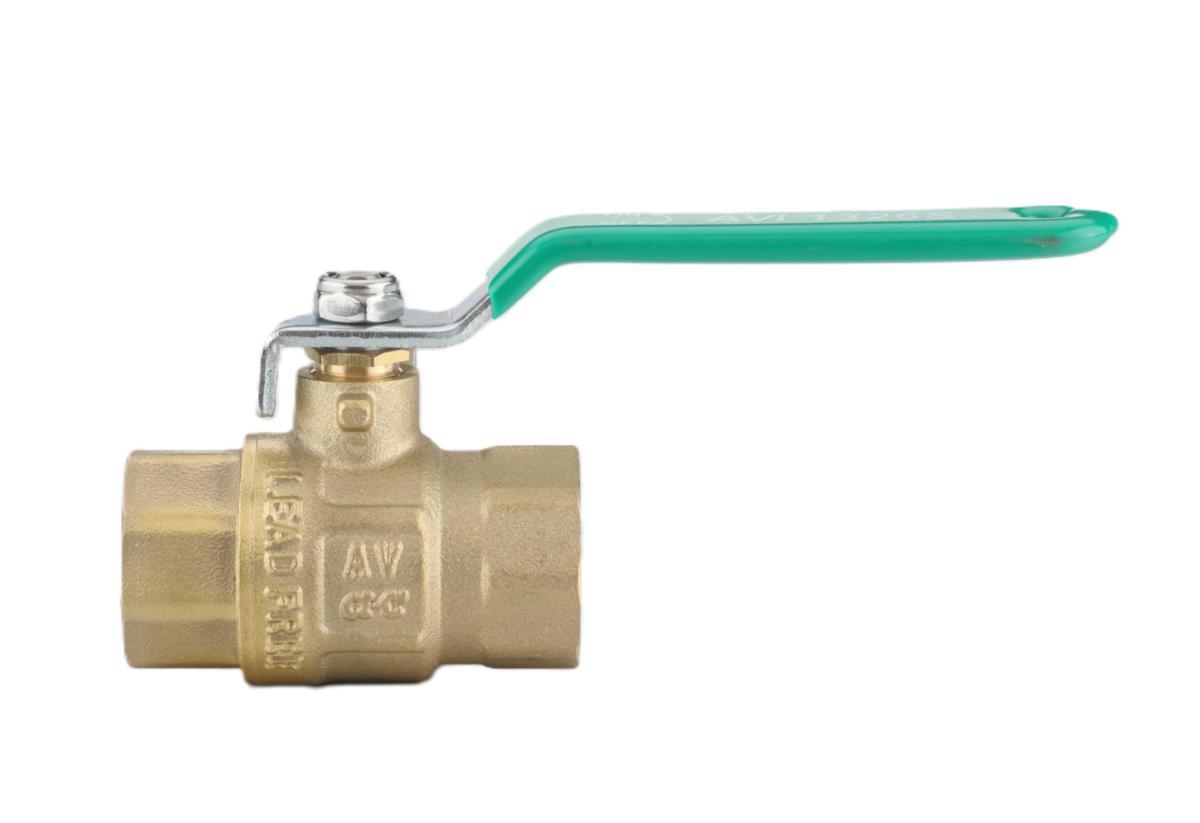

Ball Valve AVI 1326-S Lead-Free, A-collection
40 BALL VALVE AVI 1326S LEADF BRASS FEMALE THR. PN 25
Article number: Suppl. article no:
5494775
5494775
to see price and stock
- Article number: 5494775
- Suppl. article no: 5494775
- Ean no: 7333123054050
- Replaces art.nbr: 4510249
- Material class PIB050
Technical data
- Packagin Size: 1 PCS/2 PCS/24 PCS/432 PCS
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 1: 1 1/2 inch (40)
- Nominal diameter connection 2: 1 1/2 inch (40)
- Length: 106 mm
- Article compression class: PN 25
- Operation: Lever handle
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material quality: Dezincification resistant brass (DZR)
- Housing material: Brass
- Medium temperature (continuous): -20-170 °C
- Full bore: Yes
- Grease-free: No
- Material ball: Stainless steel
- Material spindle: Stainless steel
- Material primary spindle seal: Polytetrafluoroethylene (PTFE)
- With drain valve: No
- With drain possibility (connection): No
- With coupling connection 1: No
- With coupling connection 2: No
- Medically clean: No
- Model: Straight
- Housing construction: 2-part
- With non-return valve: No
- With filter: No
- With insulation shell: No
- With thermometer: No
- Surface protection housing: None
- Surface protection ball: None
- DVGW quality mark for gas: No
- DVGW quality mark for water: Yes
- REACH Date: 2026-03-18
- GWP-tot (A1-A3): 7,072 kgCO2e/ST
- REACH Information obligation: No
