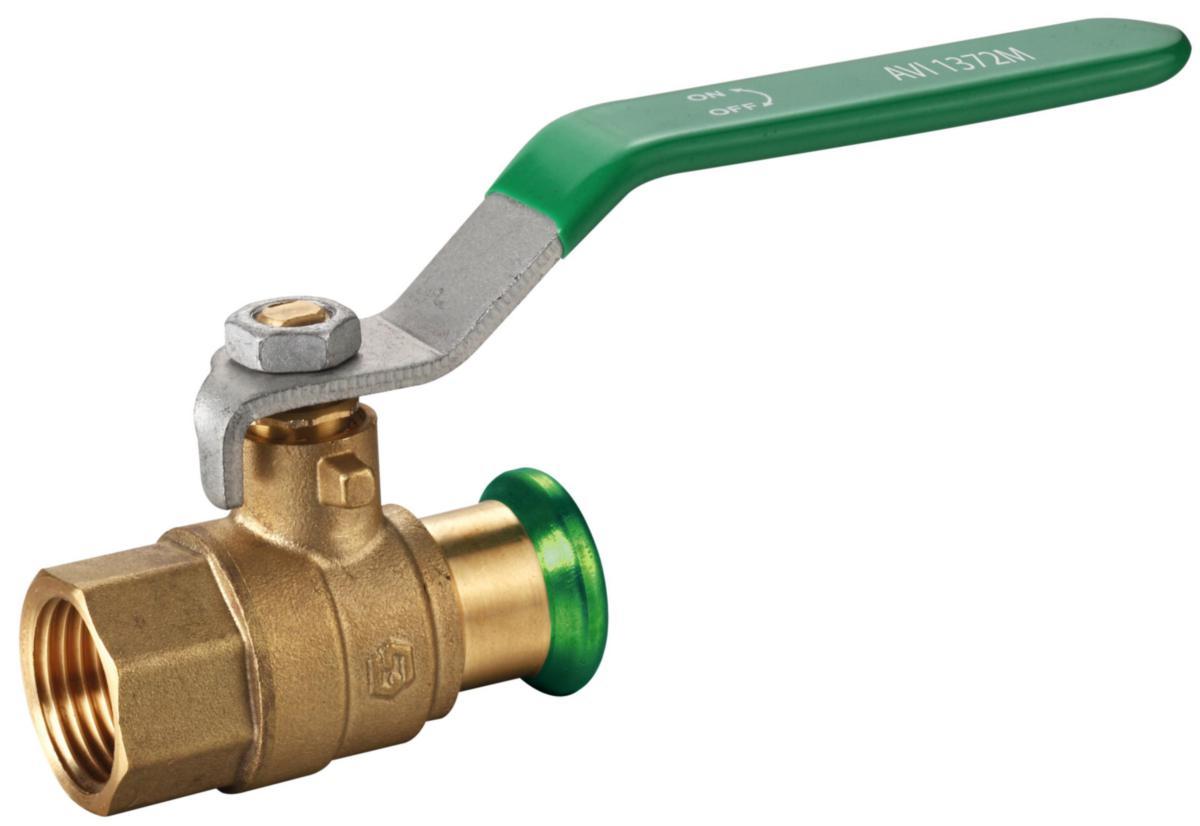

Ball Valve AVI 1372M Press/Internal Thread M-Profile PN25, a-collection
KULVENTIL AVI 1372M G20x22MM PRESS/FEMALE M-PROFILE PN25
Article number:
5493379
to see price and stock
Ball valve in low lead brass CW511L with full through hole and leakage indicator, spindle seal in HNBR, tap water approved.
Must be pressed with M-profile jaws.
Must be pressed with M-profile jaws.
- Article number: 5493379
- Ean no: 7340080788850
- Material class PIB030
Technical data
- Packagin Size: 1 ST/4 ST
- Connection 1: Press sleeve
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 1: DN 20
- Nominal diameter connection 2: 3/4 inch (20)
- Outer pipe diameter connection 1: 22 mm
- Length: 68 mm
- Article compression class: PN 25
- Operation: Lever handle
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material quality: Dezincification resistant brass (DZR)
- Housing material: Brass
- Medium temperature (continuous): -20-150 °C
- Full bore: No
- Grease-free: No
- Material ball: Stainless steel
- Material spindle: Stainless steel
- Material primary spindle seal: Polytetrafluoroethylene (PTFE)
- With drain valve: No
- With drain possibility (connection): No
- With coupling connection 1: No
- With coupling connection 2: No
- Medically clean: No
- Model: Straight
- Housing construction: 1-part
- Contour code connection 1: M
- With non-return valve: No
- With filter: No
- With insulation shell: No
- With thermometer: No
- Surface protection housing: None
- Surface protection ball: None
- DVGW quality mark for gas: No
- Flange compression class: PN 25
- Angle of the valve: 0 °
- DVGW quality mark for water: Yes
