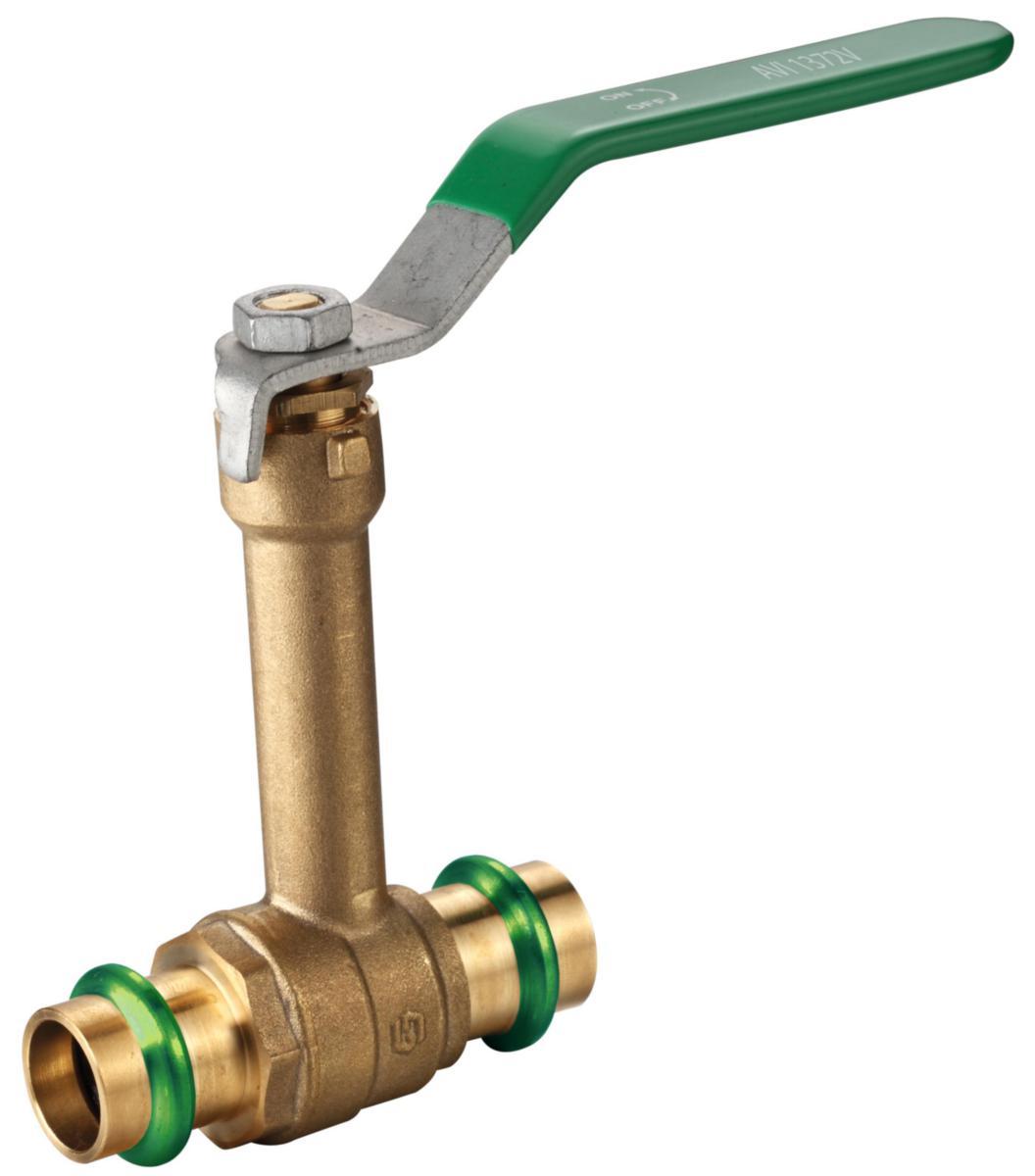

Ball Valve AVI 1372V Press/Press V-Profile High Neck PN25, a-collection
BALL VALVE AVI 1372V 42X42MM PRESS/PRESS V-PROFIL.HIGH PN25
Article number:
5493346
to see price and stock
Ball valve in low lead brass CW511L with full through hole and leakage indicator, spindle seal in HNBR and high neck adapted to insulation requirements. Tap water approved. Must be pressed with V-profile jaws.
- Article number: 5493346
- Ean no: 7340080788539
- Material class PIB030
Technical data
- Packagin Size: 1 ST/3 ST
- Connection 1: Press sleeve
- Connection 2: Press sleeve
- Nominal diameter connection 1: DN 40
- Outer pipe diameter connection 1: 42 mm
- Outer pipe diameter connection 2: 42 mm
- Length: 136 mm
- Article compression class: PN 25
- Operation: Lever handle
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material quality: Dezincification resistant brass (DZR)
- Housing material: Brass
- Medium temperature (continuous): -20-150 °C
- Full bore: No
- Grease-free: No
- Material ball: Stainless steel
- Material spindle: Stainless steel
- Material primary spindle seal: Polytetrafluoroethylene (PTFE)
- With drain valve: No
- With drain possibility (connection): No
- With coupling connection 1: No
- With coupling connection 2: No
- Medically clean: No
- Model: Straight
- Housing construction: 1-part
- Contour code connection 1: V
- Contour code connection 2: V
- With non-return valve: No
- With filter: No
- With insulation shell: No
- With thermometer: No
- Surface protection housing: None
- Surface protection ball: None
- DVGW quality mark for gas: No
- Flange compression class: PN 25
- Angle of the valve: 0 °
- DVGW quality mark for water: Yes
