Vatette

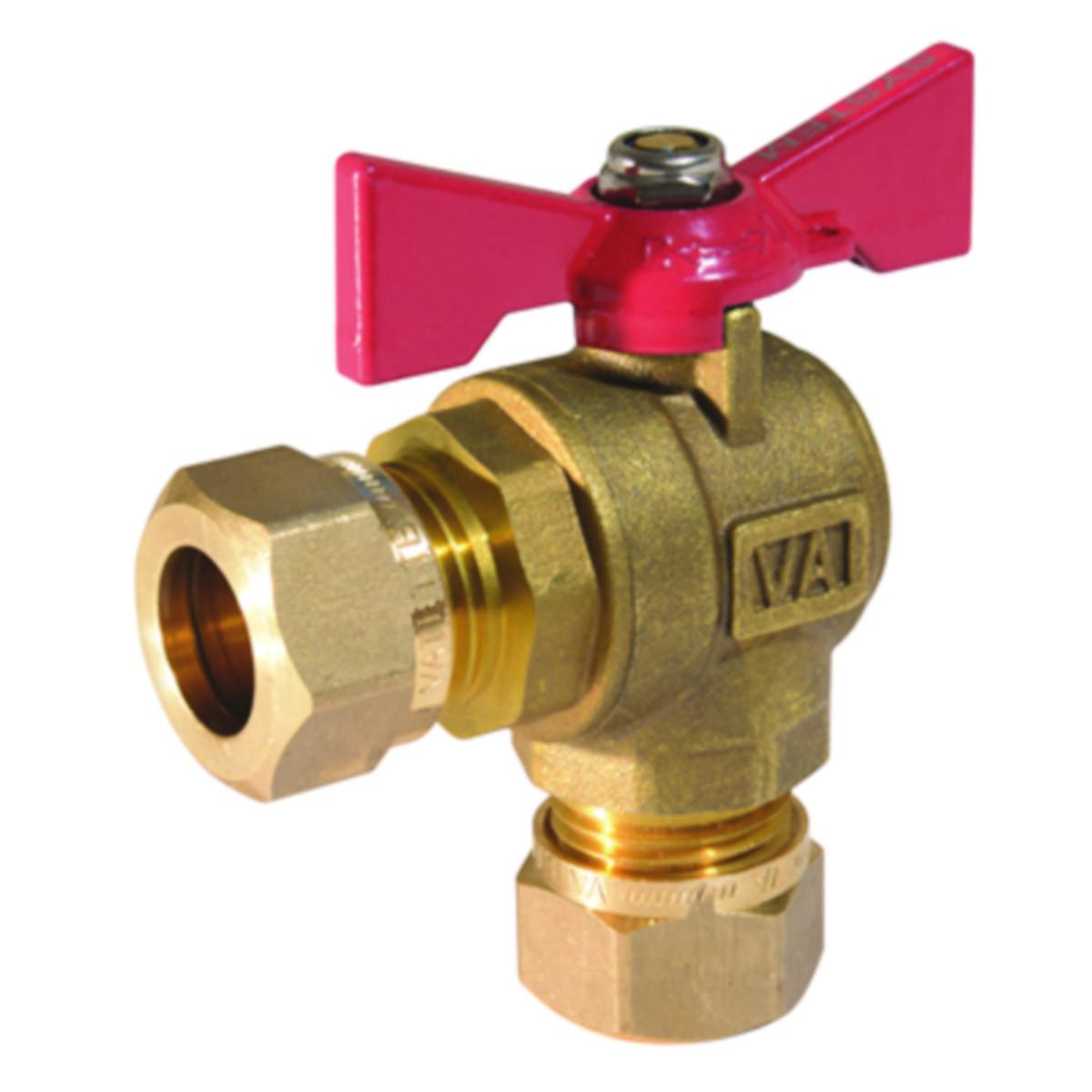

Ball valve angle 22mm clutch coupling-Vatette
BALL VALVE ANGLE T-HANDLE RED 22MM COMP/COMP PN16
Article number: Suppl. article no:
5493209
FG084110041
to see price and stock
- Article number: 5493209
- Suppl. article no: FG084110041
- Ean no: 7393792105071
- Material class PIB110
Technical data
- Packagin Size: 1 ST/10 ST
- Connection 1: Compression ring
- Connection 2: Compression ring
- Nominal diameter connection 1: DN 20
- Nominal diameter connection 2: DN 20
- Outer pipe diameter connection 1: 22 mm
- Outer pipe diameter connection 2: 22 mm
- Article compression class: PN 16
- Operation: Turn button
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material quality: Dezincification resistant brass (DZR)
- Housing material: Brass
- Full bore: Yes
- Material ball: Stainless steel
- Material spindle: Brass
- Material primary spindle seal: NBR (nitrile rubber)
- Material secondary spindle seal: NBR (nitrile rubber)
- Max. pressure difference at 20 °C: 16 bar
- Model: Right-angled
- REACH Date: 2022-05-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
