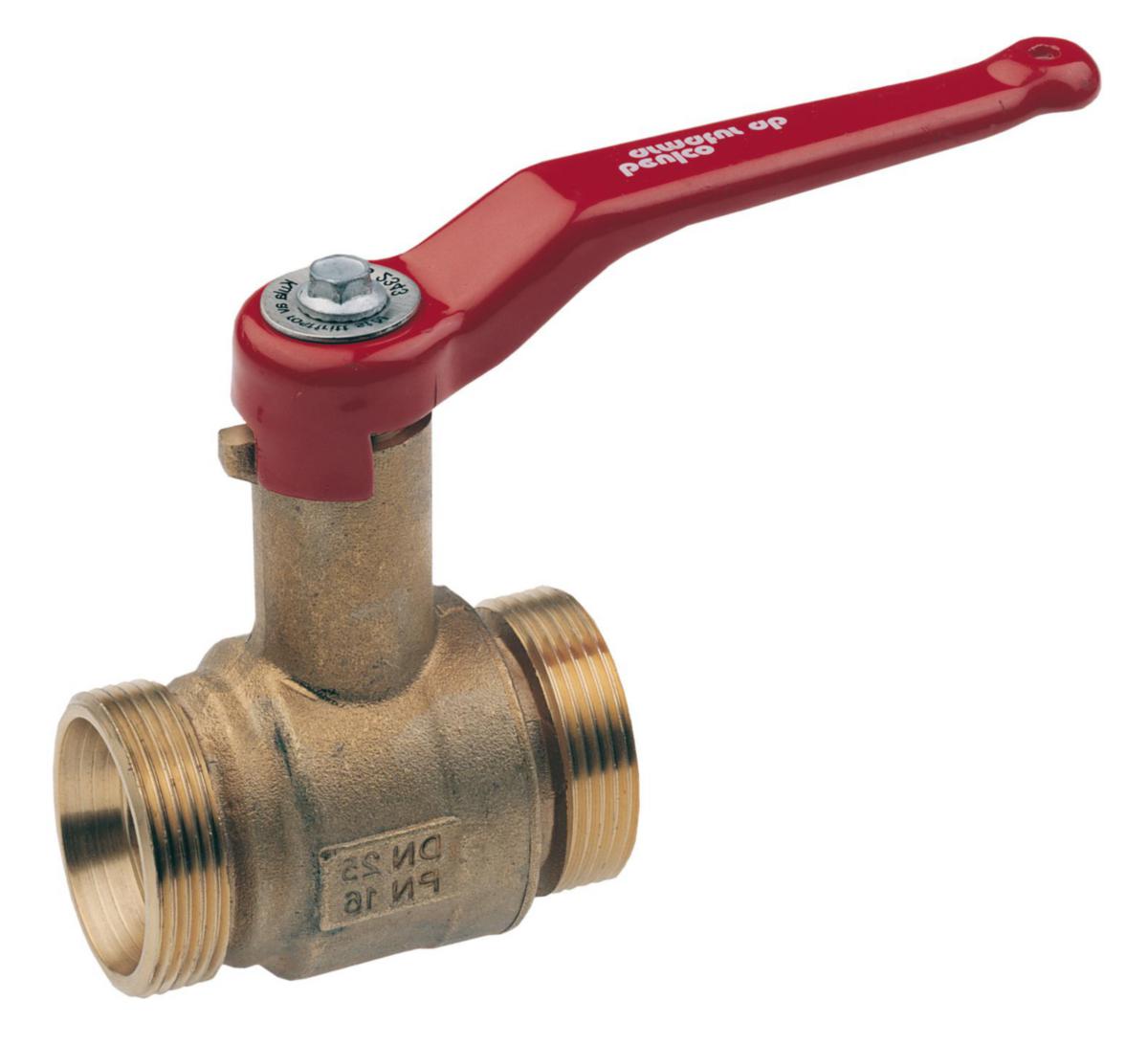

Ball Valve BA 3450S High Neck without Soldering, Beulco
BALL VALVE WITH HANDLE G15 BA3450S HIGH NECK NO SOLDER
Article number: Suppl. article no:
4510238
0434501500
to see price and stock
Ball valve with external thread in dezincification resistant brass for couplings. PN16
- Article number: 4510238
- Suppl. article no: 0434501500
- Ean no: 7331807035197
- Material class PIB100
Technical data
- Packagin Size: 1 ST/15 ST
- Connection 1: External thread metric
- Connection 2: External thread metric
- Nominal diameter connection 1: DN 15
- Nominal diameter connection 2: DN 15
- Outer pipe diameter connection 1: 26 mm
- Outer pipe diameter connection 2: 26 mm
- Article compression class: PN 16
- Operation: Lever handle
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material quality: Dezincification resistant brass (DZR)
- Full bore: Yes
- Grease-free: No
- Material ball: Brass
- Material spindle: Brass
- Material primary spindle seal: Polytetrafluoroethylene (PTFE)
- Material secondary spindle seal: Polytetrafluoroethylene (PTFE)
- Max. pressure difference at 20 °C: 16 bar
- With drain valve: No
- With drain possibility (connection): No
- With coupling connection 1: No
- With coupling connection 2: No
- Medically clean: No
- Model: Straight
- Fire-safe: No
- FM quality mark: No
- Housing construction: 1-part
- LPCB quality mark: No
- UL quality mark: No
- ULC quality mark: No
- REACH Date: 2023-05-12
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
