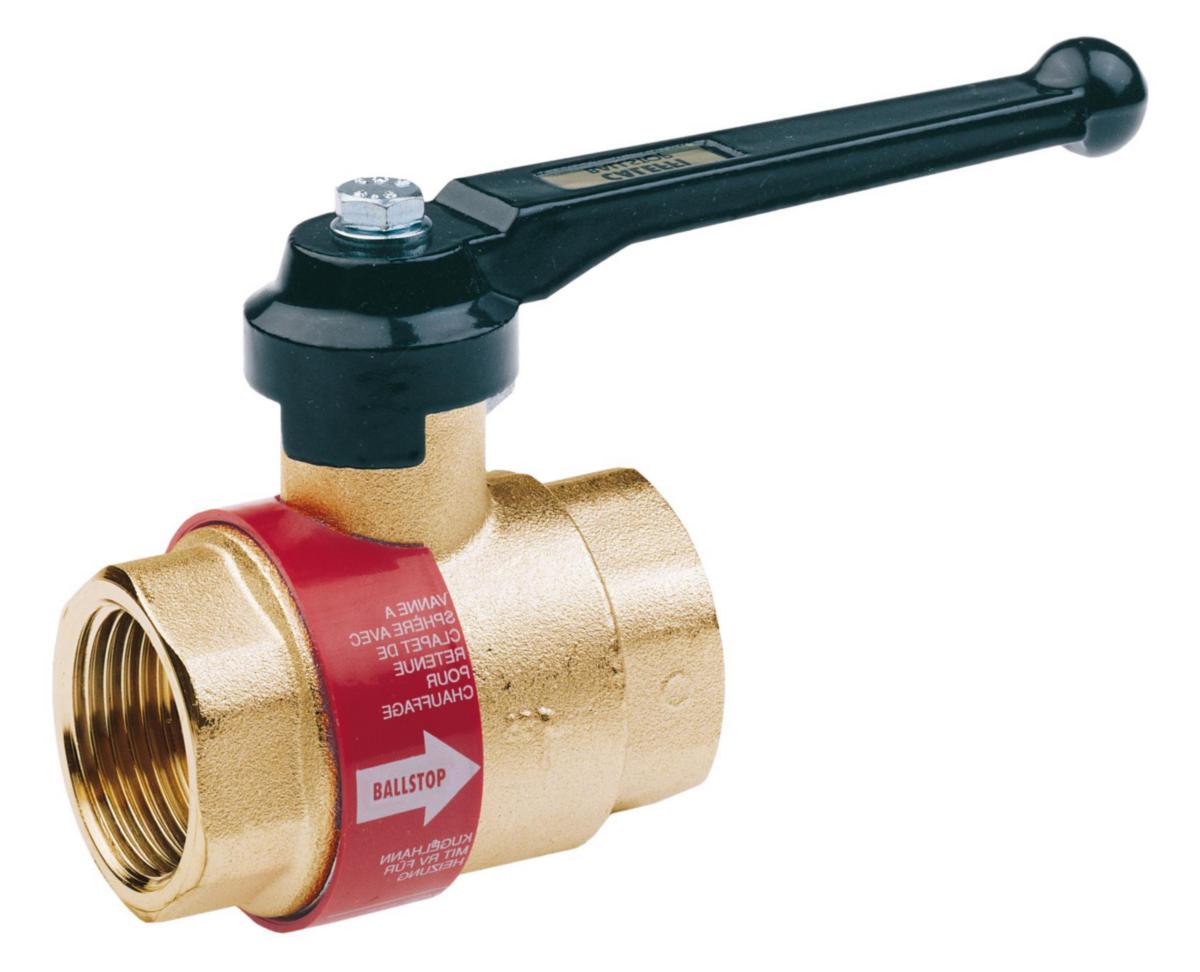

Ball check valve BA 323, Beulco
BALL CHECK VALVE FEMALE DN20 BRASS PN16
Article number: Suppl. article no:
4500775
0432320000
to see price and stock
Ball check valve in yellow brass, internal thread with lever or knob.
- Article number: 4500775
- Suppl. article no: 0432320000
- Ean no: 7331807034176
- Material class PIB900
Technical data
- Nominal diameter connection 1: 3/4 inch (20)
- Outer pipe diameter connection 1: 20 mm
- Nominal diameter connection 2: 3/4 inch (20)
- Outer pipe diameter connection 2: 20 mm
- Connection 1: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Connection 2: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material quality: CuZn40Pb2 (CW617N)
- Surface protection housing: None
- Material ball: Brass
- Material spindle: Brass
- Material secondary spindle seal: Polytetrafluoroethylene (PTFE)
- Material primary spindle seal: Polytetrafluoroethylene (PTFE)
- Article compression class: PN 16
- Medium temperature (continuous): 5-90 °C
- Max. pressure difference at 20 °C: 16 bar
- Housing material: Brass
- Model: Straight
- Full bore: Yes
- Sealing: Polytetrafluoroethylene (PTFE)
- With drain valve: No
- With drain possibility (connection): No
- Operation: Turn button
- Medically clean: No
- Grease-free: No
- Fire-safe: No
- LPCB quality mark: No
- ULC quality mark: No
- UL quality mark: No
- FM quality mark: No
- Housing construction: 2-part
- With coupling connection 2: No
- With coupling connection 1: No
- KIWA certified: No
- With filter: No
- With insulation shell: No
- With thermometer: No
- Type approval according to BBR/EKS: No
- VdS quality mark: No
- Surface protection ball: Chromium-plated
- With non-return valve: Yes
- DVGW quality mark for water: No
- Kvs value: 7
- Contour code connection 1: Other
- Contour code connection 2: Other
- DVGW quality mark for gas: No
- REACH Date: 2021-10-29
- REACH Information obligation: No
