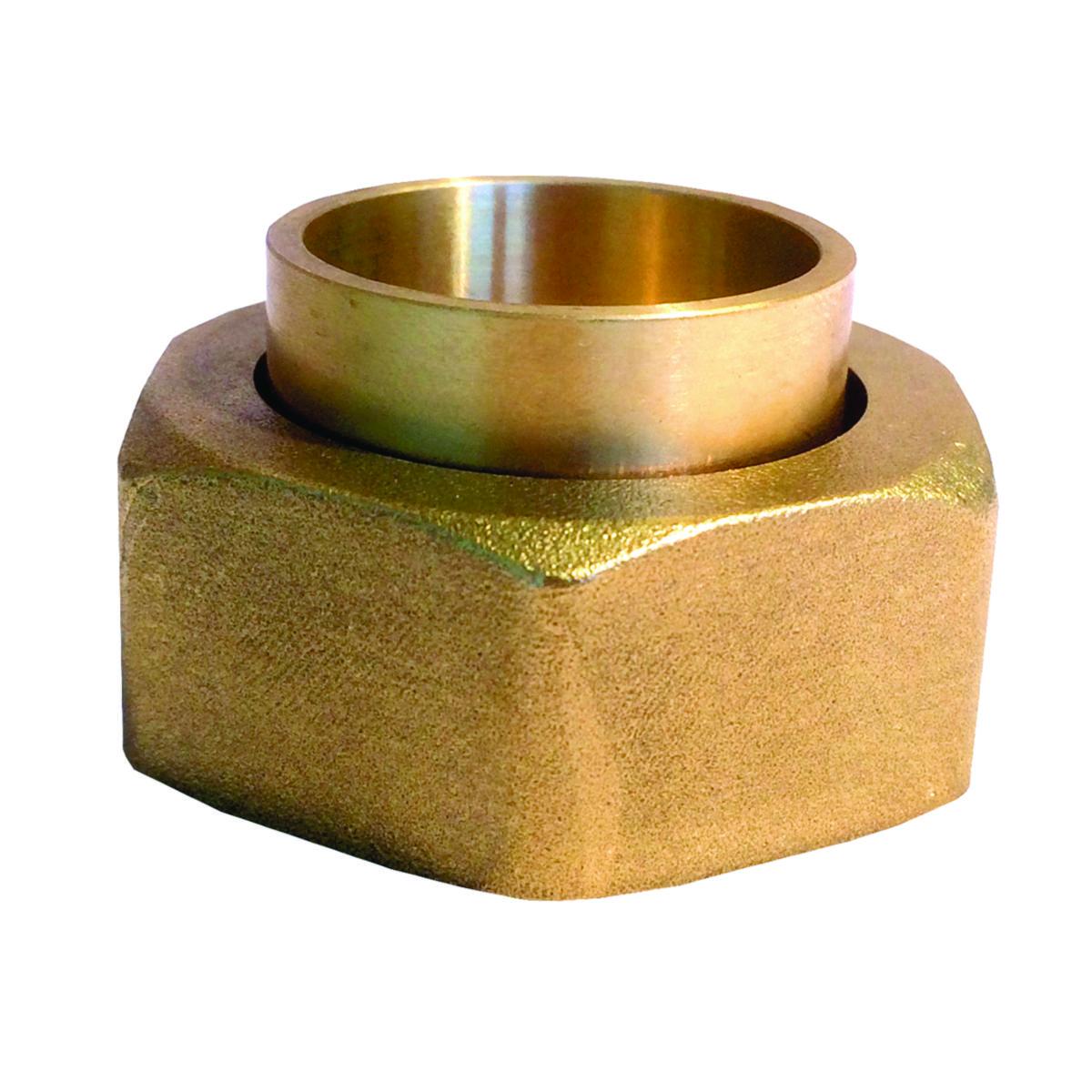

Soldering coupling for Ball Valve AVI 1373, a-collection
SOLDER COUPLING VALVE AVI 1373 10MM WITH NUT M26X1.5
Article number:
3481691
The selected article has been replaced.
Solder coupling with nut for ball valve AVI 1373
- Article number: 3481691
- Ean no: 7340080788218
- Replaces art.nbr: 19157700
- Material class PIB030
Technical data
- Packagin Size: 1 ST/32 ST
- Connection 1: Soldered sleeve
- Connection 2: Union nut
- Nominal diameter connection 1: DN 15
- Nominal diameter connection 2: DN 15
- Outer pipe diameter connection 1: 10 mm
- Outer pipe diameter connection 2: 26 mm
- Material connection 1: Brass
- Material connection 2: Brass
- Max. operating pressure at 20 °C: 16 bar
- Medium temperature (continuous): 0-150 °C
