Vexve

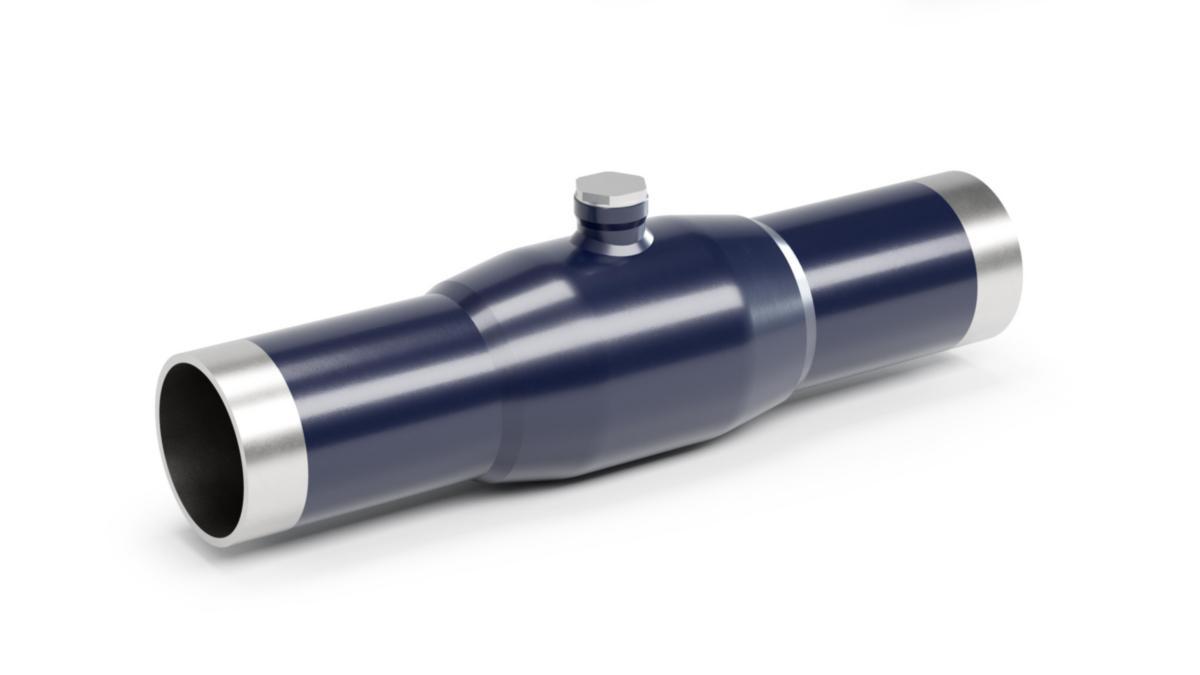

Fully welded disposable valve, made by Vexve, Series 120, in carbon steel with welding ends, reduced flow design
DN 20 BALL VALVE PN40 STEEL WELD/WELD
Article number: Suppl. article no:
4512185
120020
to see price and stock
Disposable valves are installed to prepare the pipeline network for future connections. When a new pipeline network is connected, the valve is opened once and becomes part of the new insulated pipeline network.
- Article number: 4512185
- Suppl. article no: 120020
- Replaces art.nbr: 4512167
- Material class PIG130
Technical data
- Connection 1: Welded end
- Connection 2: Welded end
- Medium temperature (continuous): -20 - +200 °C
- Nominal diameter connection 1: DN 20
- Nominal diameter connection 2: DN 20
- Outer pipe diameter connection 1: 26.9 mm
- Outer pipe diameter connection 2: 26.9 mm
- Construction length: 230 mm
- Article compression class: PN 40
- Material ball: Stainless steel
- Material spindle: Stainless steel
- Housing material: Steel
- Material ball seal: Polytetrafluoroethylene (PTFE)
