LK

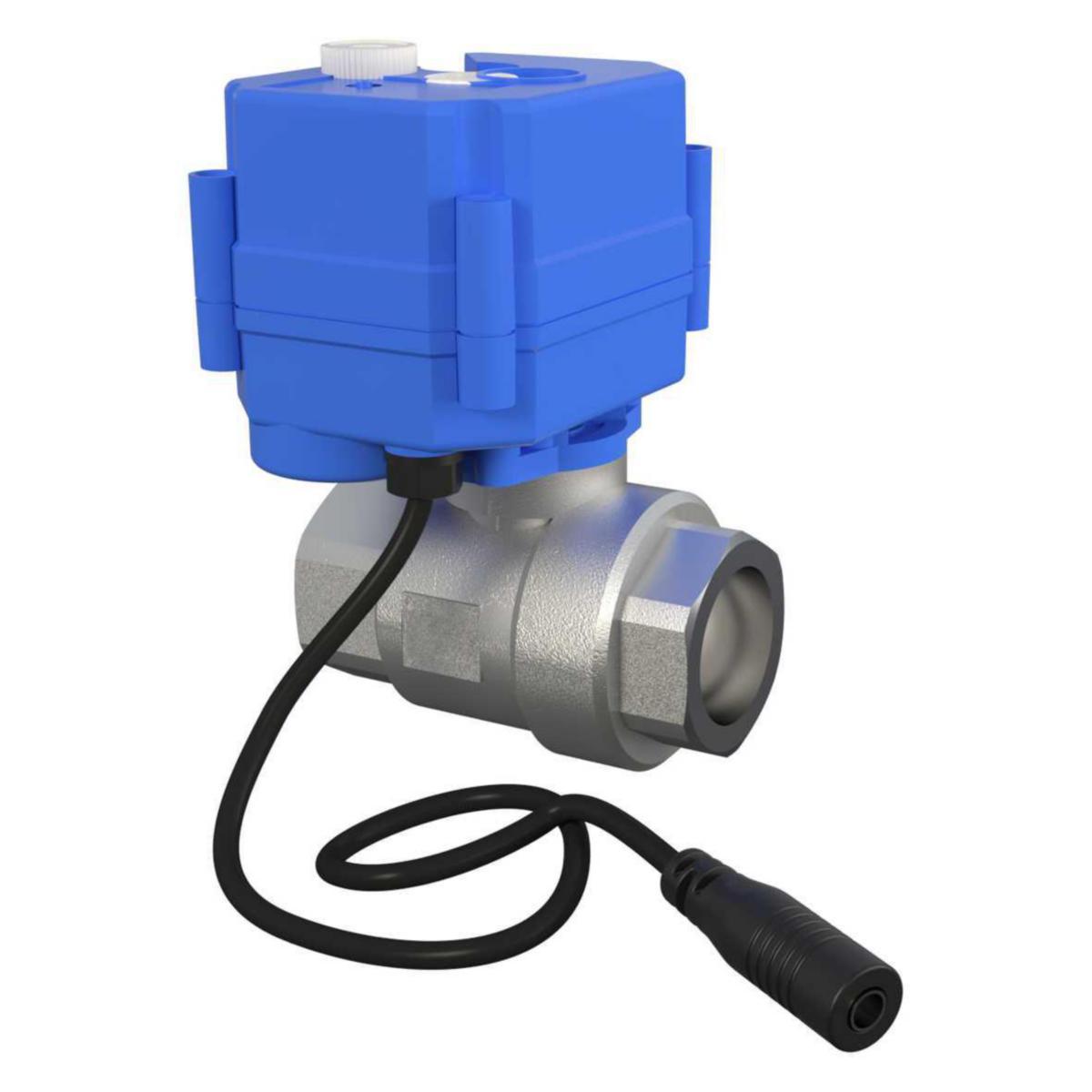

Ball valve Water valve 12V, LK
WATER VALVE 12V 3/4" LK SYSTEMS
Article number: Suppl. article no:
4810018
4810018
to see price and stock
LK Water valve 12 V is available in three versions: G15, G20 and G25 with internal thread. The motor has an emergency opening knob and a position indication. Opening 12 V direct current and closing occurs automatically in the event of voltage failure.
The valve is made of SS304 stainless steel.
For easy connection, the LK AC Adapter 12 V is available as an accessory (RSK 188 25 50).
If the LK WSS Main Unit is to be supplemented with additional valves, the LK Motor Valve 12 V WSS shall be used.
The valve is made of SS304 stainless steel.
For easy connection, the LK AC Adapter 12 V is available as an accessory (RSK 188 25 50).
If the LK WSS Main Unit is to be supplemented with additional valves, the LK Motor Valve 12 V WSS shall be used.
- Article number: 4810018
- Suppl. article no: 4810018
- Ean no: 7331590054825
- Material class PAM12B
Technical data
- Packagin Size: 1 ST/24 ST
- Nominal diameter connection 1: 3/4 inch (20)
- Nominal diameter connection 2: 3/4 inch (20)
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Housing material: Stainless steel
- Medium temperature (continuous): 0-70 °C
- Surface protection housing: None
- Fire-safe: No
- FM quality mark: No
- Grease-free: No
- Full bore: Yes
- Housing construction: 2-part
- LPCB quality mark: No
- Material ball: Stainless steel
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material primary spindle seal: Ethylene-propylene diene monomer rubber (EPDM)
- Material secondary spindle seal: NBR (nitrile rubber)
- Material quality: Stainless steel 304 (1.4301)
- Max. pressure difference at 20 °C: 10 bar
- With coupling connection 1: No
- With coupling connection 2: No
- Medically clean: No
- Model: Straight
- Material spindle: Stainless steel
- Sealing: Metal-sealing
- UL quality mark: No
- ULC quality mark: No
- Operation: Electric motor
- REACH Date: 2021-06-15
- REACH Information obligation: No
