Valve manifold AVI 1710-S, a-collection

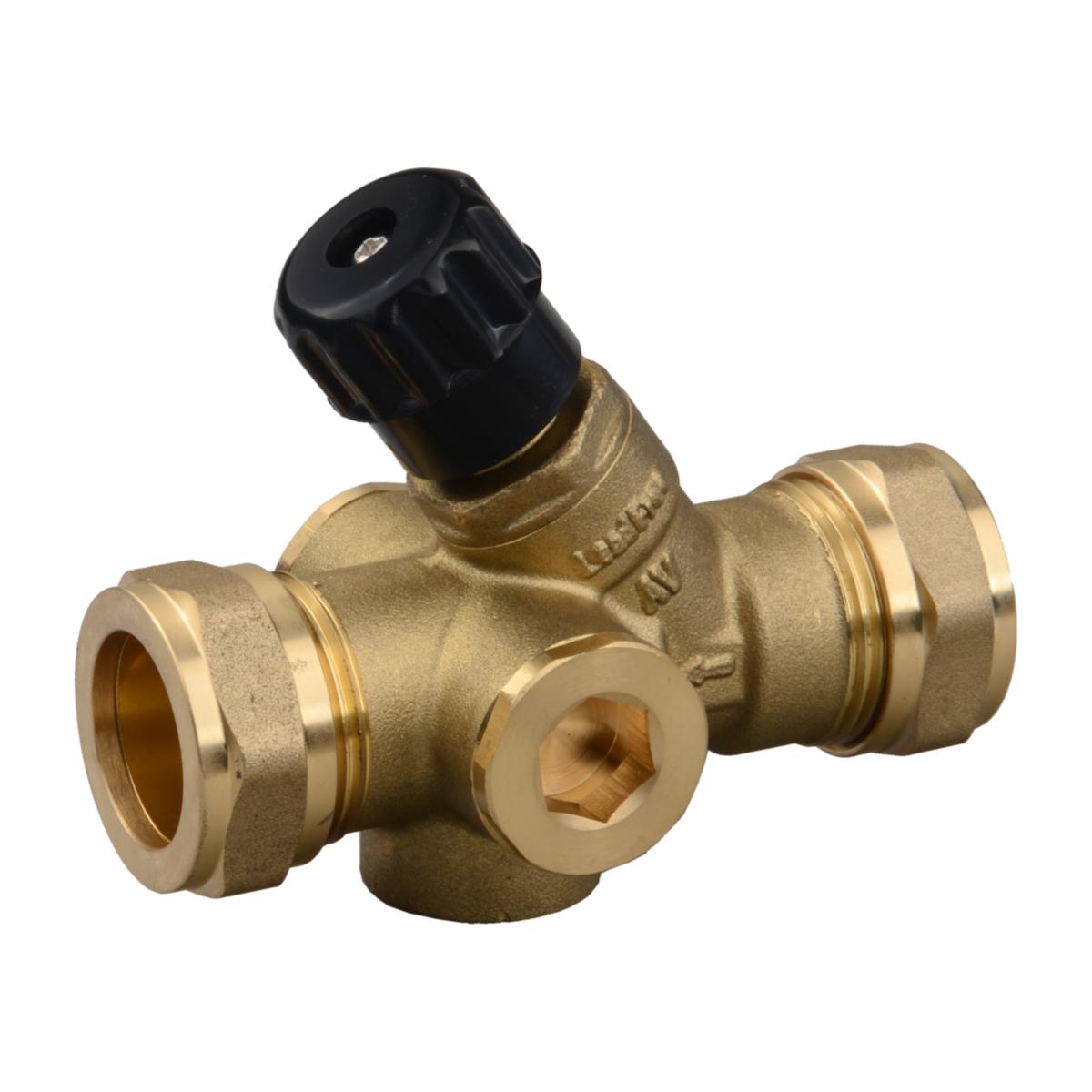

VALVE MANIFOLD AVI 1710-S LEAD FREE G15/15MM PN10
Article number: Suppl. article no:
4294006
4294006
to see price and stock
Lead-free valve pipe in angle seat design, brass with max. 0.10% lead content, with shut-off valve and check valve, with 3 connections for e.g. safety valve, vacuum valve and drain valve. Max temperature 100 °C.
- Article number: 4294006
- Suppl. article no: 4294006
- Ean no: 7333123052810
- Material class PIC020
- This is an alternative to item 4311067
Technical data
- Packagin Size: 1 PCS/30 PCS
- Outer pipe diameter all connections: 15 mm
- Connection: Compression ring
- Article compression class: PN 10
- With compression set: Yes
- With couplers: Yes
- Housing material: Brass
- Nominal diameter: DN 15
- REACH Date: 2025-05-09
- REACH Information obligation: No
