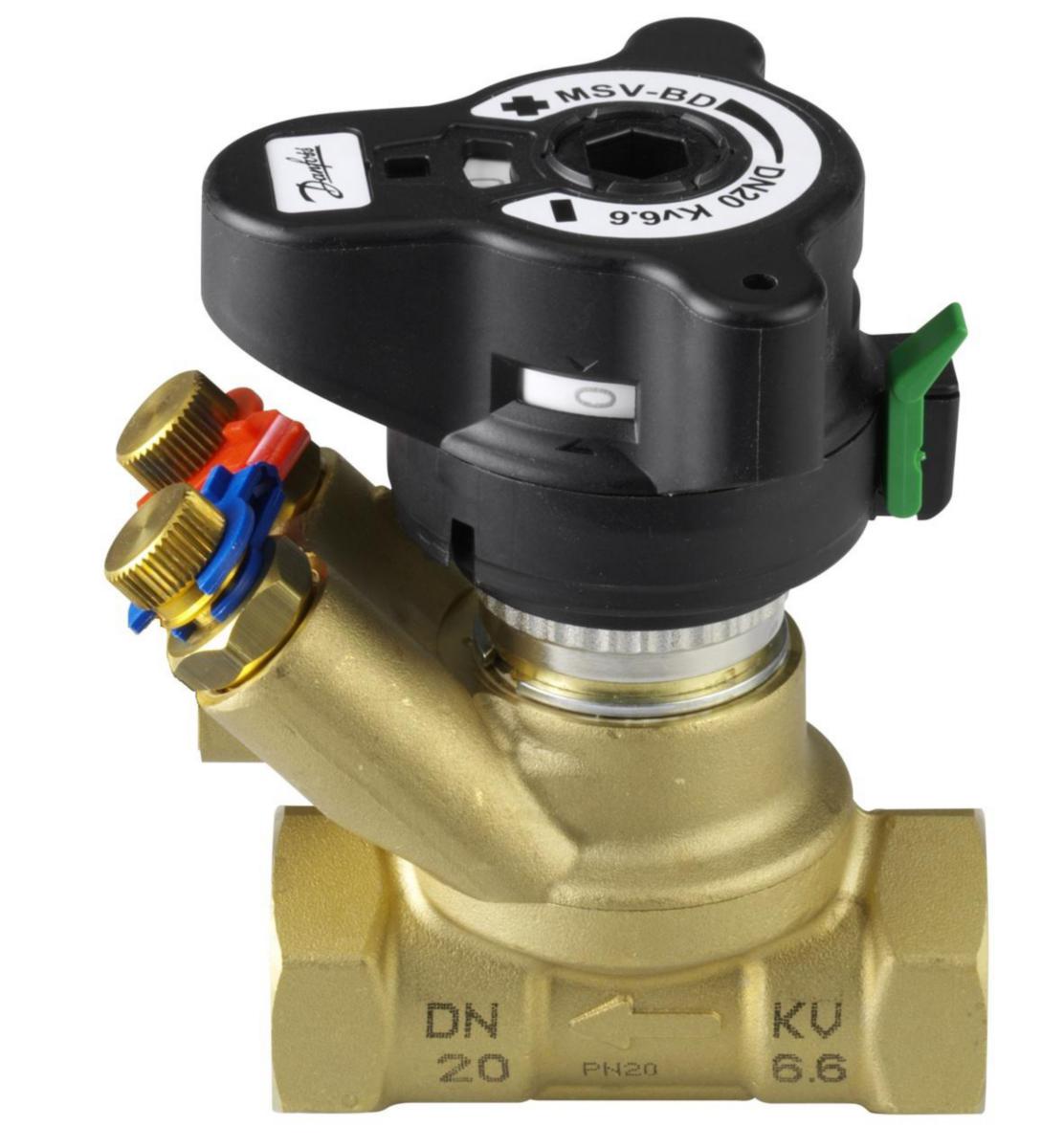

Main valve LENO™ MSV-BD, Danfoss
20 MSV-BD KVS 6.6 DANFOSS BALANCING VALVE
Article number: Suppl. article no:
4893096
003Z4002
to see price and stock
Combined adjustment and shut-off valve for heating and cooling plants.
- Article number: 4893096
- Suppl. article no: 003Z4002
- Ean no: 5702420084800
- Material class PIE110
Technical data
- Packagin Size: 1 ST/10 ST
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter: DN 20
- Article compression class: PN 20
- With drain valve: Yes
- With measuring nipples: Yes
- Medium temperature (continuous): -10-120 °C
- Suitable for tap water: No
- Suitable for central heating water: Yes
- Suitable for hot tap water: No
- Suitable for manual operation: Yes
- With extended measuring nipples: No
- With impulse pipe connection: No
- With position indicator: Yes
- With measuring connector: Yes
- Material quality: CuZn36Pb2As (CW602N)
- Kvs value: 6.6
- With thermometer: No
- Surface protection: Untreated
- With coupling connection 1: No
- With coupling connection 2: No
- Thermostatic: No
- Housing material: Brass
- Length of connection 1: 75 mm
- Length of connection 2: 75 mm
- Hydraulic balance control: Static
- Spindle angle: 90 °
- Preset sealable/lockable: Yes
- With insulation: No
- Kv value: 0.13-6.6
- Measurement principle: Pressure difference
- REACH Date: 2022-12-15
- REACH contains candidate substances: Bly
- Type: MSV-BD
- Design: Normal flow
- REACH Information obligation: Yes
