Danfoss

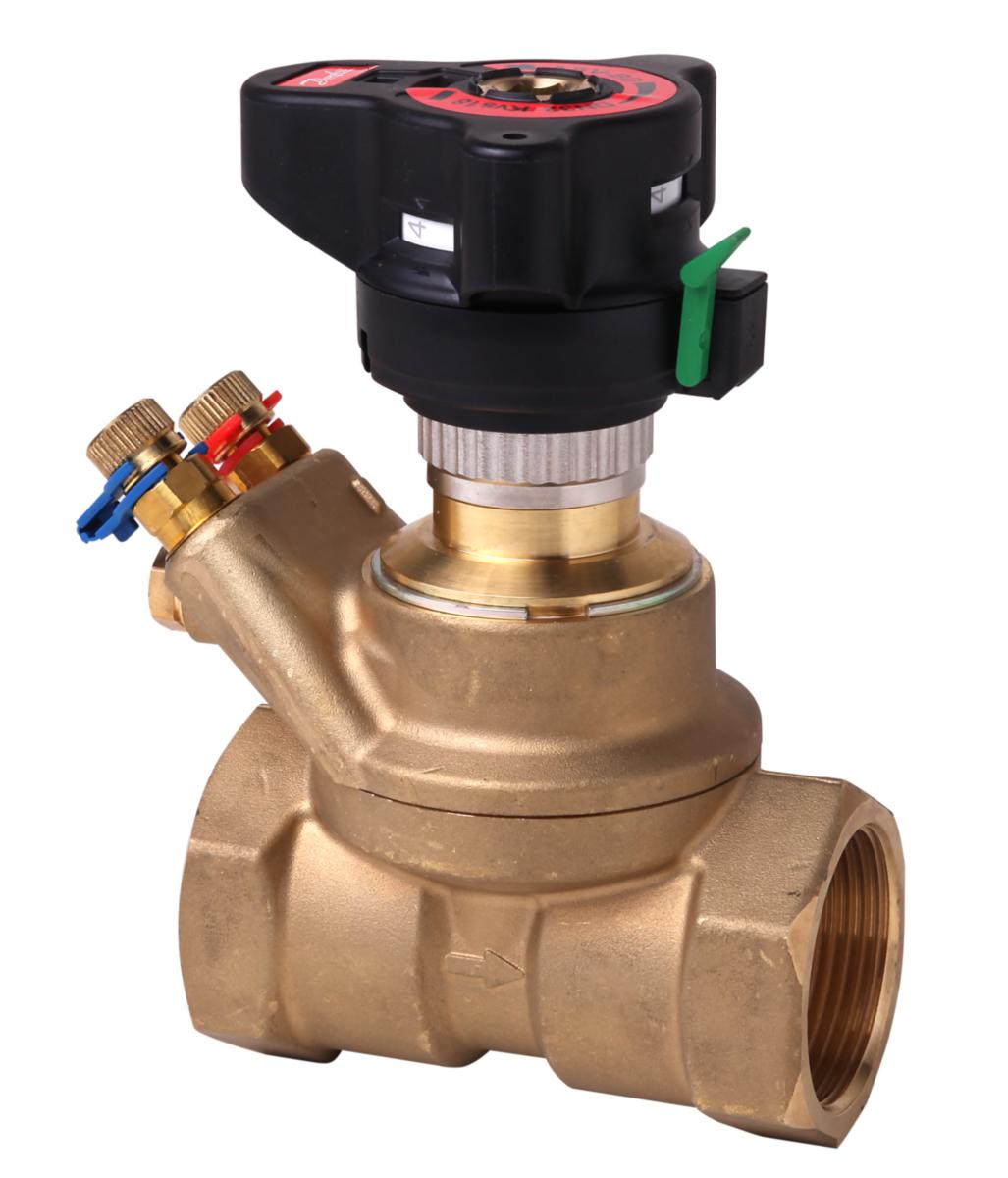

Partner valve ASV-BD, Danfoss
32 ASV-BD TVS 18.0 DANFOSS PARTNER VALVE FEMALE
Article number: Suppl. article no:
5400916
003Z4044
to see price and stock
- Article number: 5400916
- Suppl. article no: 003Z4044
- Ean no: 5702420114682
- Material class PIE140
Technical data
- Packagin Size: 1 ST/6 ST
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter: DN 32
- Article compression class: PN 20
- With drain valve: No
- With measuring nipples: Yes
- Medium temperature (continuous): -20-120 °C
- Suitable for tap water: No
- Suitable for central heating water: Yes
- Suitable for hot tap water: No
- Suitable for manual operation: Yes
- With extended measuring nipples: No
- With impulse pipe connection: Yes
- With position indicator: Yes
- With measuring connector: Yes
- Kvs value: 18
- With thermometer: No
- Surface protection: Untreated
- Height operating element: 121 mm
- Motor-controlled: No
- Thermostatic: No
- Housing material: Brass
- Working length connection 1: 95 mm
- Length of connection 1: 95 mm
- Hydraulic balance control: Static
- Spindle angle: 90 °
- Preset sealable/lockable: Yes
- With insulation: Yes
- Kv value: 0.5-18
- Max. pressure difference at 20 °C: 2.5 bar
- Measurement principle: Pressure difference
- REACH Date: 2023-05-08
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
