MMA

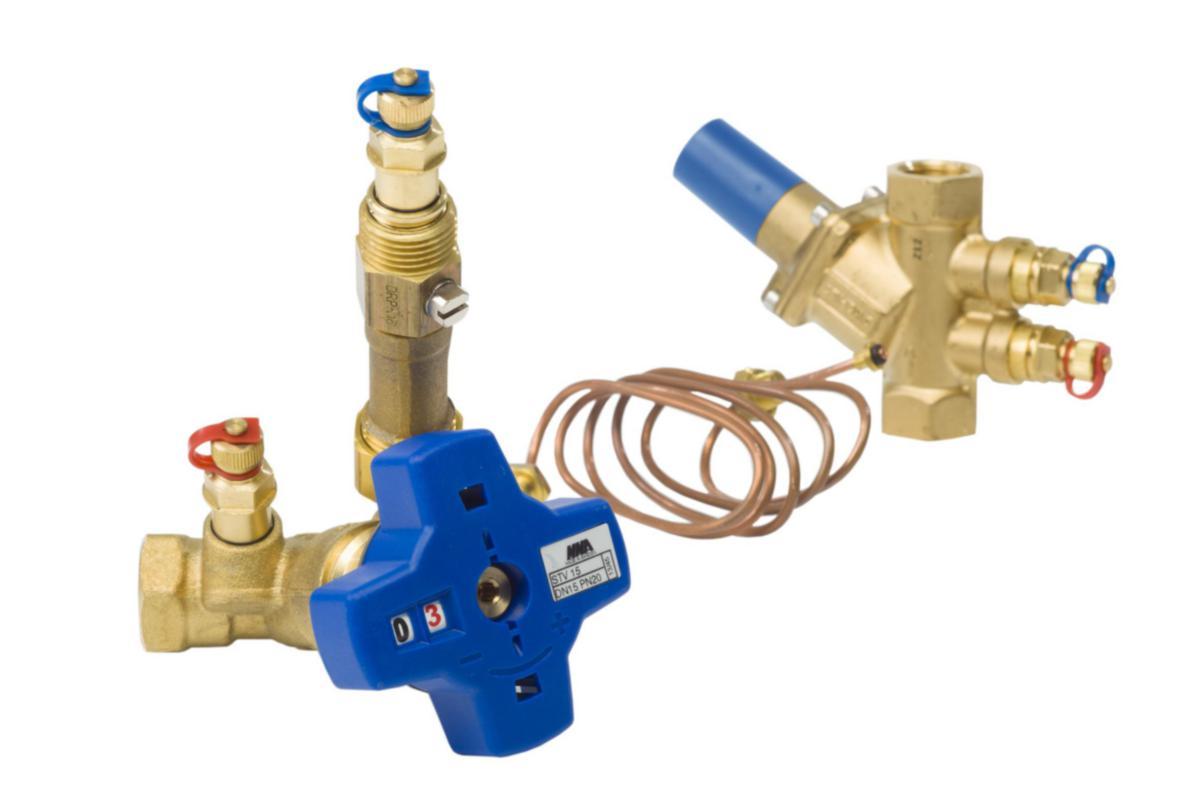

Differential pressure package PVM, STV MMA
25 PVM 5-30 KPA INCL. STV DIFF pressure KIT PVM MMA
Article number: Suppl. article no:
4907055
9001450
to see price and stock
PMV differential pressure kit is used in secondary heating and cooling systems. The package consists of a differential pressure valve (PV) and a balancing valve (STV) and a shut-off valve so that the circuit to-and return line can be closed. Pressure class: PN20(STV)/PN25(PV)
- Article number: 4907055
- Suppl. article no: 9001450
- Ean no: 7330580008732
- Material class PIE120
Technical data
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter: 1 inch (25)
- Article compression class: PN 20
- With measuring nipples: Yes
- Medium temperature (continuous): -10-120 °C
- Kv value: 5-30
- Type: PVM 25
- Design: Internal thread
