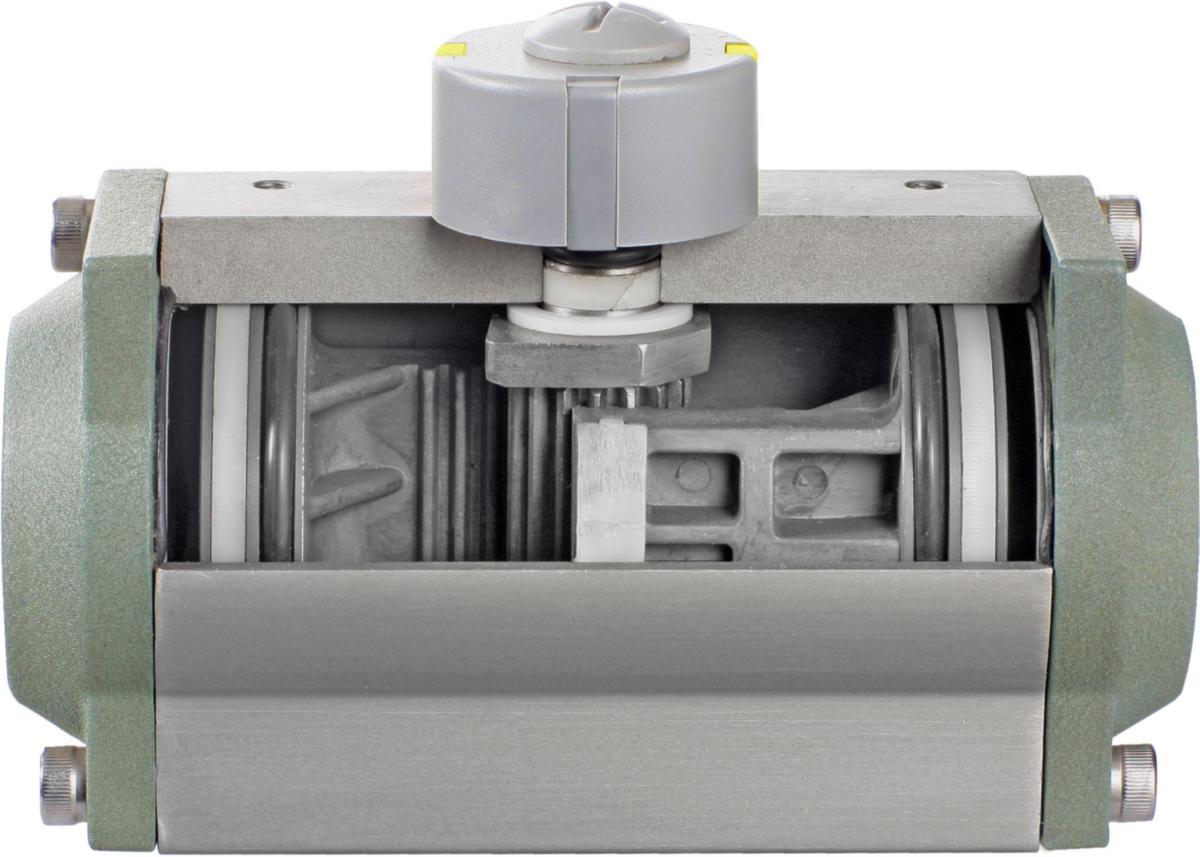

Pneumatic Actuator Double Acting AVi 2300, a-collection
ACTUATOR PNEUM F10/F12 27MM AVI 2300 DOUBLE ACTING HTD-140
Article number:
4659487
to see price and stock
Double-acting pneumatic actuator, connections according to ISO 5211/DIN 3337 for valve fitting.
Solenoid valve interface, the upper part of the shaft top and top bore, for mounting accessories complying with the standard VDI/VDE-3845, NAMUR.
Solenoid valve interface, the upper part of the shaft top and top bore, for mounting accessories complying with the standard VDI/VDE-3845, NAMUR.
- Article number: 4659487
- Ean no: 07350027279501
- Material class PIP010
- This is an alternative to item 78688577
Technical data
- Spring return: No
- Design: Double acting, ISO5211/DIN3337
- Torque: 554.2 Nm
- Housing material: Aluminium
- Air supply connection: NAMUR
- Mounting flange connection: ISO 5211
- Top flange connection: NAMUR
- Auxiliary contacts: No
- Adjustable operating range: Yes
- Degree of protection (IP): IP65
- Type: HTD 140
- Max. angle of rotation: 90 °
- With end contacts: No
- Model: Rotating
- Ambient temperature: 0-120 °C
- Suitable for manual operation: Yes
- Material: Aluminium
- Nm 6 bar: 554,2
