Beulco

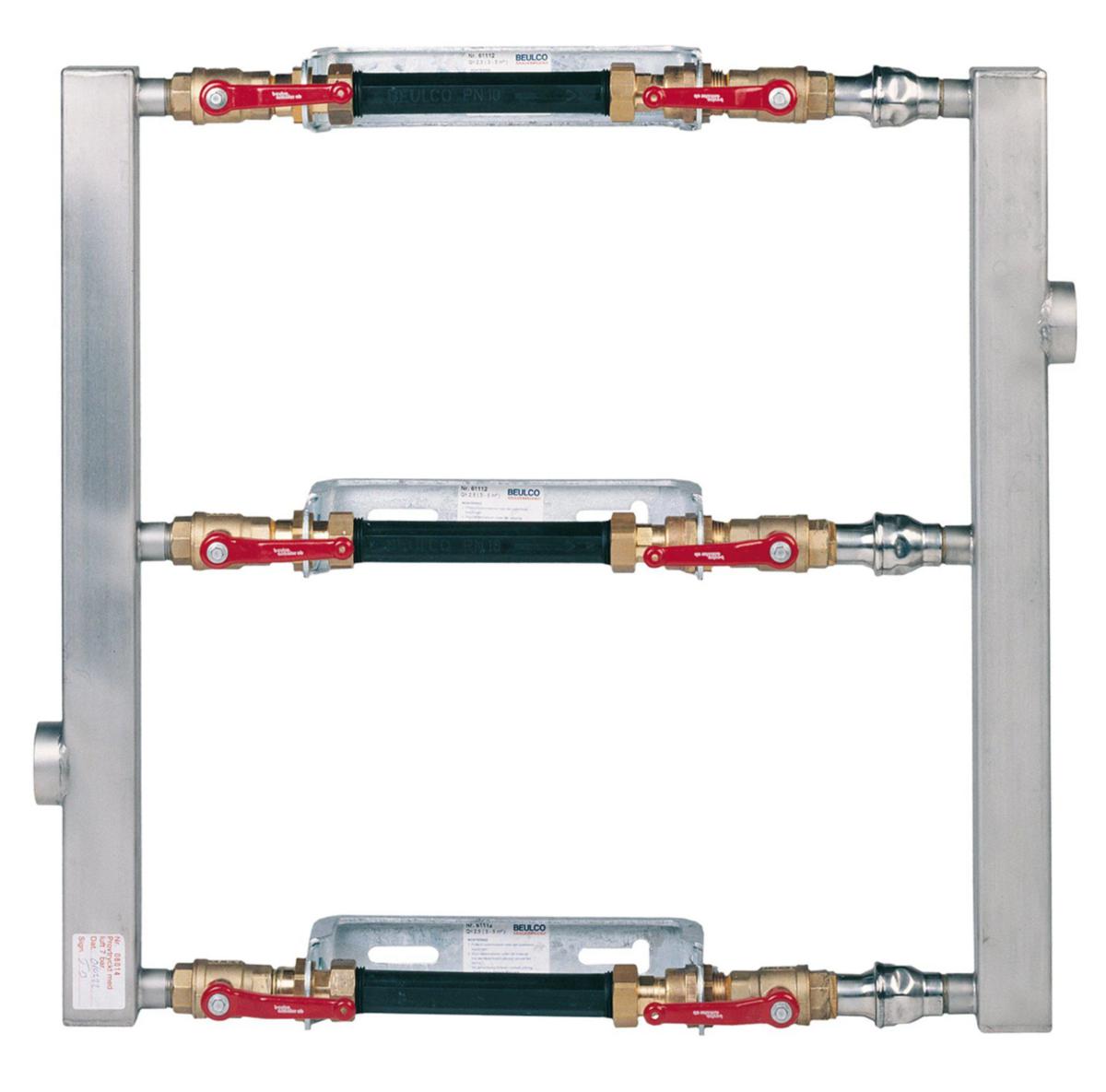

Water meter brackets parallel-connected with controllable check valve, Beulco
WATER METER CONS PARALLEL G40 3X190-220MM APPARTMENT METER
Article number: Suppl. article no:
5208050
0232510001
to see price and stock
- Article number: 5208050
- Suppl. article no: 0232510001
- Ean no: 7331807017742
- Material class PIU130
Technical data
- Connection 1: Internal thread
- Connection 2: Internal thread
- Nominal diameter connection 1: 1 1/2 inch (40)
- Mounting direction: Horizontal
- Nominal diameter connection 2: 1 1/2 inch (40)
- Suitable for number of water meters: 3
- Height: 0-650 mm
- Suitable for water meter length: 190-220 mm
- Material bracket: Stainless steel
- Model water meter: Qn 2.5
- Length: 760 mm
- Material valve: Dezincification resistant brass (DZR)
- With shut-off valve: Yes
- Surface protection bracket: Untreated
- Type of shut-off valve: Ball valve
- Lockable: No
- REACH Date: 2025-03-27
- REACH contains candidate substances: Bly
- Design: 3 gauge
- REACH Information obligation: Yes
