Water meter coupling Beulco

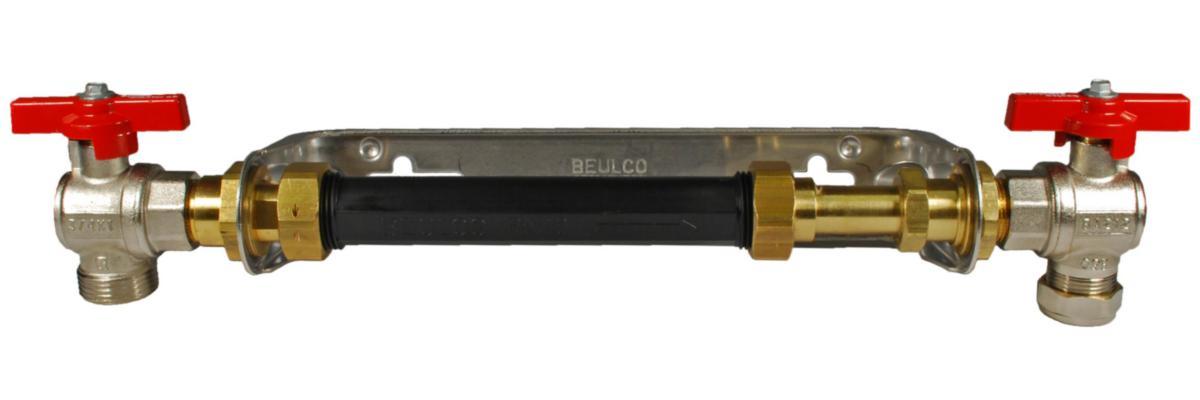

WATER METER CONSOLE 190-220MM COMPL. W/VALVES PRESSURE TEST
Article number: Suppl. article no:
5207908
0250011005
to see price and stock
With gauge valve and ball valves.
- Article number: 5207908
- Suppl. article no: 0250011005
- Ean no: 7331807018077
- Material class PIU130
Technical data
- Packagin Size: 1 ST/100 ST
- Connection 1: External thread
- Connection 2: Compression ring
- Nominal diameter connection 1: DN 25
- Mounting direction: Horizontal
- Nominal diameter connection 2: Other
- Suitable for number of water meters: 1
- Suitable for water meter length: 190-220 mm
- Material bracket: Stainless steel
- Model water meter: Qn 2.5
- Length: 400 mm
- Material valve: Dezincification resistant brass (DZR)
- With shut-off valve: Yes
- Surface protection bracket: Untreated
- Type of shut-off valve: Ball valve
- Lockable: No
- Outer pipe diameter connection 2: 22 mm
- Outer pipe diameter connection 1: 25 mm
- REACH Date: 2021-10-29
- Design: Mounted
- REACH Information obligation: No
