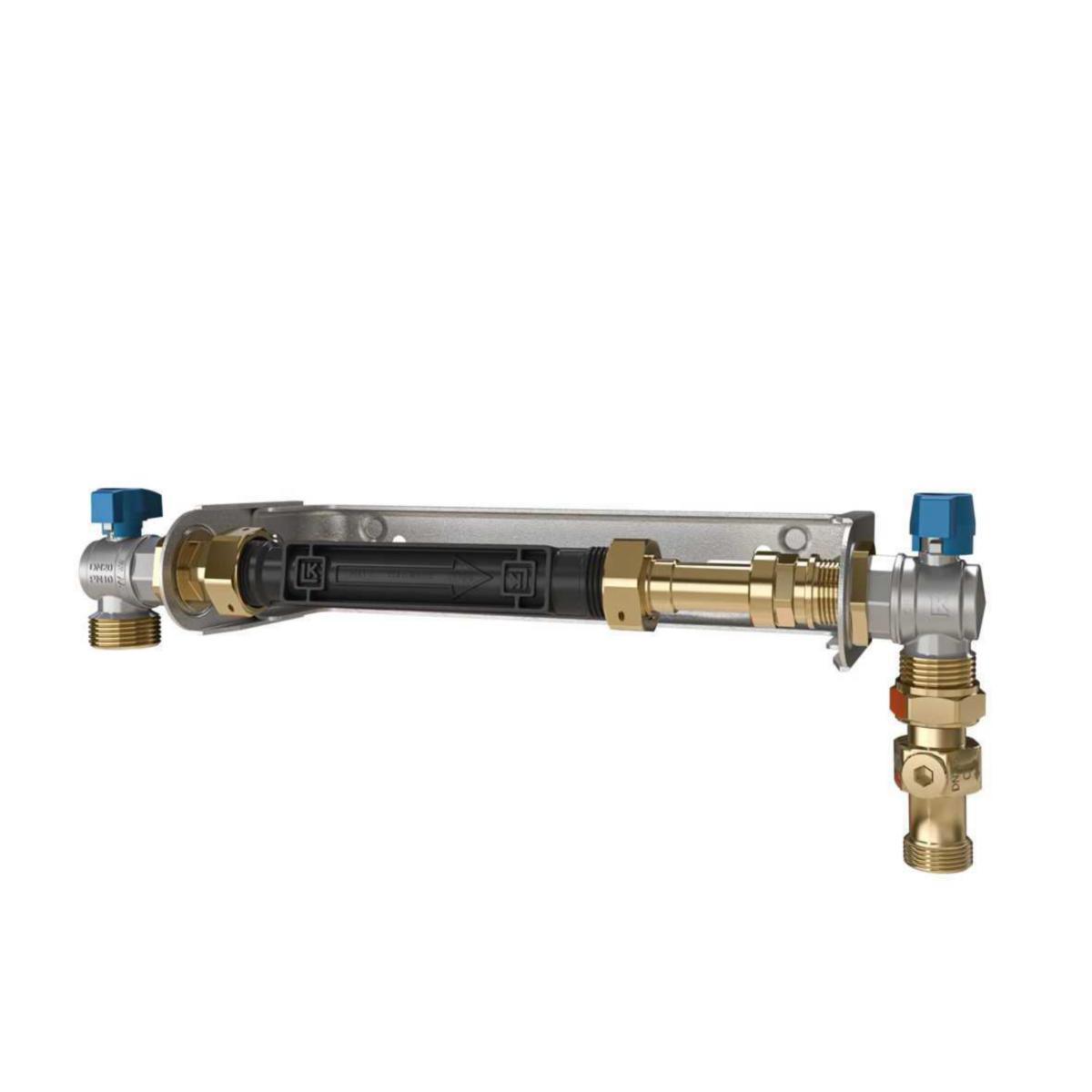

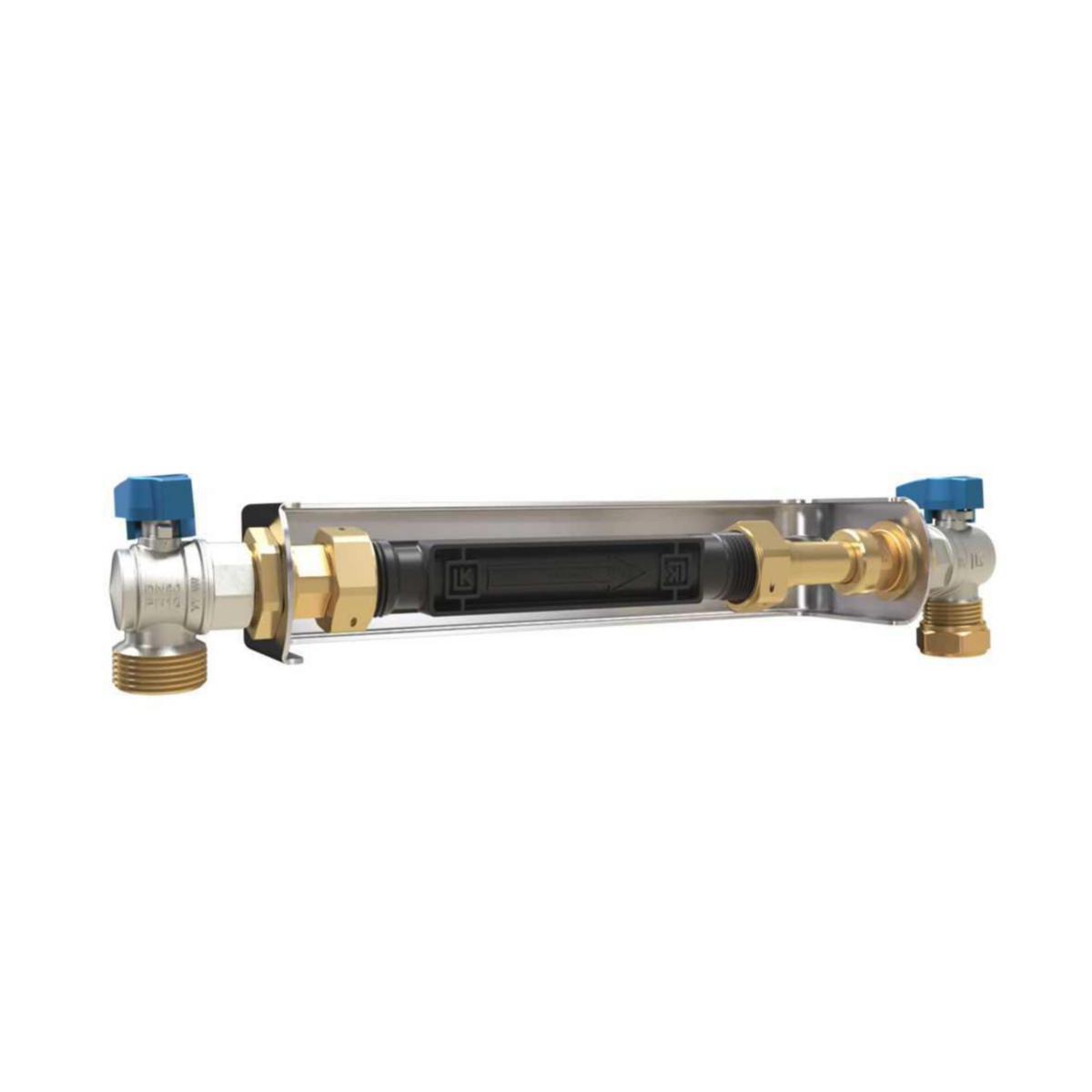

Water meter console package VKP F190-220 V, LK
LK WBP F190-220 A WATER METER BRACKET PACKAGE
Article number: Suppl. article no:
4648110
4648110
to see price and stock
LK Water meter console Package is available in many variants with consoles of 190mm and 190-220mm.
The packages are delivered complete with valves, fitting, gaskets and bracket.
There are also variants with non-return valve.
F = Fixed measurement from wall (83mm)
J = Adjustable measurement from wall (90-134mm)
S = Customized measurement for LK water meter cabinet
V = Angle valves on both sides
VB = Angle valves plus non-return valve
The packages are delivered complete with valves, fitting, gaskets and bracket.
There are also variants with non-return valve.
F = Fixed measurement from wall (83mm)
J = Adjustable measurement from wall (90-134mm)
S = Customized measurement for LK water meter cabinet
V = Angle valves on both sides
VB = Angle valves plus non-return valve
- Article number: 4648110
- Suppl. article no: 4648110
- Ean no: 7331590062325
- Material class PIU130
Technical data
- Connection 1: External thread
- Connection 2: Compression ring
- Nominal diameter connection 1: 1 inch (25)
- Mounting direction: Horizontal and vertical
- Suitable for number of water meters: 1
- Height: 83 mm
- Suitable for water meter length: 190-220 mm
- Material bracket: Stainless steel
- Model water meter: Qn 2.5
- Length: 425 mm
- Material valve: Dezincification resistant brass (DZR)
- With shut-off valve: Yes
- Surface protection bracket: Untreated
- Type of shut-off valve: Ball valve
- Lockable: No
- Outer pipe diameter connection 2: 22 mm
- Size of gland nut thread connection: 1 inch (25)
- Depth: 89 mm
- REACH Date: 2022-11-28
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
