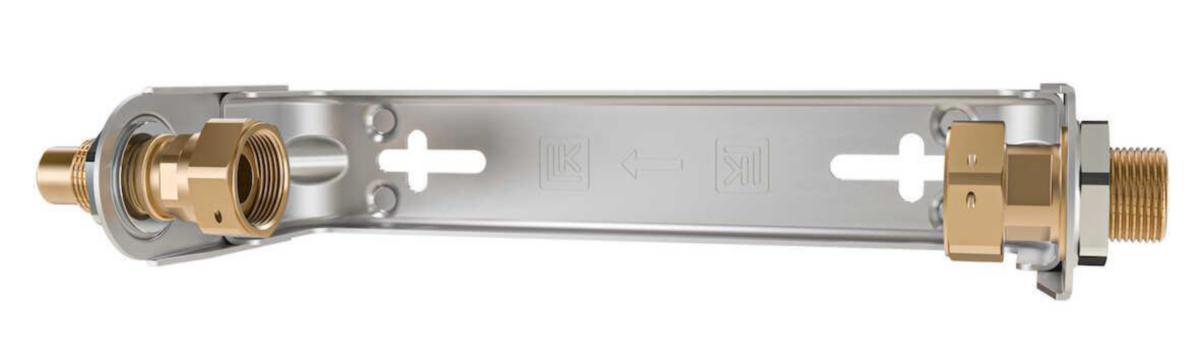

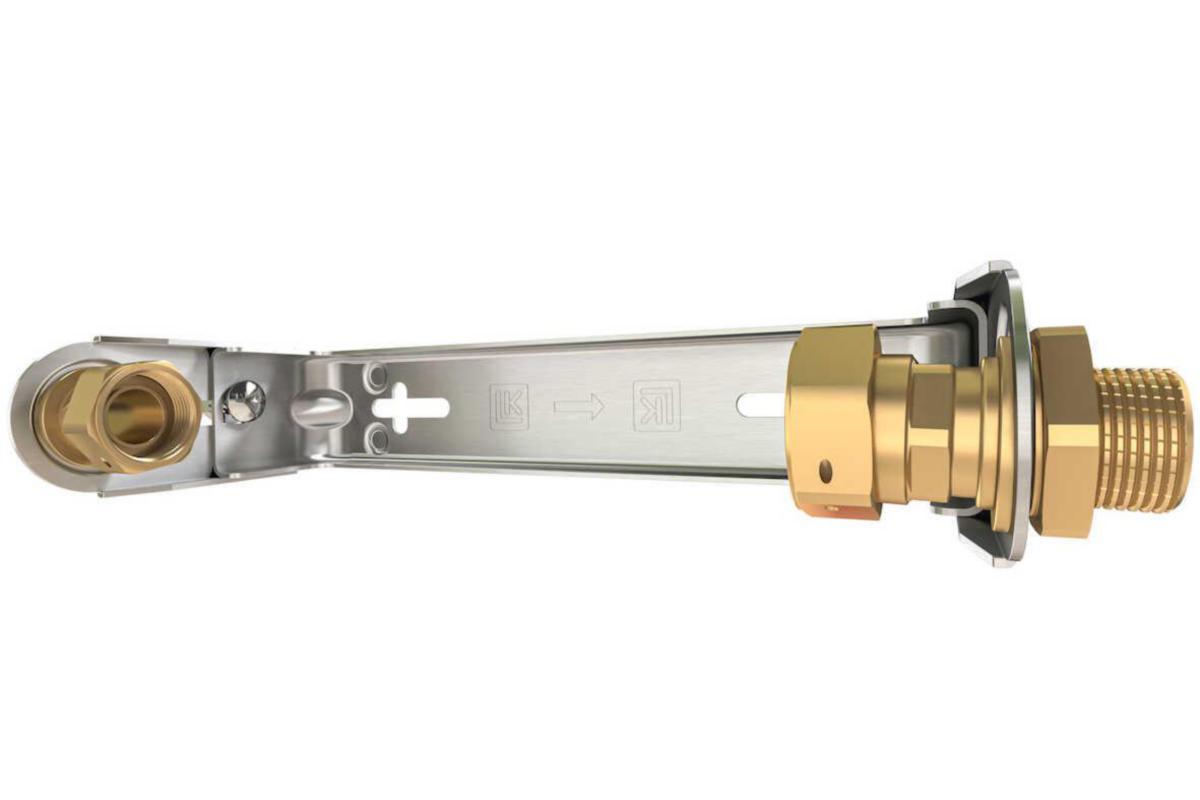

Water meter bracket J190-220, LK
WATER METER BRACKET J190-220 LK
Article number: Suppl. article no:
4648081
4648081
to see price and stock
LK Water meter console is available in five different variants and is made of stainless steel.
F = Fixed measurement from wall (83mm)
J = Adjustable measurement from wall (90-134mm)
S = Adapted dimension for LK water meter cabinet
F = Fixed measurement from wall (83mm)
J = Adjustable measurement from wall (90-134mm)
S = Adapted dimension for LK water meter cabinet
- Article number: 4648081
- Suppl. article no: 4648081
- Ean no: 7331590059745
- Material class PIU130
Technical data
- Connection 1: External thread
- Connection 2: External thread
- Nominal diameter connection 1: 3/4 inch (20)
- Mounting direction: Horizontal and vertical
- Nominal diameter connection 2: 3/4 inch (20)
- Suitable for number of water meters: 1
- Height: 90-134 mm
- Suitable for water meter length: 190-220 mm
- Material bracket: Stainless steel
- Model water meter: Qn 2.5
- Length: 351 mm
- With shut-off valve: No
- Surface protection bracket: Untreated
- Size of gland nut thread connection: 1 inch (25)
- Depth: 61 mm
- REACH contains candidate substances: Bly
- REACH Date: 2025-06-25
- REACH Information obligation: Yes
