Water meter coupling 190-220 mm, lead-free, a-collection
WATER METER CONSOLE 190-220MM G25X22MM LEADFREE, CHECKVALVE
Article number:
4647956
to see price and stock

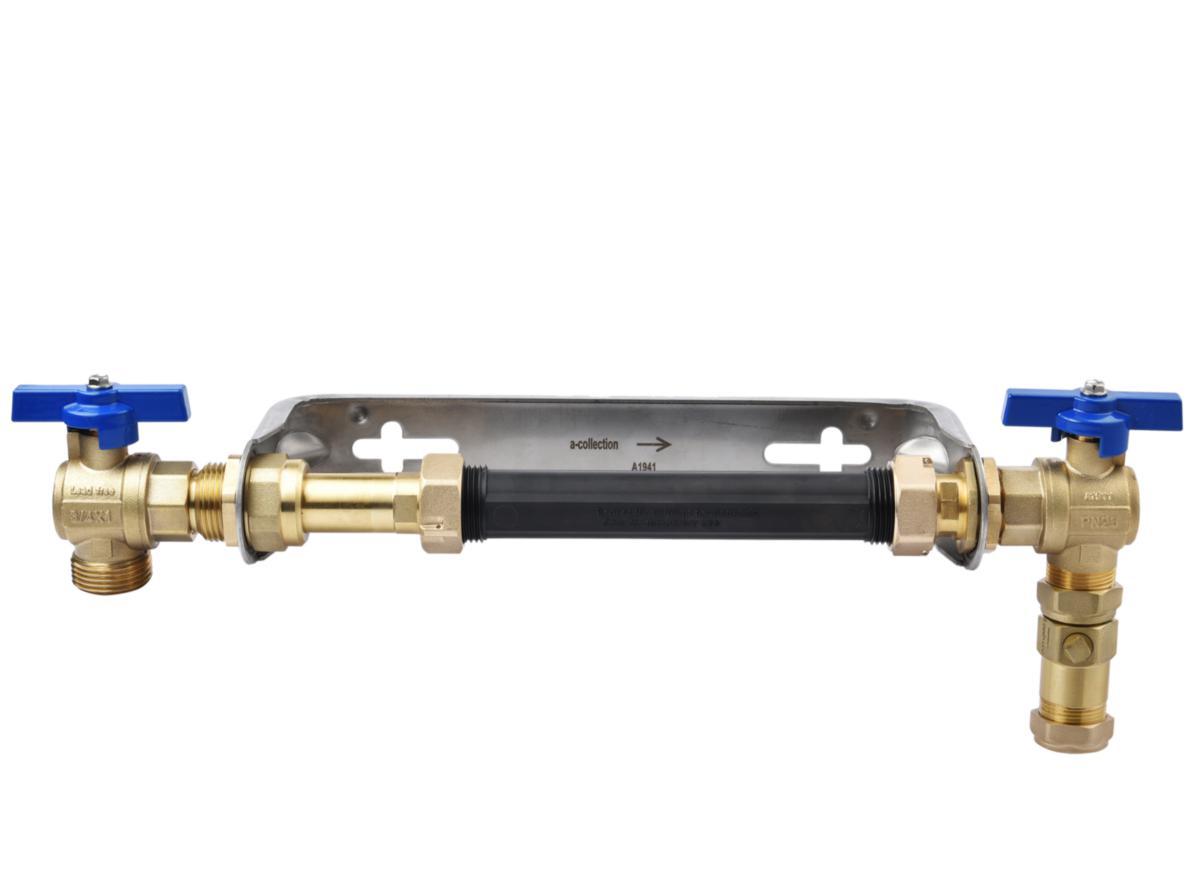

Water meter console, complete kit in lead-free brass with connection pipe, angular ball valves and controllable
check valve according to EN1717, 1 pcs angle ball valve G20x22mm, 1 pcs angle ball valve G20XG25, connection pipe in pp plastic. Screws and plugs. Stainless steel bracket. Used for water meters Q3-4 m3 / h (previously
Qn 2,5)
check valve according to EN1717, 1 pcs angle ball valve G20x22mm, 1 pcs angle ball valve G20XG25, connection pipe in pp plastic. Screws and plugs. Stainless steel bracket. Used for water meters Q3-4 m3 / h (previously
Qn 2,5)
- Article number: 4647956
- Ean no: 7333123050069
- Material class PIU041
- This is an alternative to item 1882359
Technical data
- Packagin Size: 1 ST/10 ST
- Connection 1: External thread
- Connection 2: Compression ring
- Nominal diameter connection 1: 1 inch (25)
- Mounting direction: Horizontal
- Nominal diameter connection 2: DN 20
- Suitable for number of water meters: 1
- Suitable for water meter length: 190-220 mm
- Material bracket: Stainless steel
- Model water meter: Qn 3.5
- Material valve: Brass
- With shut-off valve: Yes
- Surface protection bracket: Untreated
- Type of shut-off valve: Ball valve
- Lockable: No
- Outer pipe diameter connection 2: 22 mm
- Size of gland nut thread connection: 1 inch (25)
- GWP-tot (A1-A3): 18,7703 kgCO2e/ST
